Xerox Phaser 6180 - Neutralization

2-12 Phaser 6180 Color Laser Printer Service Manual
Theory of Operation
Neutralization

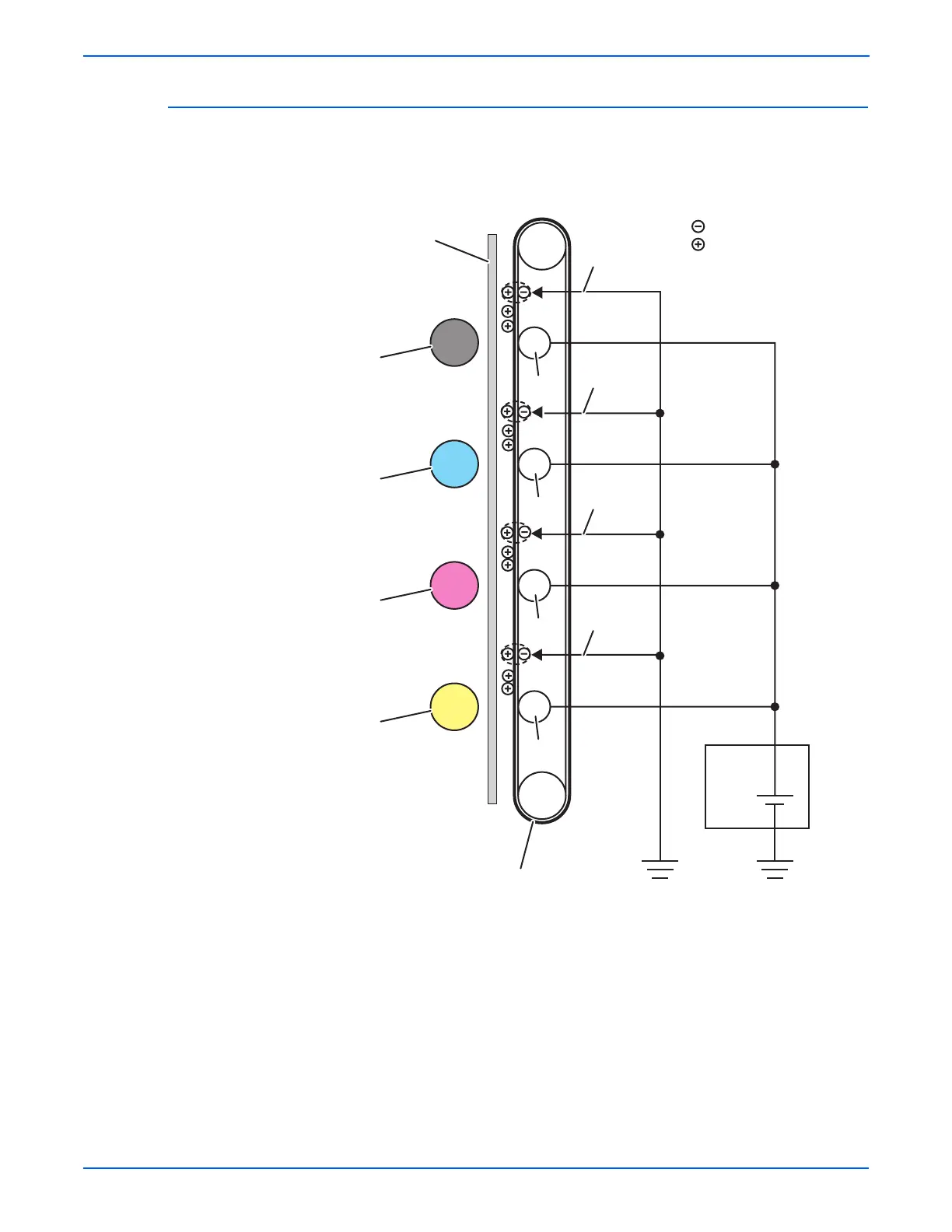

The Detack Saw neutralizes the charge on the paper via the Belt.
The Detack Saw, a metal sheet secured at the ground level, is installed at
several millimeters away from the back side of the belt.
s6180-142
Negative Electric Charge
Positive Electric Charge
Paper
Drum
Drum
Drum
Drum
Detack Saw
Detack Saw
Detack Saw
Detack Saw
K
C
M
Y
BTR
BTR
BTR
BTR
HVPS
Transfer Unit
