Service Parts Disassembly

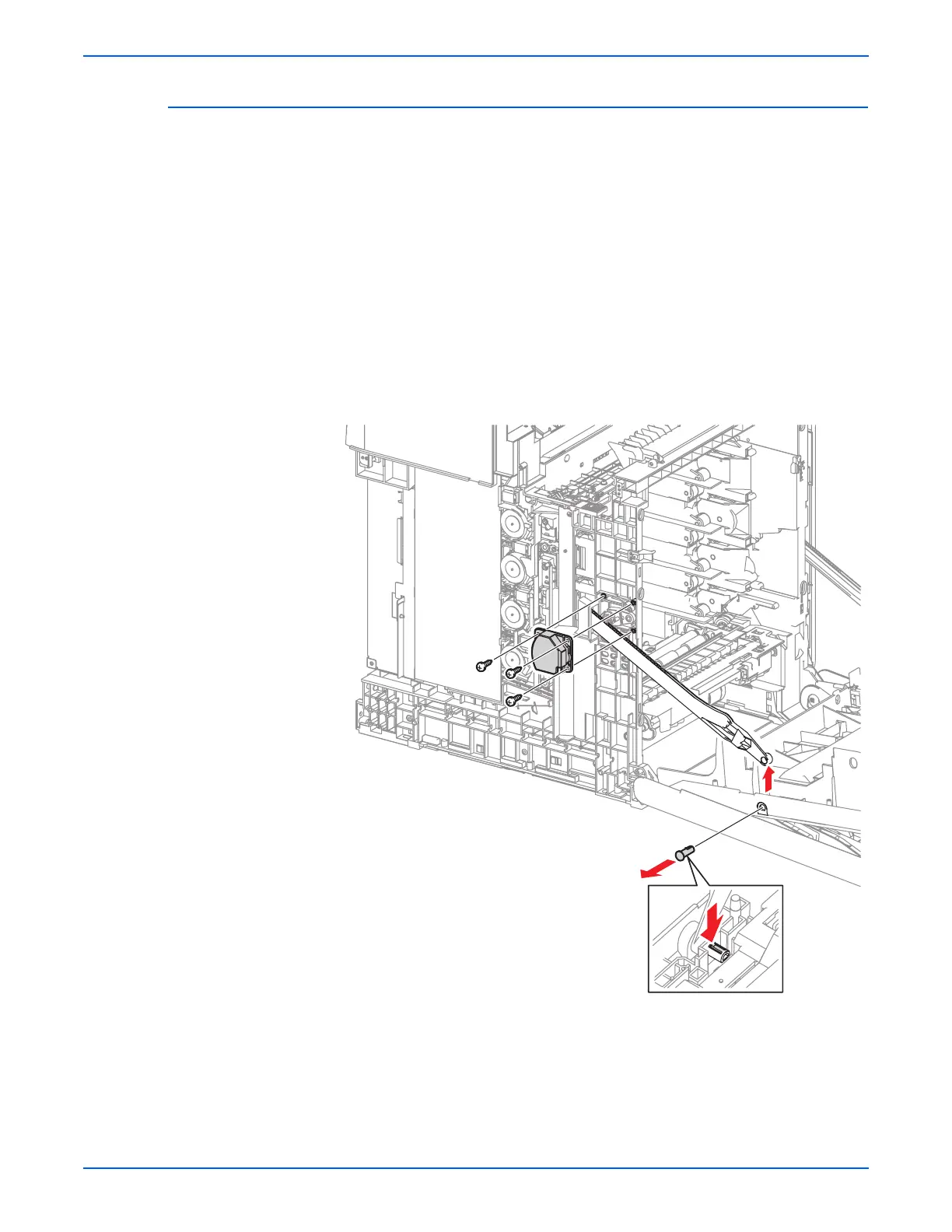

Left Link (PL7.1.3)
1. Remove the Rear Cover (page 8-11).
2. Remove the Left Side Cover (page 8-13).
3. Release the hook of the Shaft Pivot (PL1.2.8) securing the Left Link and
remove the Shaft Pivot.
4. Remove the Left Link from the Front Cover.
5. Remove 3 screws (8 mm) securing the Left Support Link (PL7.1.2) to the
printer.
Caution
The Support Spring may come loose when removing the Left Support
Link. Cover the area with your hand to prevent the Support Spring from
coming loose.
6. Remove the Left Support Link.
s6180-040
