Theory of Operation
Paper Path of the Printer
Paper Path Route

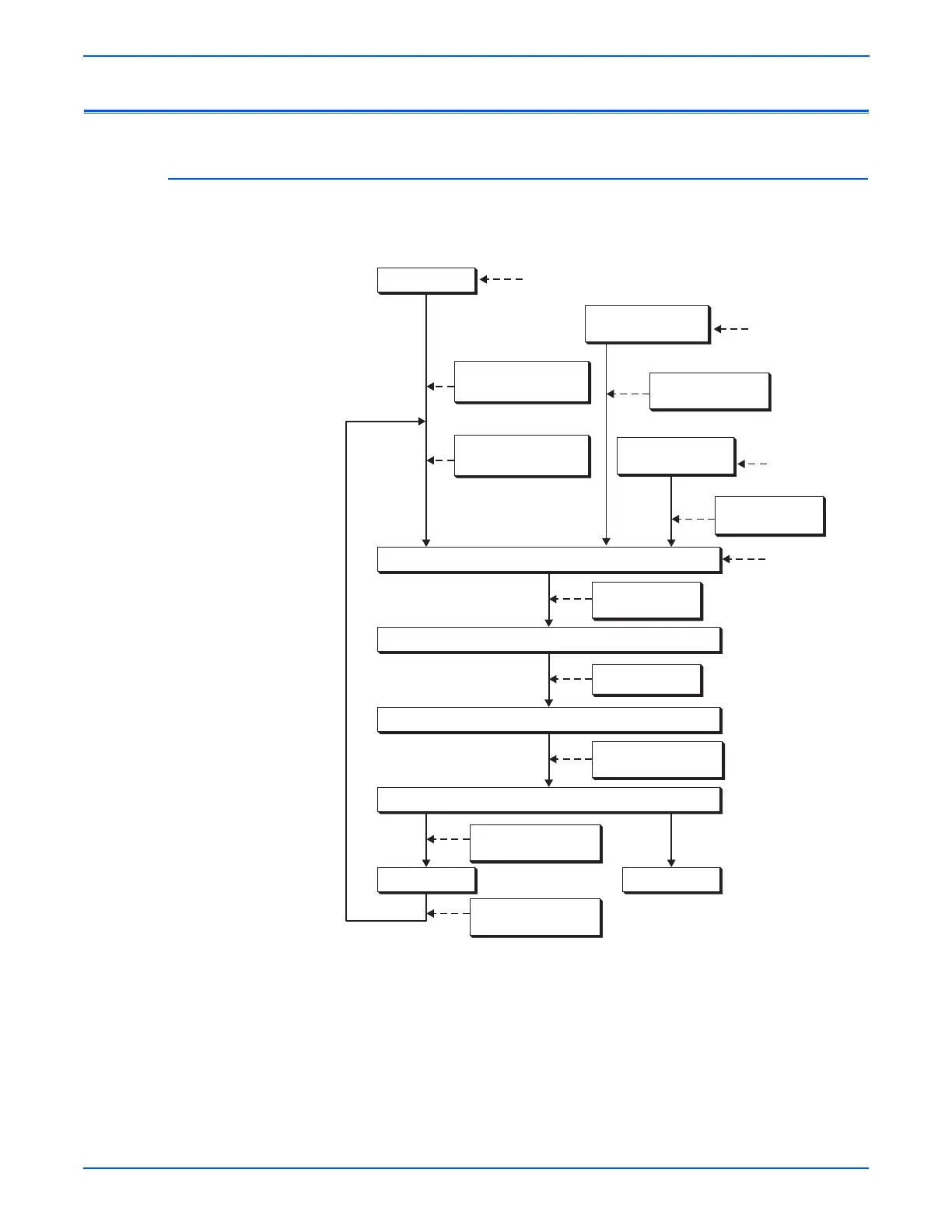

The paper is supplied from Tray 1, 2, or optional Tray 3, and is transported into
the printer along the paper path as shown in the diagram.
s6180-144
Tray 1 (MPT)
Multiple Sheet Feed
Prevention
Multiple
Sheet Feed
Prevention
Multiple
Sheet Feed
Prevention
550-Sheet Feeder
(Tray 3)
Motor Drive/Solenoid/
MPT Roll
Turn Roll
Motor Drive/Clutch/
Feed Roll/Turn Roll
250-Sheet Standard
Tray (Tray 2)
Motor Drive/
Clutch/Feed Roll
Lead Edge
Registration
Registration
Motor Drive/
Clutch/Regi Roll
Transfer Unit
Motor Drive/Belt
Fuser
Motor Drive/Heat Roll/
Pressure Belt
Exit Roll in the Fuser
Motor Drive/Clutch/
Exit Roll
Motor Drive/Clutch/
Dup Roll
Duplex Module
Output Tray
