Phaser 6180 Color Laser Printer Service Manual 53
Service Parts Disassembly

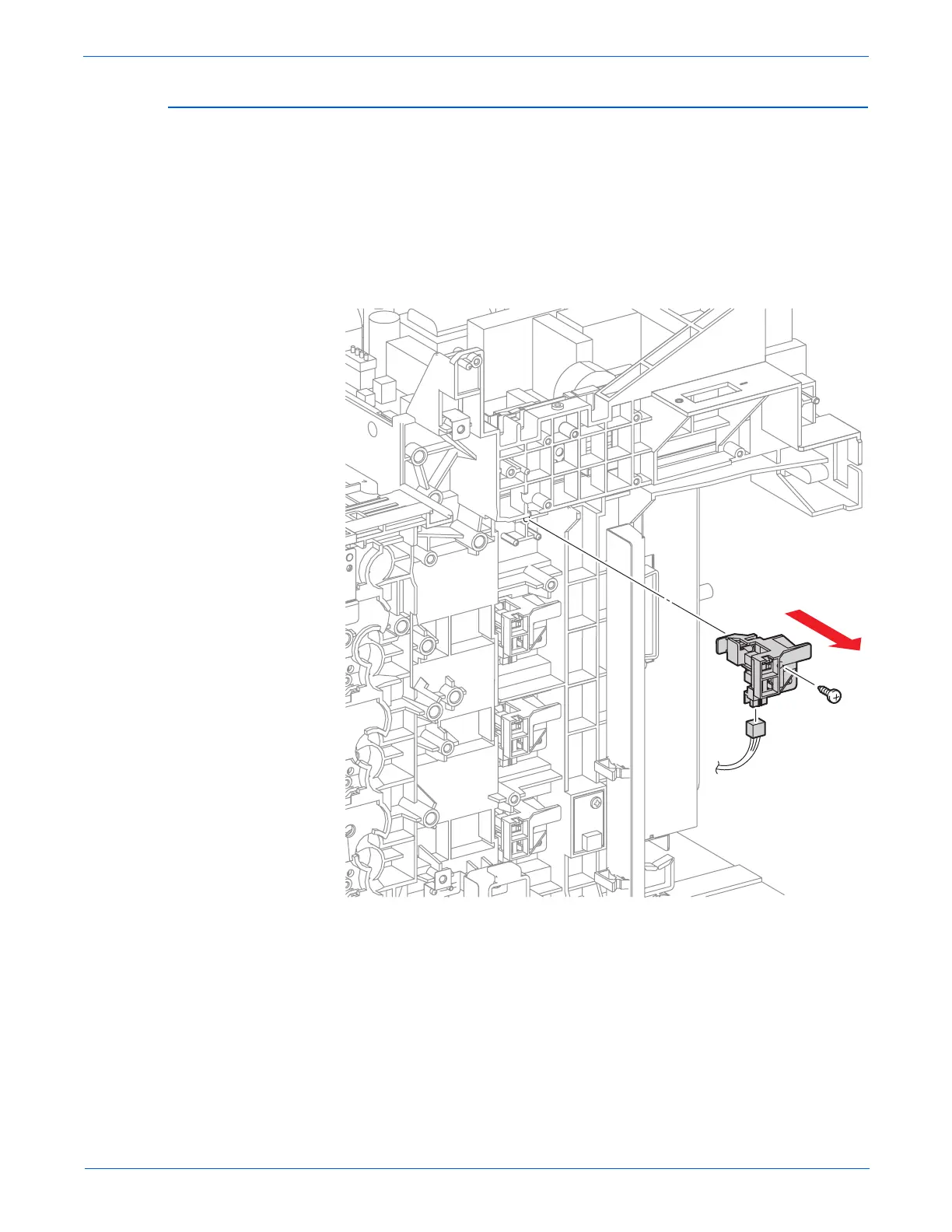

Print Cartridge Sensor Assembly (Black) (PL5.1.4)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Main Drive (page 8-73).
4. Remove the 1 screw (10 mm) securing the Black Print Cartridge Sensor
Assembly.
5. Remove the Black Print Cartridge Sensor Assembly.
6. Disconnect the Black Print Cartridge Sensor Assembly connector P/J193.
s6180-058
P/J193
To Next Page
