50 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Xerographics
Laser Unit (PL5.1.2)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Left Side Cover (page 8-13).
4. Remove the Top Cover (page 8-14).
5. Remove the Main Fan (page 8-84).
6. Remove the LVPS (page 8-81).
7. Remove the Controller Shield (page 8-92).

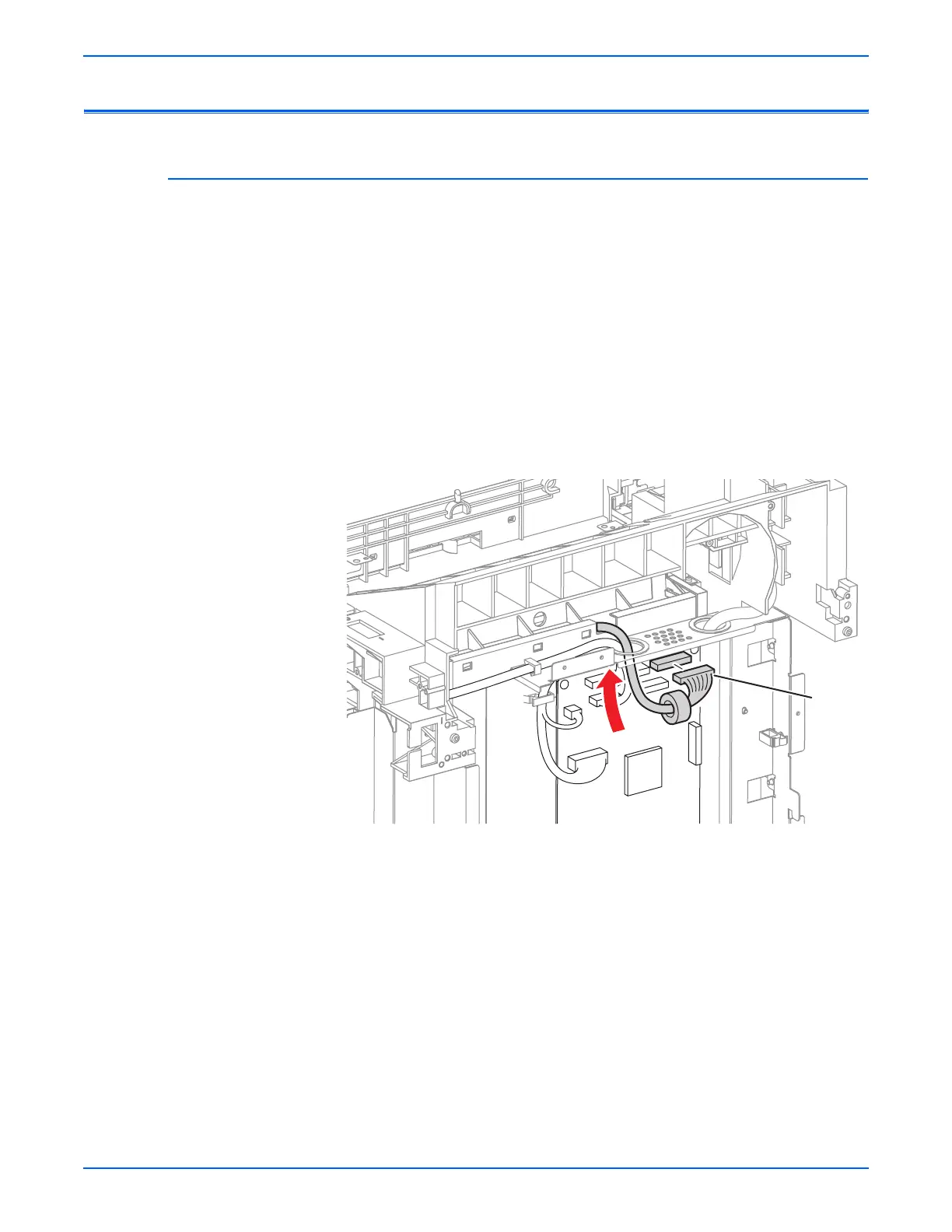

8. Disconnect the Laser Unit connector P/J12 on top of the MCU Board
(PL9.1.20).
9. Remove the Ferrite Core (PL5.1.22) from the Laser Unit wiring harness
and pull the connector through the hole of the MCU Board Shield
(PL9.1.11).
s6180-203
P/J12
To Next Page
