Xerox Phaser 6180 - Drive Assembly (PL8.1.7)

76 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Drive Assembly (PL8.1.7)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).

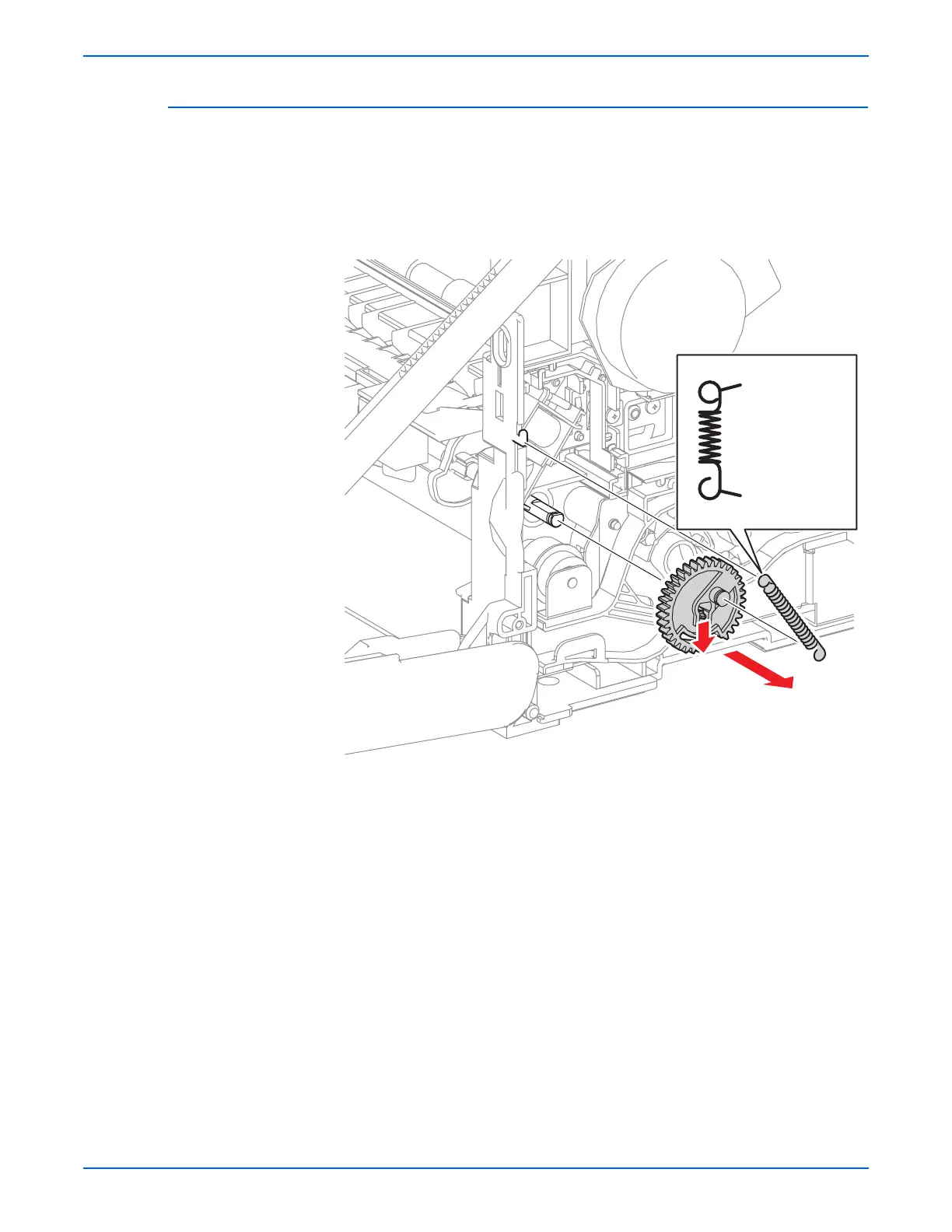

3. Remove the MPT Feed Spring (PL3.1.4).
4. Release the MPT Gear (PL3.1.5) and remove the Gear from the MPT
Shaft (PL3.1.12).
s6180-022
Printer Side
MPT Gear Side
