Phaser 6180 Color Laser Printer Service Manual 77
Service Parts Disassembly

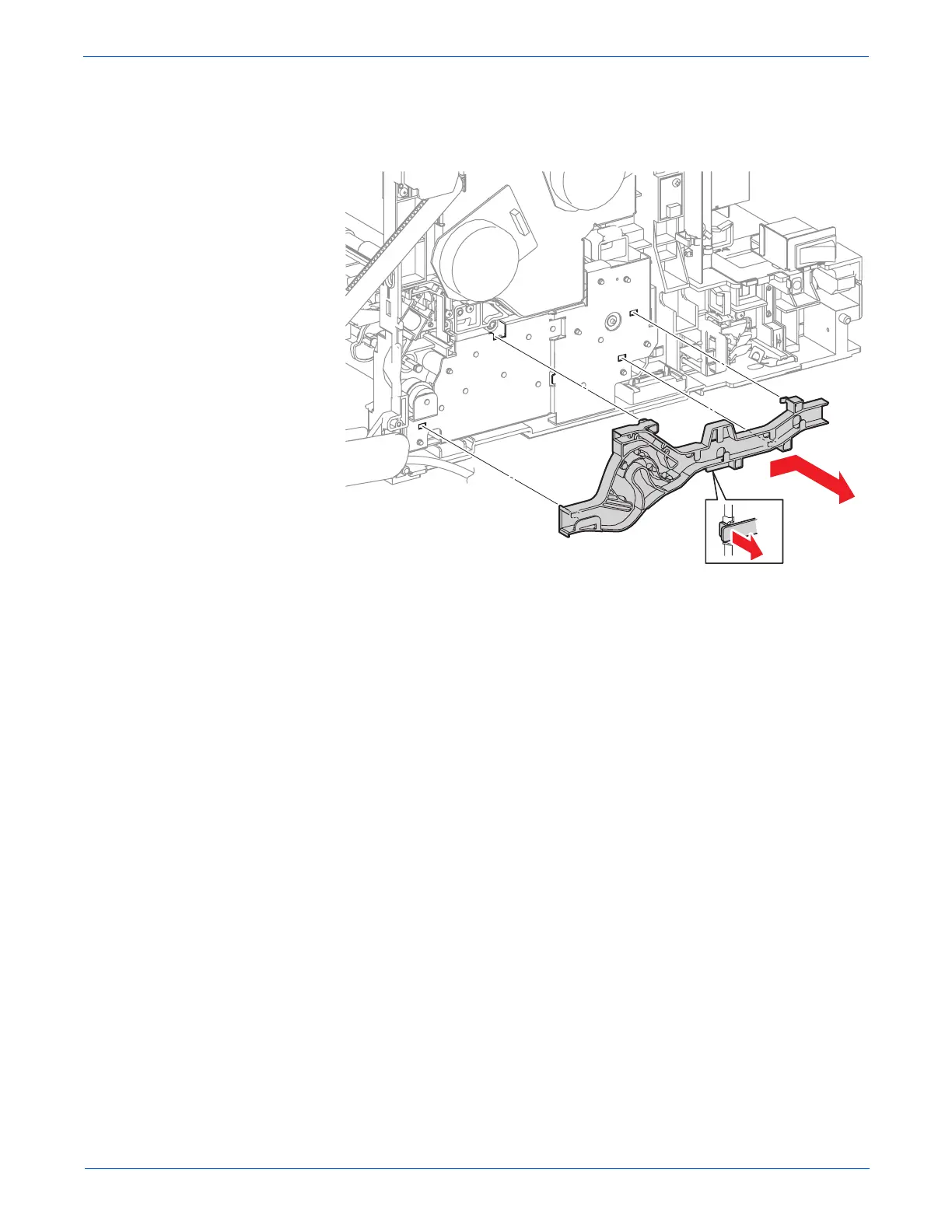

5. Release the wiring harnesses from the Drive Duct (PL8.1.8).
6. Release the hook of the Drive Duct from the Drive Assembly. Shift the
Drive Duct toward the rear side of the printer and remove it from the Drive
Assembly.
s6180-024
