Phaser 6180 Color Laser Printer Service Manual 8-7
Service Parts Disassembly
Maintenance Items and Consumables
Maintenance items include the Transfer Unit, Fuser, and Feed/Retard Rollers.
Individual procedures for the Rollers removal and replacement are provided
starting on page 8-7. Consumables consist of the four print cartridges.
Transfer Unit (PL4.1.1)
Caution
Do not touch the Transfer Unit belt area.
1. Open the Front Cover.

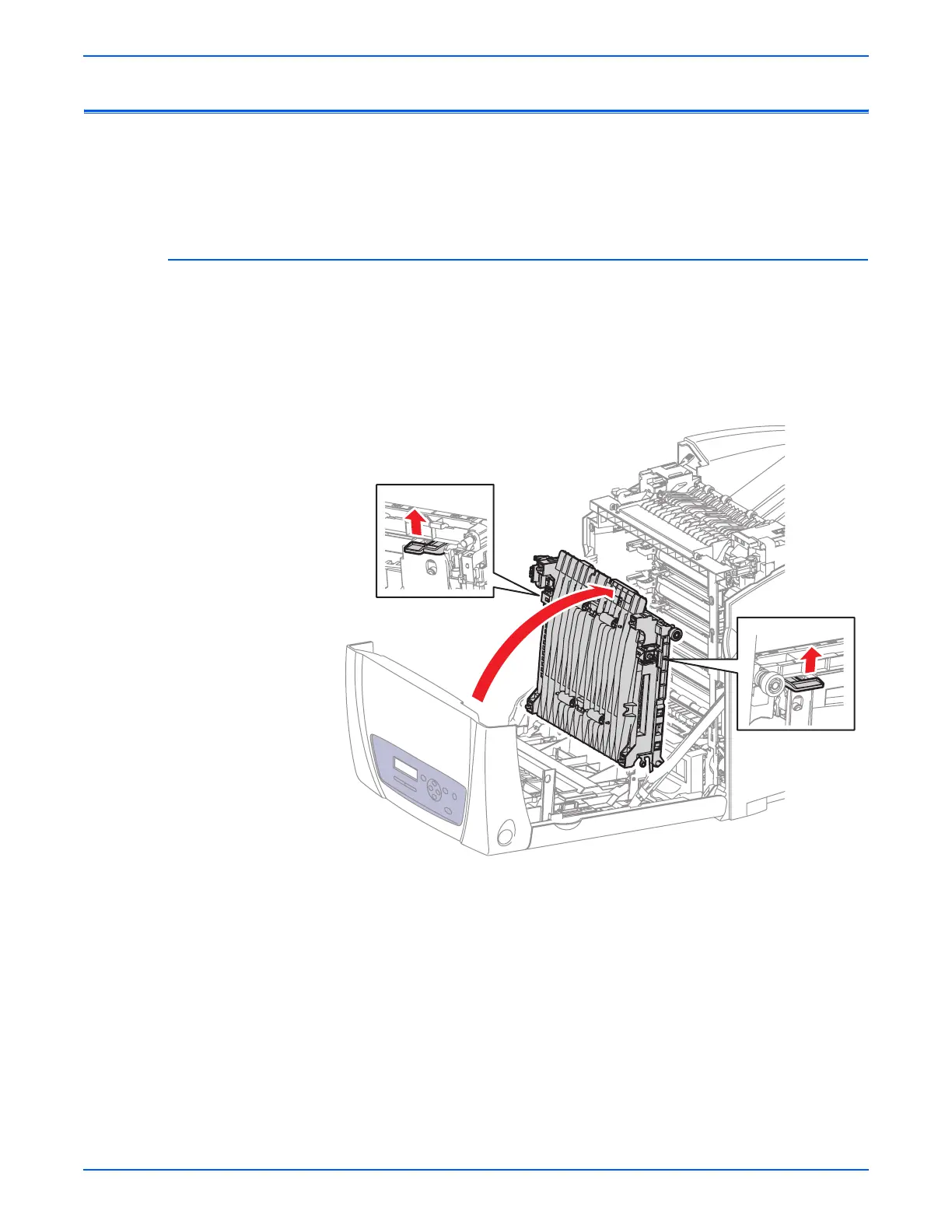

2. Release the levers on the left and right sides of the Transfer Unit and lift
the Transfer Unit at a 90° angle.
s6180-009
To Next Page
