Xerox Phaser 6180 - Print Cartridge

Phaser 6180 Color Laser Printer Service Manual 2-33
Theory of Operation
Print Cartridge
The Print Cartridge is a customer replaceable item consists of the following
components:
■ Customer Replaceable Unit Memory (CRUM) Connector
The CRUM Connector reads and writes the CRUM data. Printer specific
information is stored in the CRUM.
■ Dispenser (C/M/Y/K)
The Dispenser provides drive energy to the Agitator and Auger in the Print
Cartridge, and provides toner to the Developer part of the Print Cartridge.

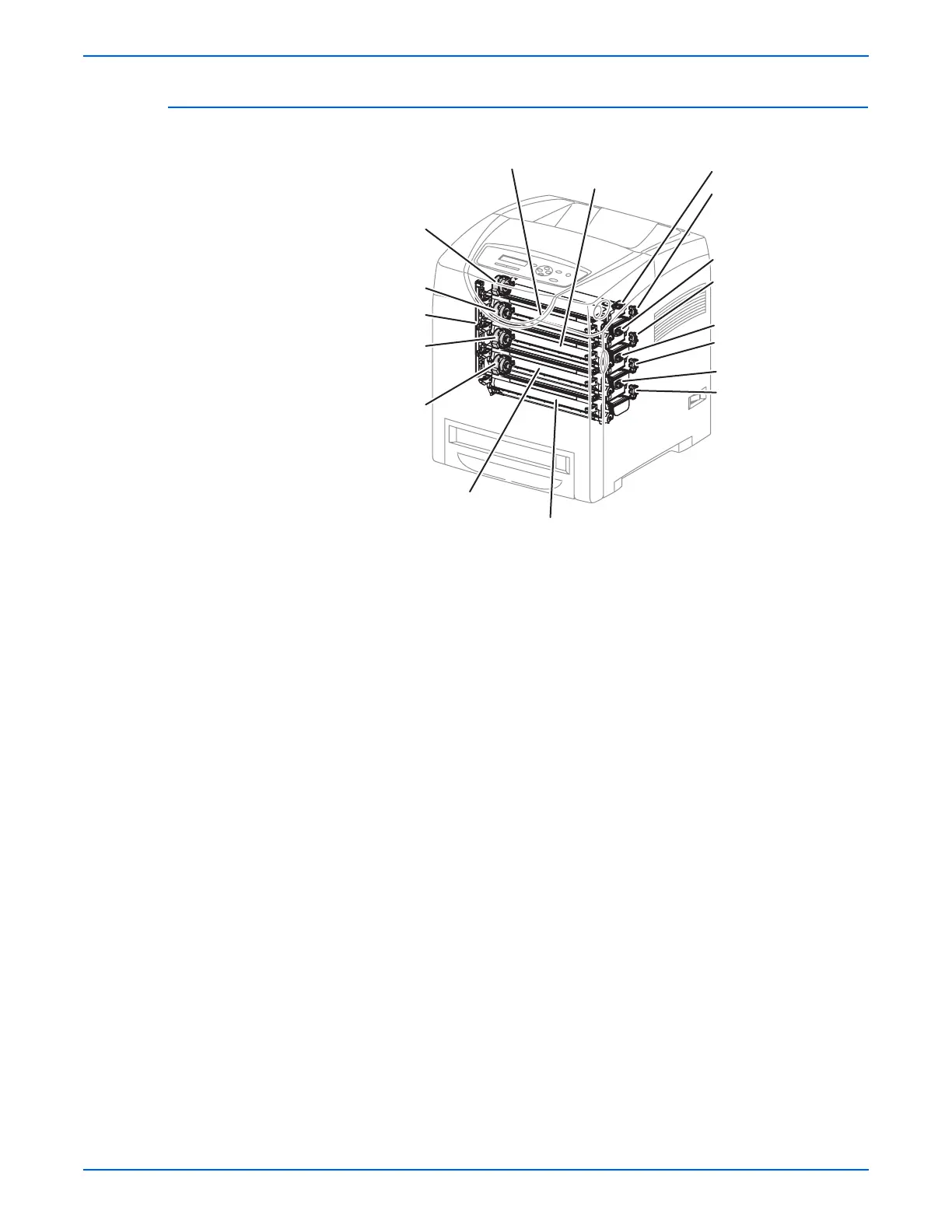

s6180-280
Print Cartridge (K)
Print Cartridge (C)
Print Cartridge (M)
Print Cartridge (Y)
Dispenser (K)
Dispenser (C)
Dispenser (M)
Dispenser (Y)
LED
CRUM Connector (K)
CRUM Connector (C)
CRUM Connector (M)
CRUM Connector (Y)
CRU Sensor (K)
CRU Sensor (C)
CRU Sensor (M)
CRU Sensor (Y)
