Xerox Phaser 6180 - Tray 1 (MPT) Front Cover (PL2.1.22)

26 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 1 (MPT) Front Cover (PL2.1.22)
1. Remove Tray 2.
2. Remove the Tray 2 Handle (page 8-27).

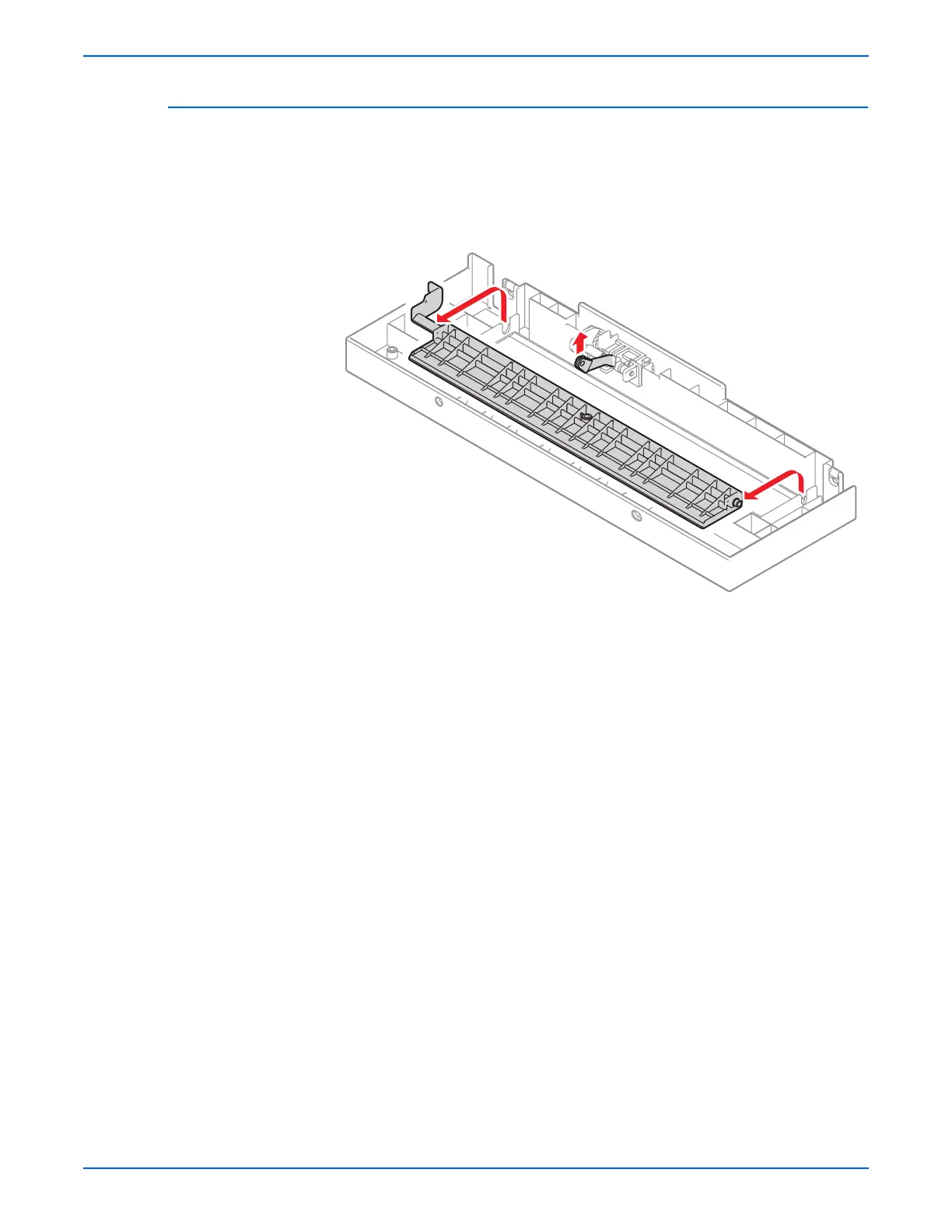

3. While pushing the Tray 1 (MPT) No Paper Actuator (PL2.1.26) upward,
remove the left and right shaft sections of the Front Cover from the groove
of the Tray Handle, and remove the Tray 1 (MPT) Front Cover.
s6180-181
