Paper Feeder
■ Tray 2 Feed Roller
The Feed Roller (Takeaway Roller) feeds the paper when the Feed Clutch
operates.
■ Tray 2 Feed Clutch
The Feed Clutch transmits drive energy from the Drive Assembly to the
Feed Roller.
■ Tray 2 Size Switch
The Size Switch detects the presence and size of the paper in the tray.

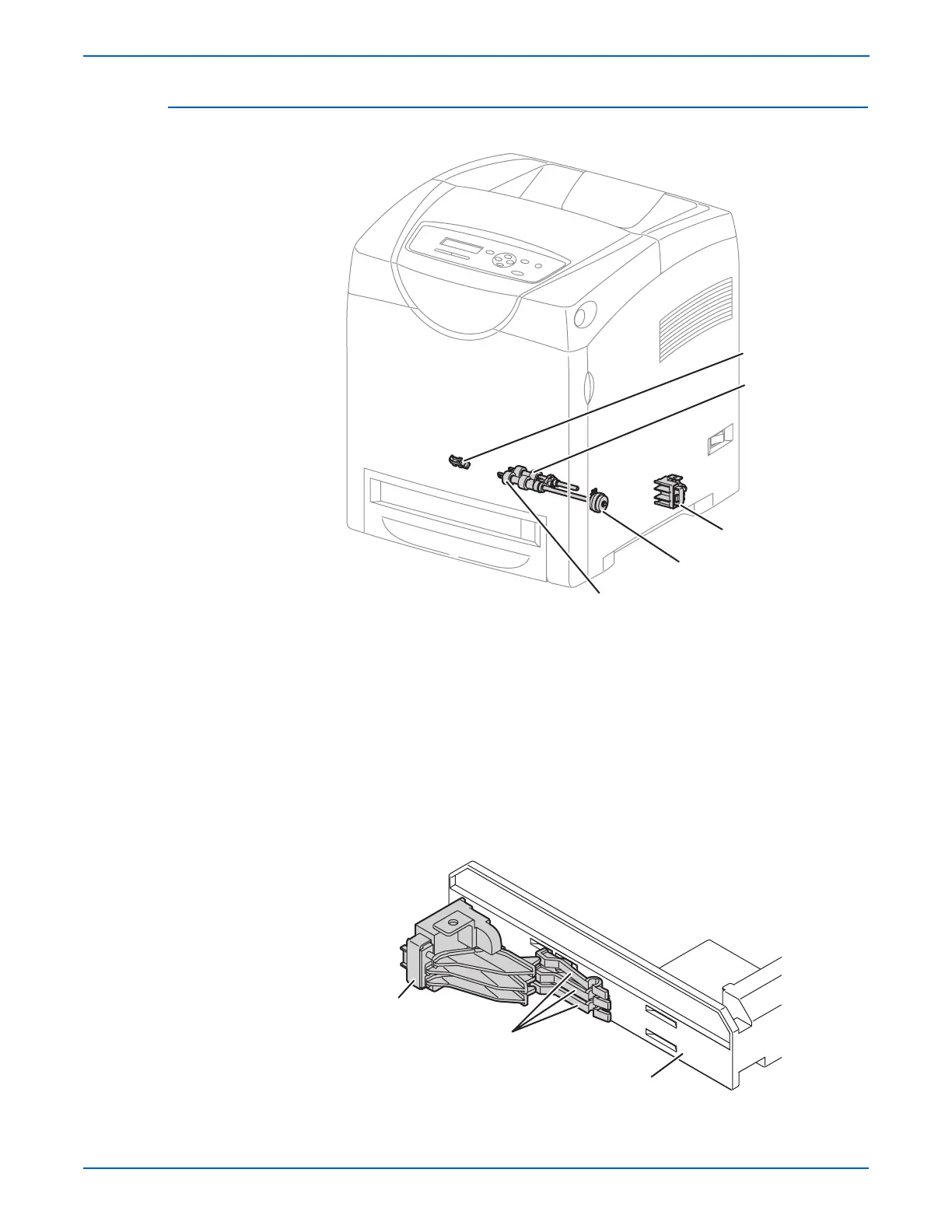

s6180-265
No Paper Sensor
Feed Roller (Takeaway Roller)
Feed Roller
(Nudger Roller)
Tray 2 Feed Clutch
Paper Size Switch
s6180-150
Size Switch
Size Switch Actuator
Tray End Guide
