Xerox Phaser 6180 - No Paper Sensor (PL3.2.30)

48 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly

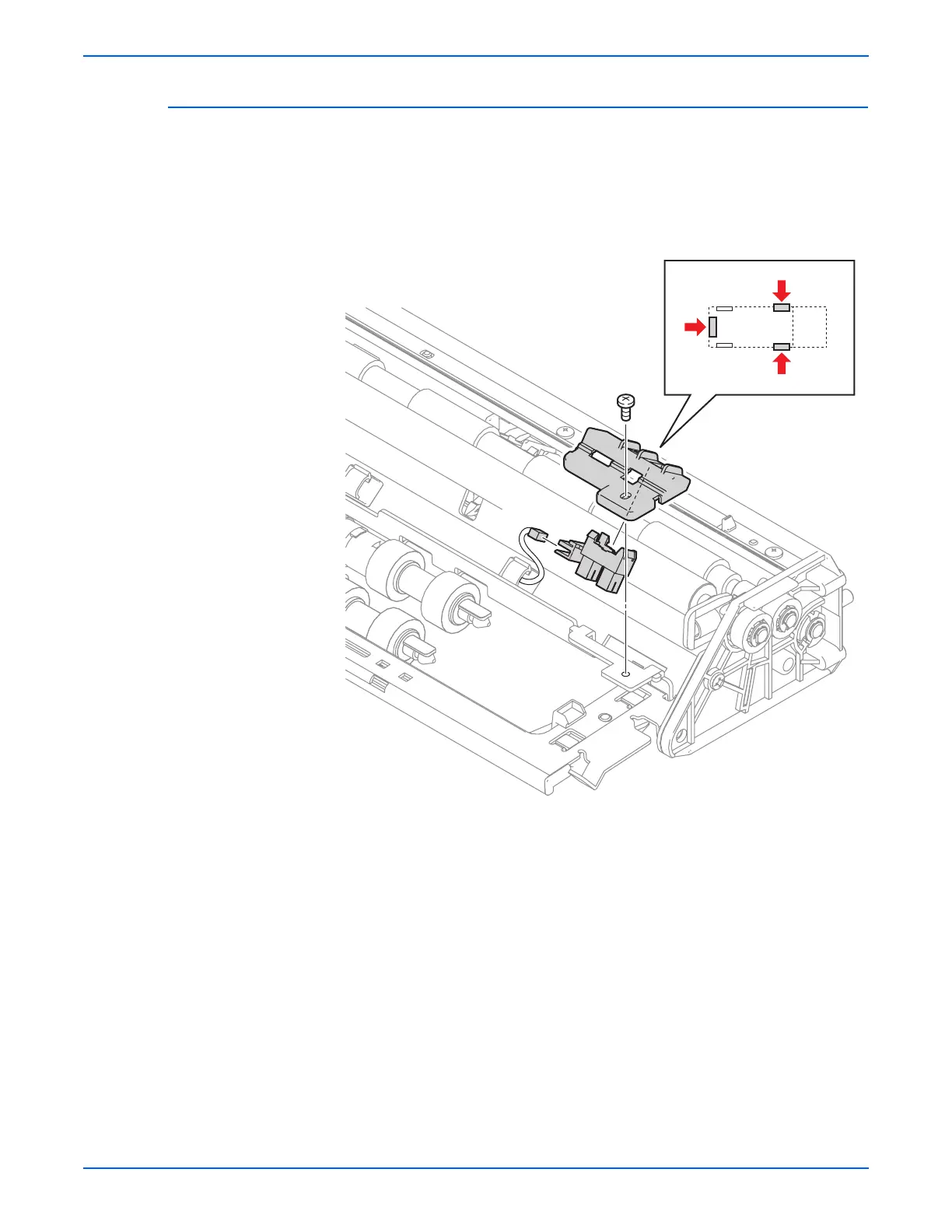

No Paper Sensor (PL3.2.30)
1. Remove the Feeder Unit (page 8-43).
2. Remove 1 screw (6 mm) securing the No Sensor Holder (PL3.2.34) and
remove the No Sensor Holder.
3. Release the 3 hooks securing the No Paper Sensor.
4. Disconnect the No Paper Sensor connector P/J2321.
P/J2321
s6180-199
