80 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Interlock Harness (PL9.1.3)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Left Side Cover (page 8-13).
4. Remove the Top Cover (page 8-14).
5. Disconnect the Interlock Harness connector P/J44 on the LVPS (PL9.1.4).
6. Release the Clamp on the LVPS Shield (PL9.1.9) securing the Interlock
Harness wiring harness.
7. Remove the Interlock Harness from the Main Drive Duct (PL8.1.9).
8. Remove 1 screw (16 mm) securing the Interlock Harness to the printer.
9. Remove the Interlock Harness.

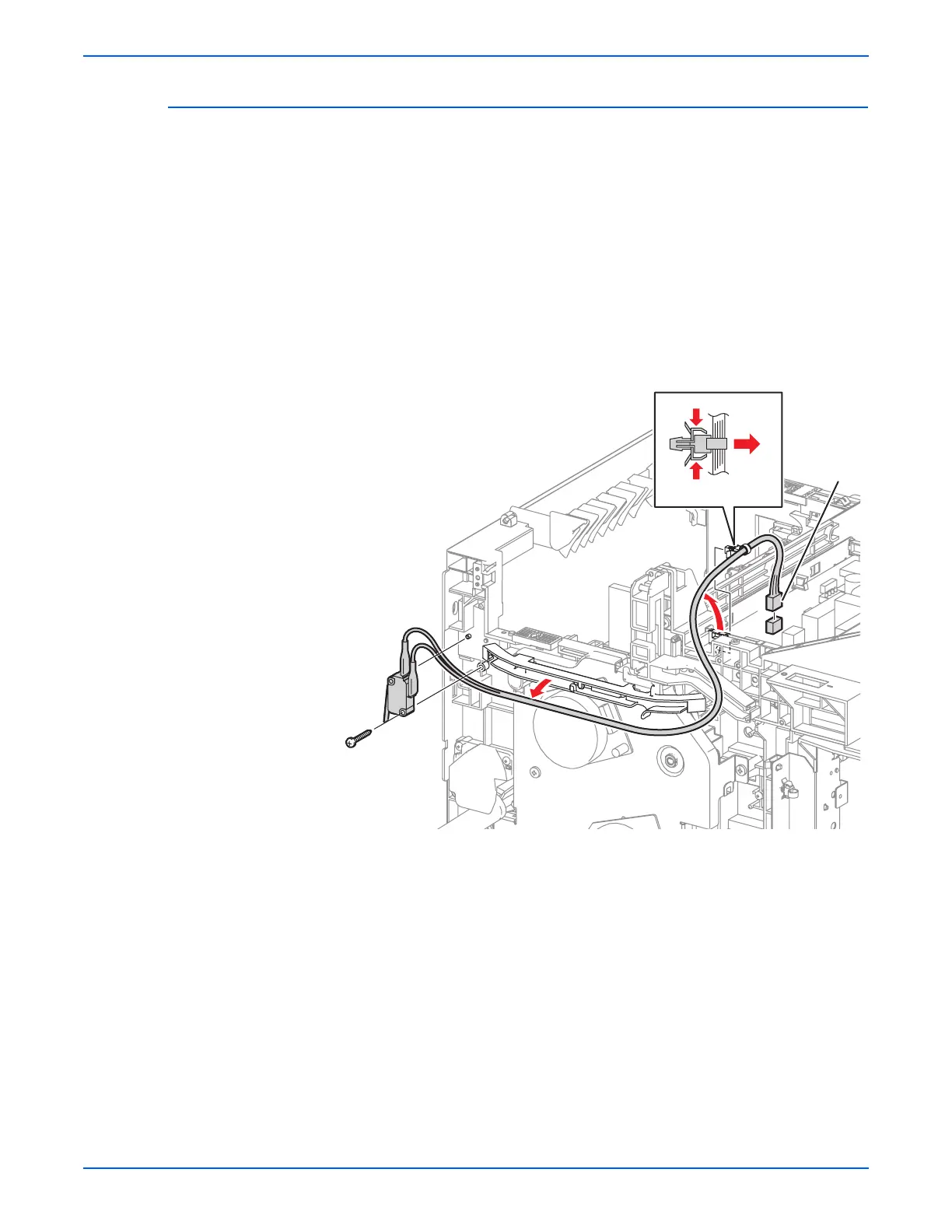

P/J44
s6180-055
