Phaser 6180 Color Laser Printer Service Manual 65
Service Parts Disassembly
Frame

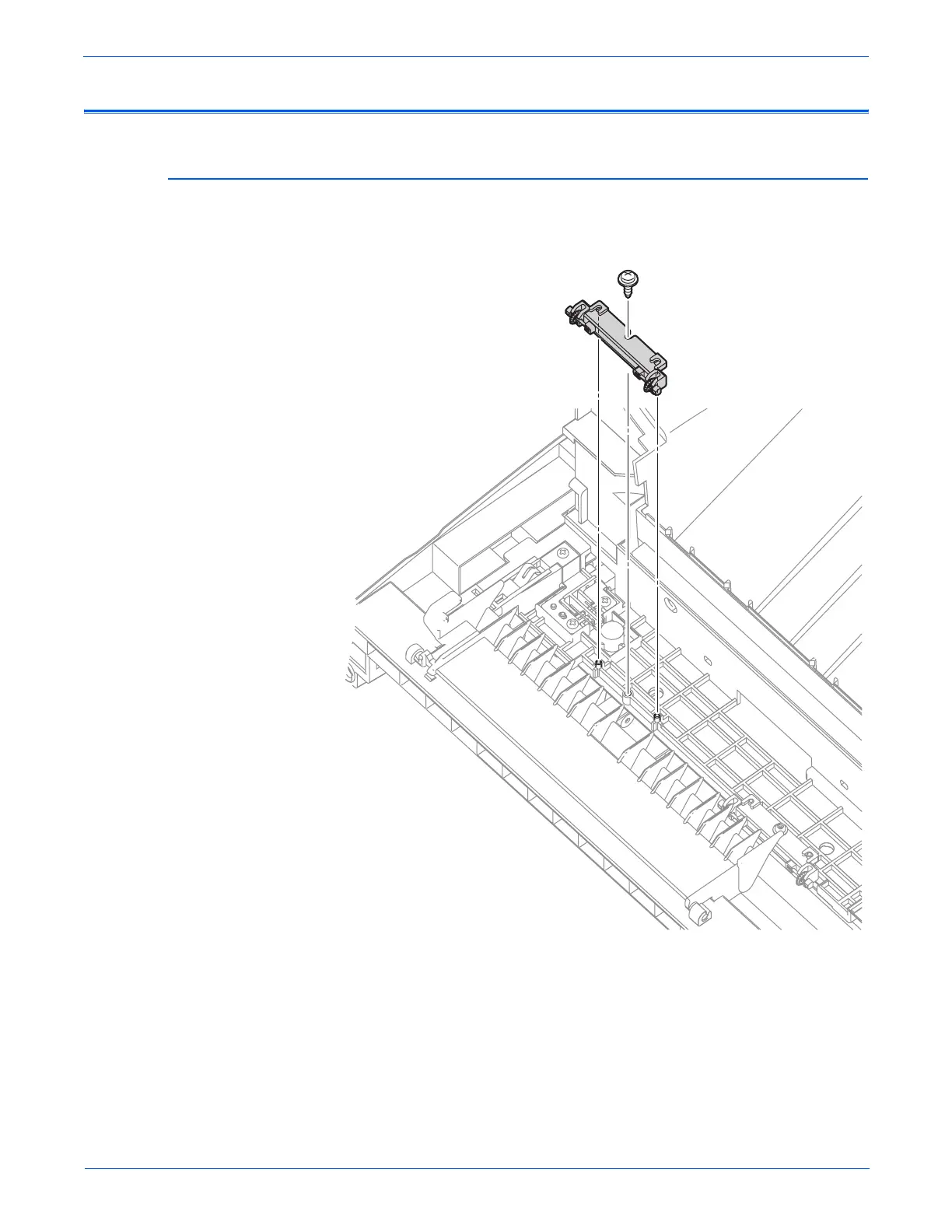

Star Wheel (PL7.1.1)
1. Remove 1 screw (8 mm, flanged) securing the Star Wheel to the printer.
2. Remove the Star Wheel.
s6180-015
