Phaser 6180 Color Laser Printer Service Manual 25
Service Parts Disassembly

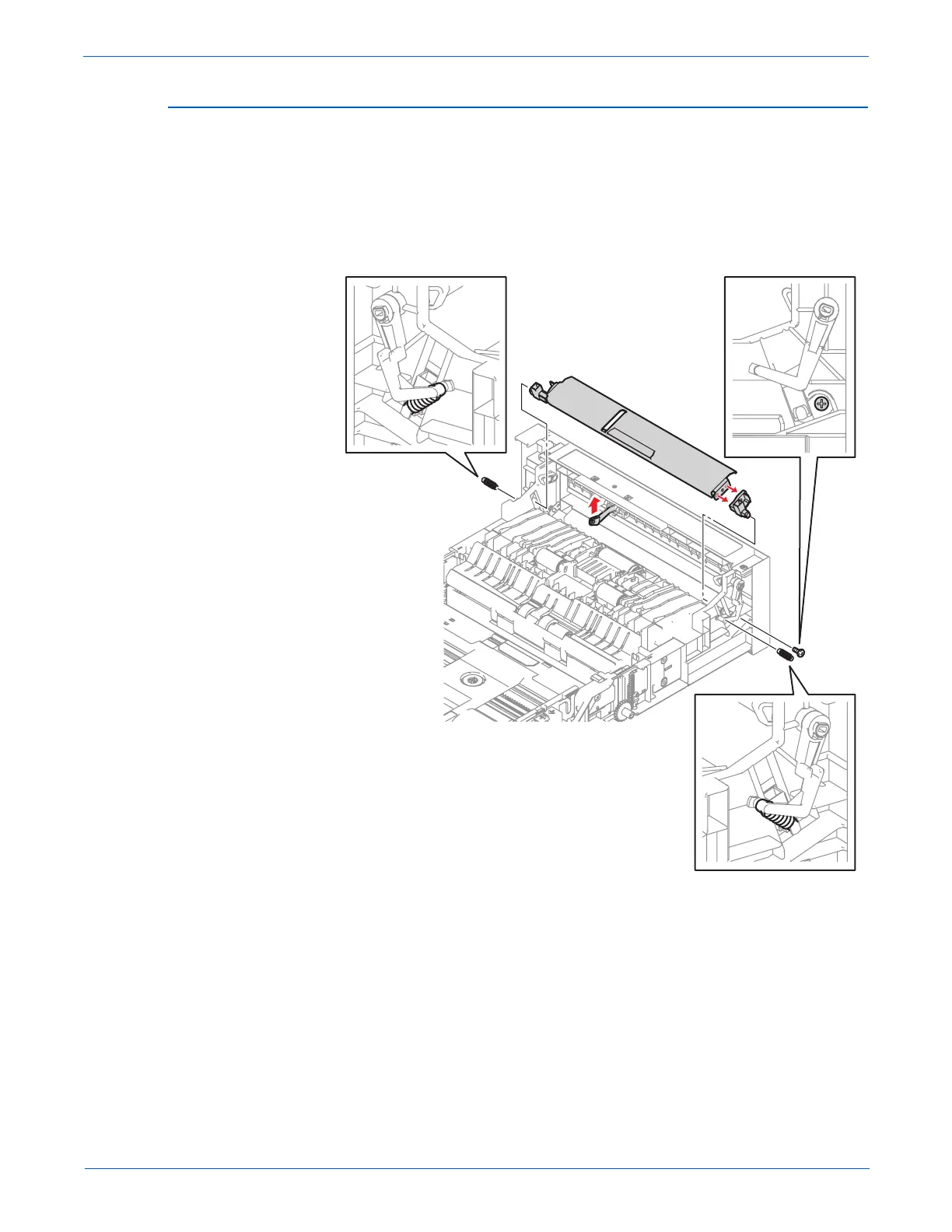

Bottom Plate (PL2.1.20)
1. Remove Tray 2.
2. Remove the MPT Springs (PL2.1.17) on the left and right Arms.
3. Remove 1 screw (6 mm) securing the left MPT Holder (PL2.1.21).
Remove the left MPT Holder.
4. While pushing the No Paper Actuator (PL2.1.26) upward, remove the
Bottom Plate from the Tray 2 Housing Base.
s6180-180
