Xerox Phaser 6180 - General Diagram

To Next Page

To Previous Page

Phaser 6180 Color Laser Printer Service Manual 10-9

Plug/Jack and Wiring Diagrams

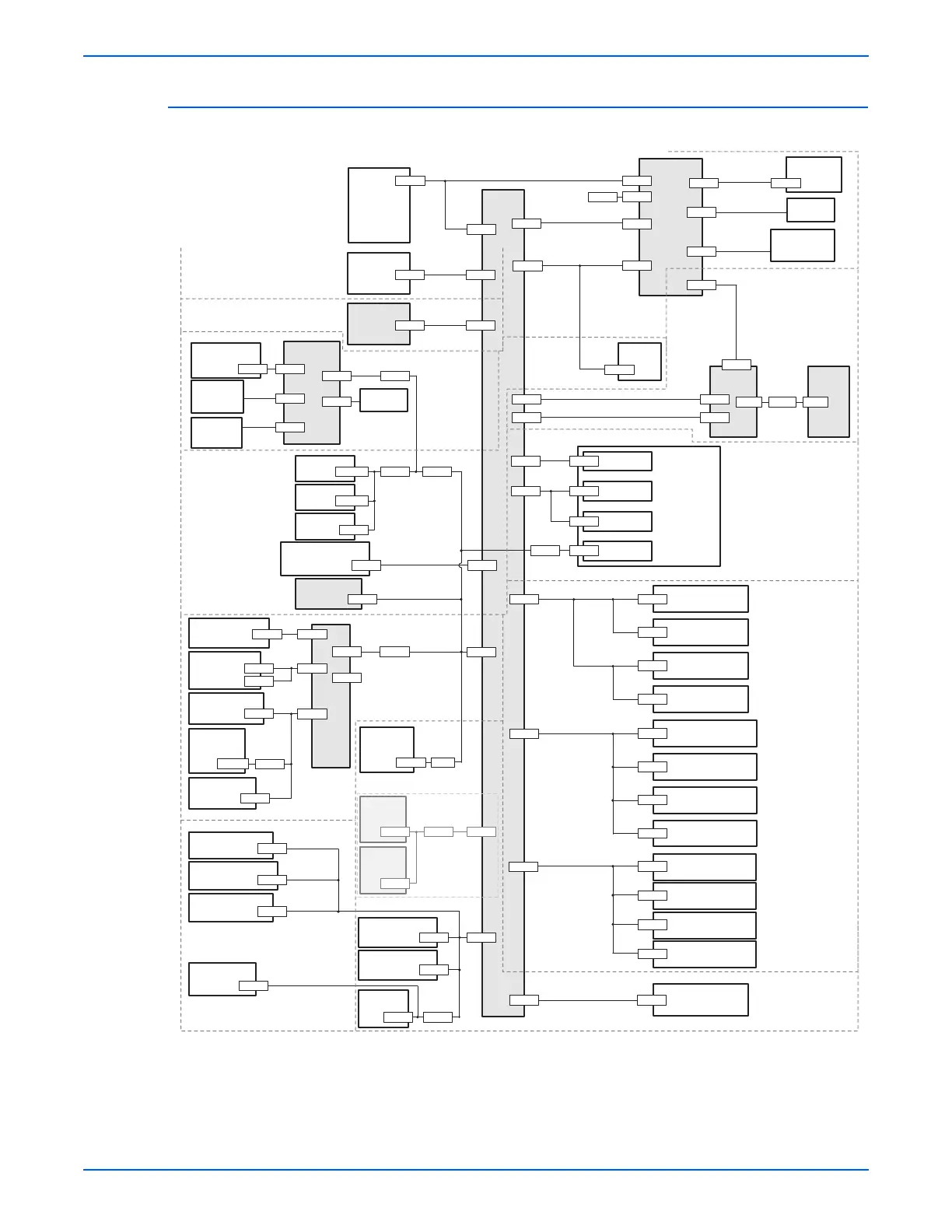

General Diagram - Plug/Jack Locations

MCU

Board

PL9.1.20

HVPS

PL5.1.17

P/J16

P161

Main Motor

Main Drive

PL8.1.2

P/J211P/J21

Sub Motor

P/J221P/J22

Developer

Motor

P/J222

Exit Clutch

P/J2761

Humidity/Temperature

Sensor

PL9.1.19

P/J26

J261

ADC Sensor

P/J2721P/J27212

ADC Solenoid

P/J27213

EEPROM Belt

P/J272

EEPROM Board

PL9.1.1

P/J144

LED

PL5.1.15

P/J141

Tray 1 (MPT)

Feed Solenoid

PL3.1.3

P/J23

P/J236

Regi Clutch

PL3.1.19

P/J233

Regi Sensor

PL3.2.30

P/J2322 P/J232

P/J276

Tray 1 (MPT)

No Paper

Sensor

PL3.1.15

P/J275P/J2751

Drive Assembly

PL8.1.7

P/J251P/J25

P/J24

OHP Board

Sensor

PL3.2.56

P/J2411 P/J241

OHP Board

LED

PL3.2.54

P/J2412

Not Used

On 6180

Duplex Board

PL11.1.15

P/J428

P/J2720

P/J427

Duplex Jam

Sensor

PL11.1.12

P/J430

P/J4301

Duplex

Clutch

PL11.2.10

P/J431

Duplex

Motor

PL11.2.23

P/J429

Duplex Fan

PL11.1.25

CRUM Connector (K)

PL5.1.3

P/J314

CRUM Connector (C)

PL5.1.3

P/J313

CRUM Connector (M)

PL5.1.3

P/J312

CRUM Connector (Y)

PL5.1.3

P/J311

P/J31

CRU Sensor (Y)

PL5.1.4

P/J191

P/J19

CRU Sensor (M)

PL5.1.4

P/J192

CRU Sensor (K)

PL5.1.4

P/J193

CRU Sensor (C)

PL5.1.4

P/J194

Dispenser (Y)

PL5.1.12

P/J181

P/J18

Dispenser (M)

PL5.1.12

P/J182

Dispenser (K)

PL5.1.12

P/J183

Dispenser (C)

PL5.1.12

P/J184

Feeder Clutch

PL3.1.20

P/J235

Turn Clutch

PL3.2.25

P/J234

Tray 2 No Paper

Sensor

PL3.2.30

P/J2321

Size Switch

PL7.1.18

P/J231

Optional

Feeder

Board

PL12.2.6

P/J419 P/J273

P423

Turn Clutch

(Optional)

PL12.1.5

P/J420P/J4201

P/J4222

P/J4221

Feeder Drive

(Optional)

PL12.2.10

P/J422

Feeder Clutch

(Optional)

PL12.1.6

P/J421

P/J27

P/J4213

Size Switch

(Optional)

PL12.2.5

P/J4211

Tray 3 No

Paper Sensor

PL12.3.14

P/J4212

P/J42121

Main Fan

PL9.1.10

Interlock

Harness

PL9.1.3

P/J15

P/J502

P/J47

LVPS

PL9.1.4

P/J503

P/J44

P/J14

P/J501

P/J40

I/P Board

PL9.1.27

Control

Panel

PL1.2.16

P/J101

P/J111

P/J29

P/J401

P/J10

P/J11

P/J220P/J2900

s6180-462

P/J17

P/J171

P/J48

Power Switch

PL9.1.13

P/J481

Laser Unit

PL5.1.2

Fuser

PL6.1.10

P/J121 P/J12

P/J504

Used in production

process only.

J5041
