Xerox Phaser 6180 - Tray 3 Feeder (PL12.1.8)

102 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 3 Feeder (PL12.1.8)
1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove the Tray 3 Left Cover (page 8-97).
3. Remove the Tray 3 Right Cover (page 8-98).
4. Remove the Tray 3 Turn Clutch (page 8-100).
5. Remove the Tray 3 Feed Clutch (page 8-101).

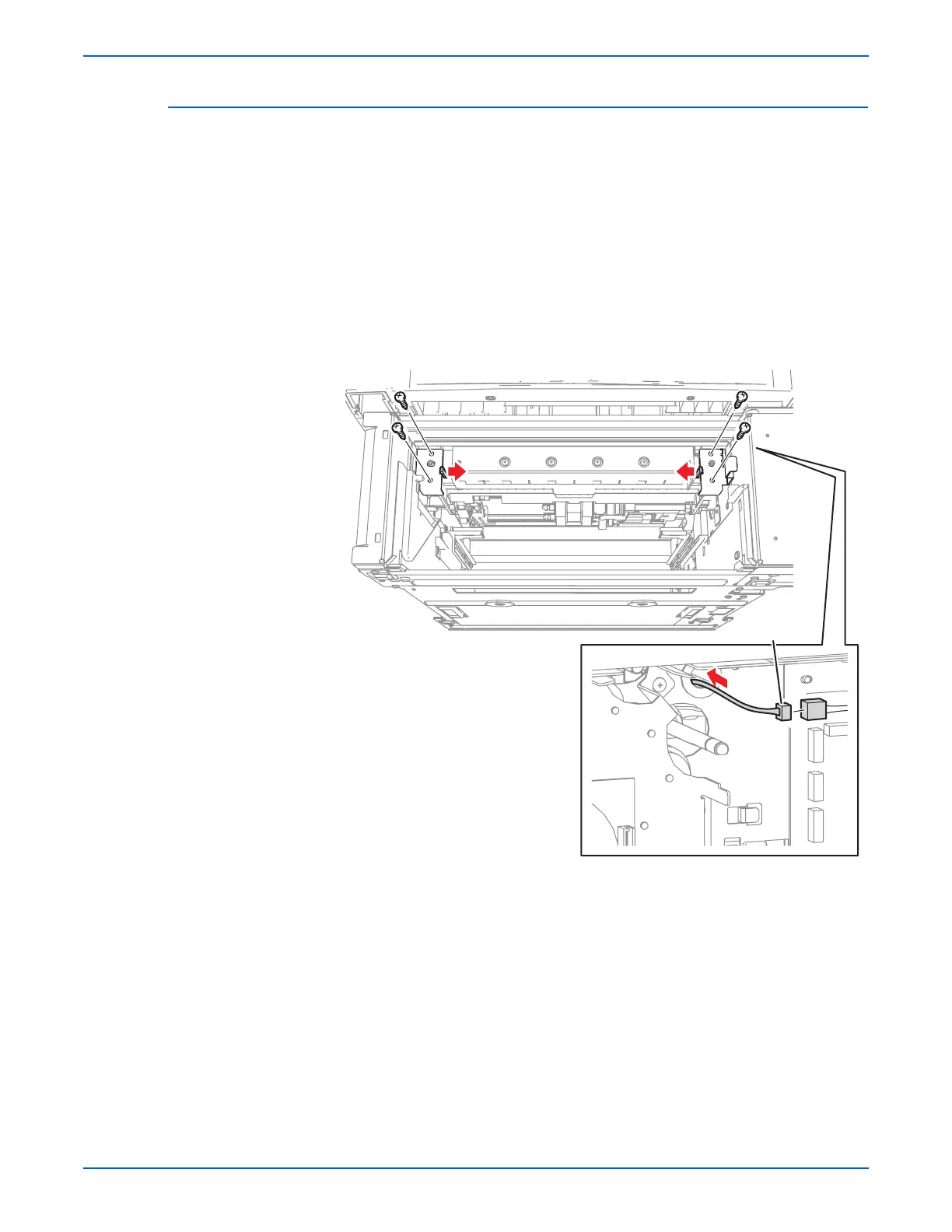

6. Disconnect the Tray 3 Feeder connector P/J4212 and slide the connector
out of the hole of the Frame (PL12.2.1).
7. Remove 4 screws (8 mm) securing the Tray 3 Feeder to the Frame.
8. Release the 2 hooks securing the Tray 3 Feeder to the Frame and release
the 2 notches from the hole of the Frame.
s6180-232
(J4212)
