Xerox Phaser 6180 - Page 493

Phaser 6180 Color Laser Printer Service Manual 103
Service Parts Disassembly

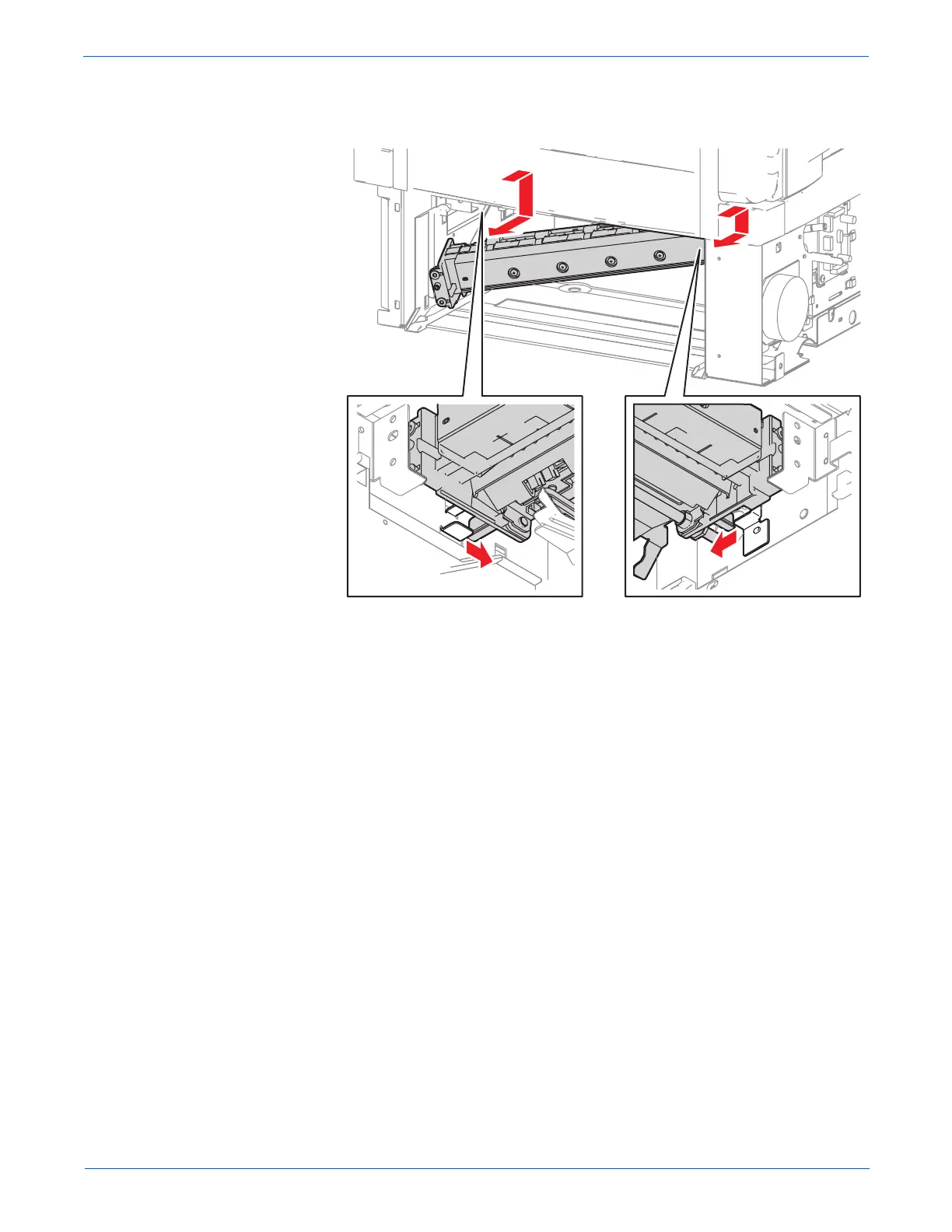

9. Release the convex part on the left and right sides of the Tray 3 Feeder
from the flange on the left and right sides of the Frame to remove the Tray
3 Feeder.
s6180-233
