Xerox Phaser 6180 - High Voltage

10-42 Phaser 6180 Color Laser Printer Service Manual

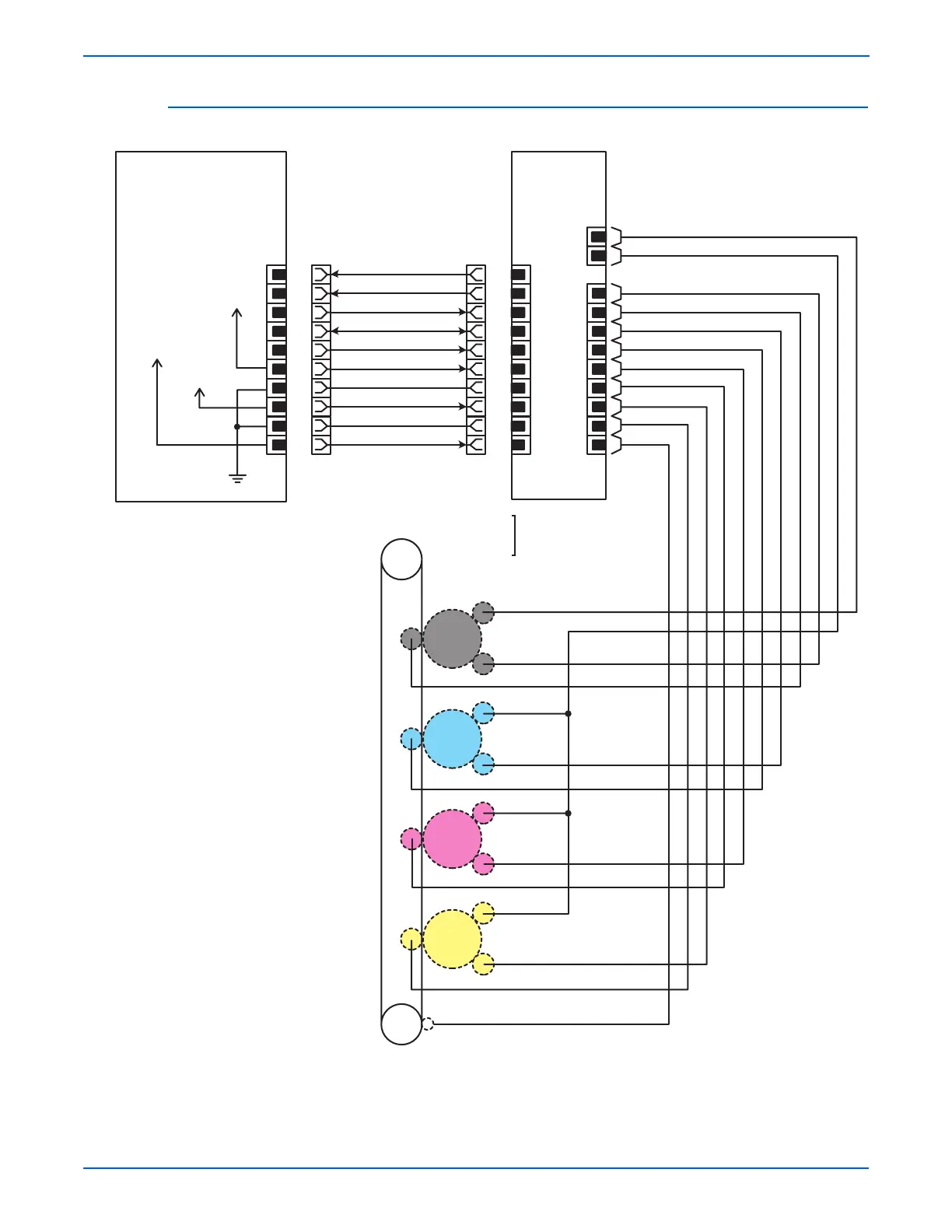

Plug/Jack and Wiring Diagrams
High Voltage
MCU Board
PL9.1.20
P/J16
1
2
3
4
5
6
7
8
HVPS
PL5.1.17
P/J161*
* J161
* P162
* P163
P162-1*
P163-1*
DB4
TR4
TR3
TR2
TR1
ESA
BCR
BTR
BTR : Bias Transfer Roll
BCR : Bias Charge Roll
ESA : Electric Static
Attachment
ESA
Developer
DB3
DB2
DB1
10
9
8
7
6
5
4
3
TR MON
CF MON
COLOR
CLK
+3.3VDC
SG
9
10
2
1
+5VDC
SG
I/L +24VDC
s6180-430
K
C
M
Y
Interlock
+24VDC
+5.5VDC
+3.3VDC
RED
WHT
WHT : White
Soldered Connector
DATA
