Phaser 6180 Color Laser Printer Service Manual 79
Service Parts Disassembly
Electrical

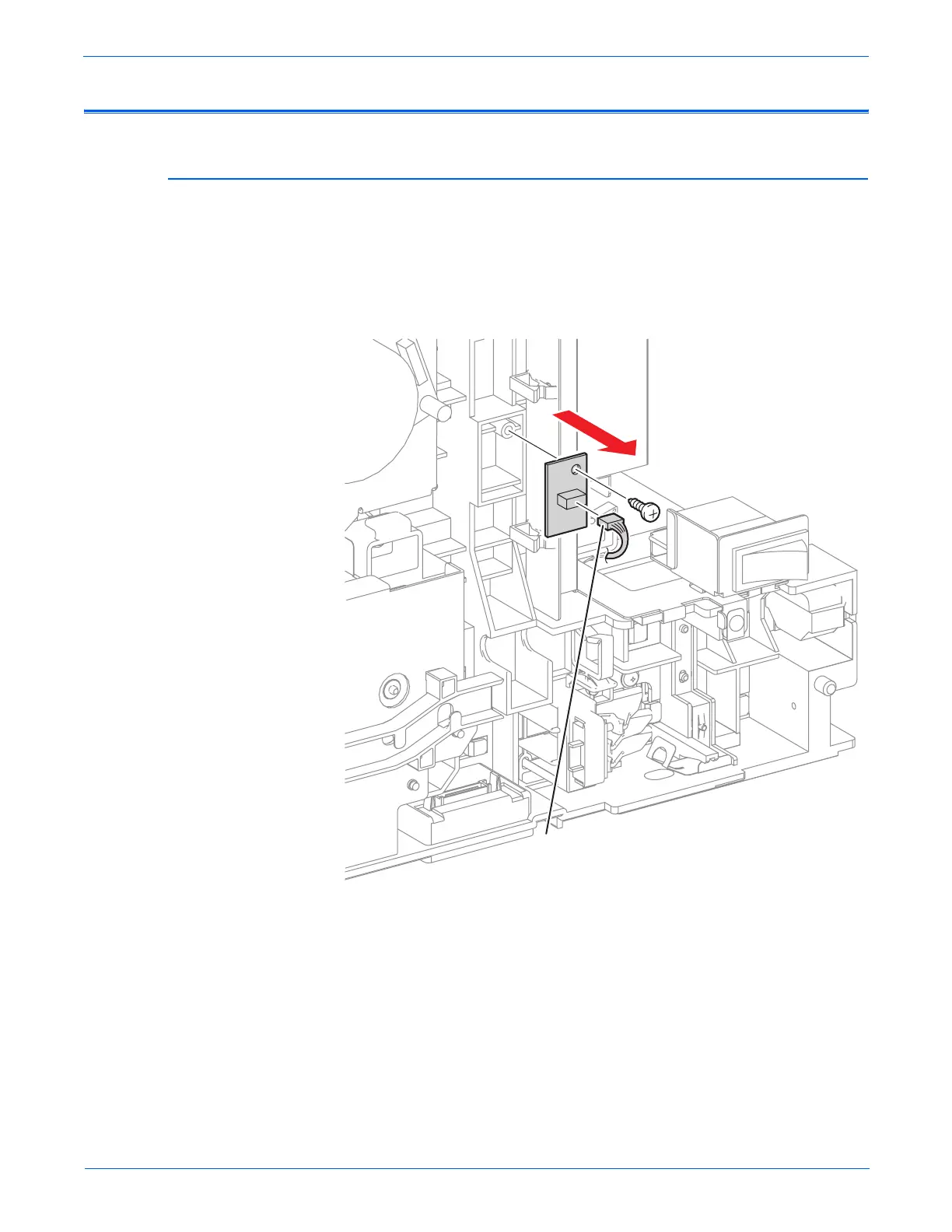

EEPROM Board (PL9.1.1)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Disconnect the EEPROM Board connector P/J144.
4. Remove 1 screw (10 mm) securing the EEPROM Board to the printer.
5. Remove the EEPROM Board.
s6180-211
P/J144
To Next Page
