78 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly

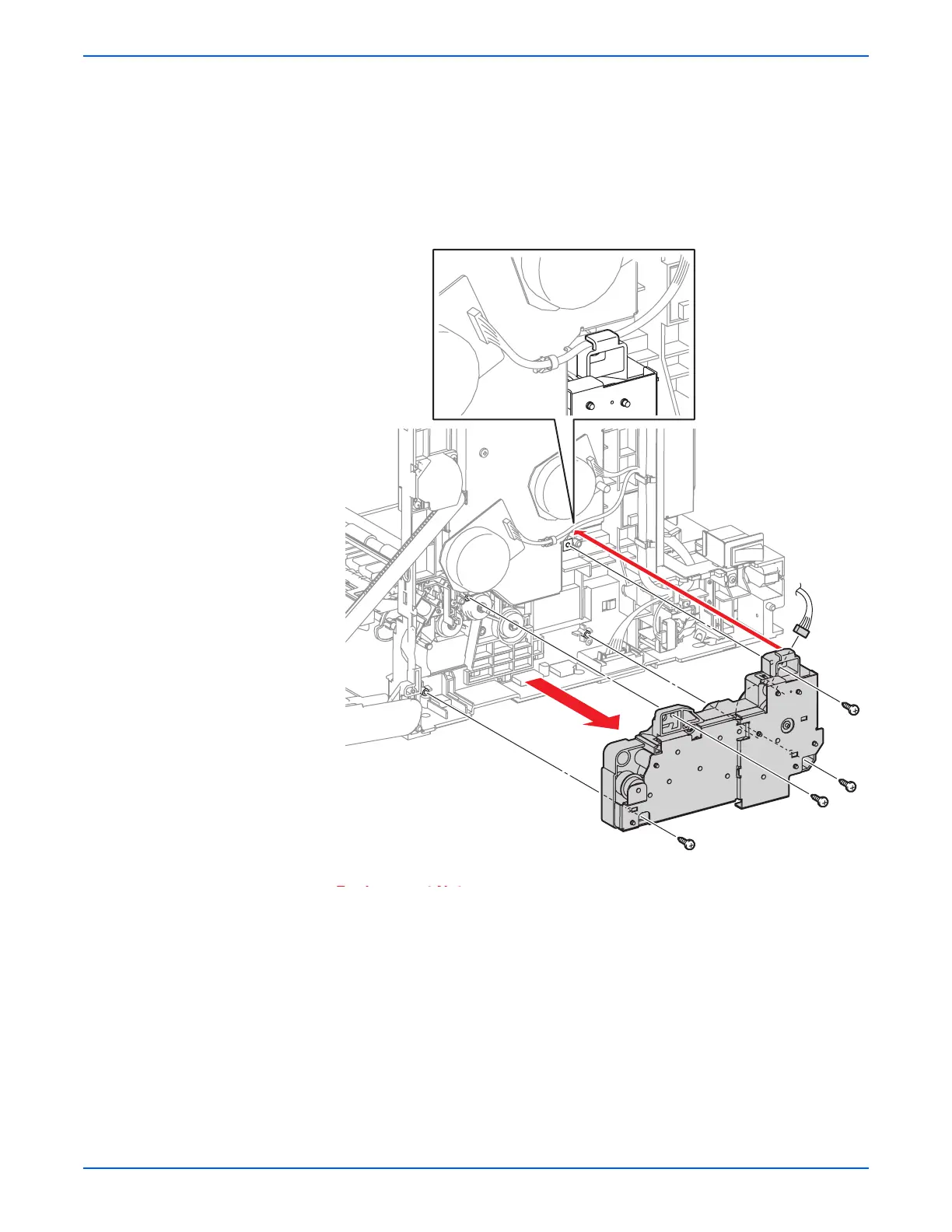

7. Remove 4 screws (10 mm) securing the Drive Assembly to the printer.
Caution
DO NOT separate the Drive Assembly from the printer, because they are
connected with the wiring harness.
8. Remove the Drive Assembly.
9. Disconnect the Drive Assembly connector P/J251.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure to place the wiring harness connecting the Developer Motor of
the Main Drive (PL8.1.2) through the back of the hook on top of the
Drive Assembly.
Pay attention to the direction of the MPT Feed Spring. Attach the
hyperelliptic side of the Tray 1 (MPT) Feed Spring to the Tray 1 (MPT)
Gear.
s6180-025
P/J251
