Xerox Phaser 6180 - Tray 3 Turn Clutch (PL12.1.5)

100 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 3 Turn Clutch (PL12.1.5)
1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove the Tray 3 Right Cover (page 8-98).
3. Disconnect the Tray 3 Turn Clutch connector P/J4201.
4. Release the 2 Clamps securing the Tray 3 Turn Clutch wiring harness and
remove the harness.
5. Remove the E-ring securing the Tray 3 Turn Clutch to the Turn Roll.
6. Remove the Tray 3 Turn Clutch from the Turn Roll.

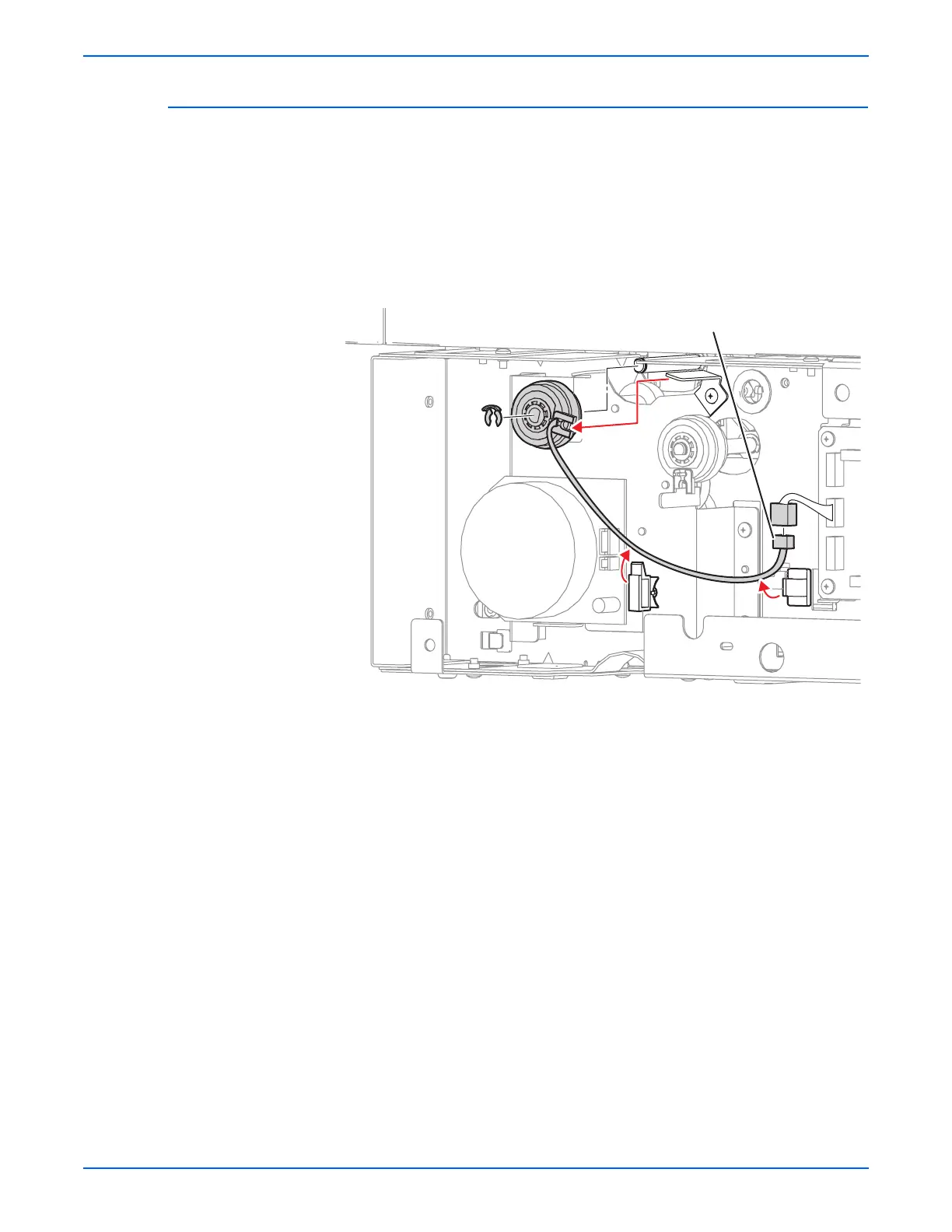

s6180-224
P/J4201
