Phaser 6180 Color Laser Printer Service Manual 99
Service Parts Disassembly

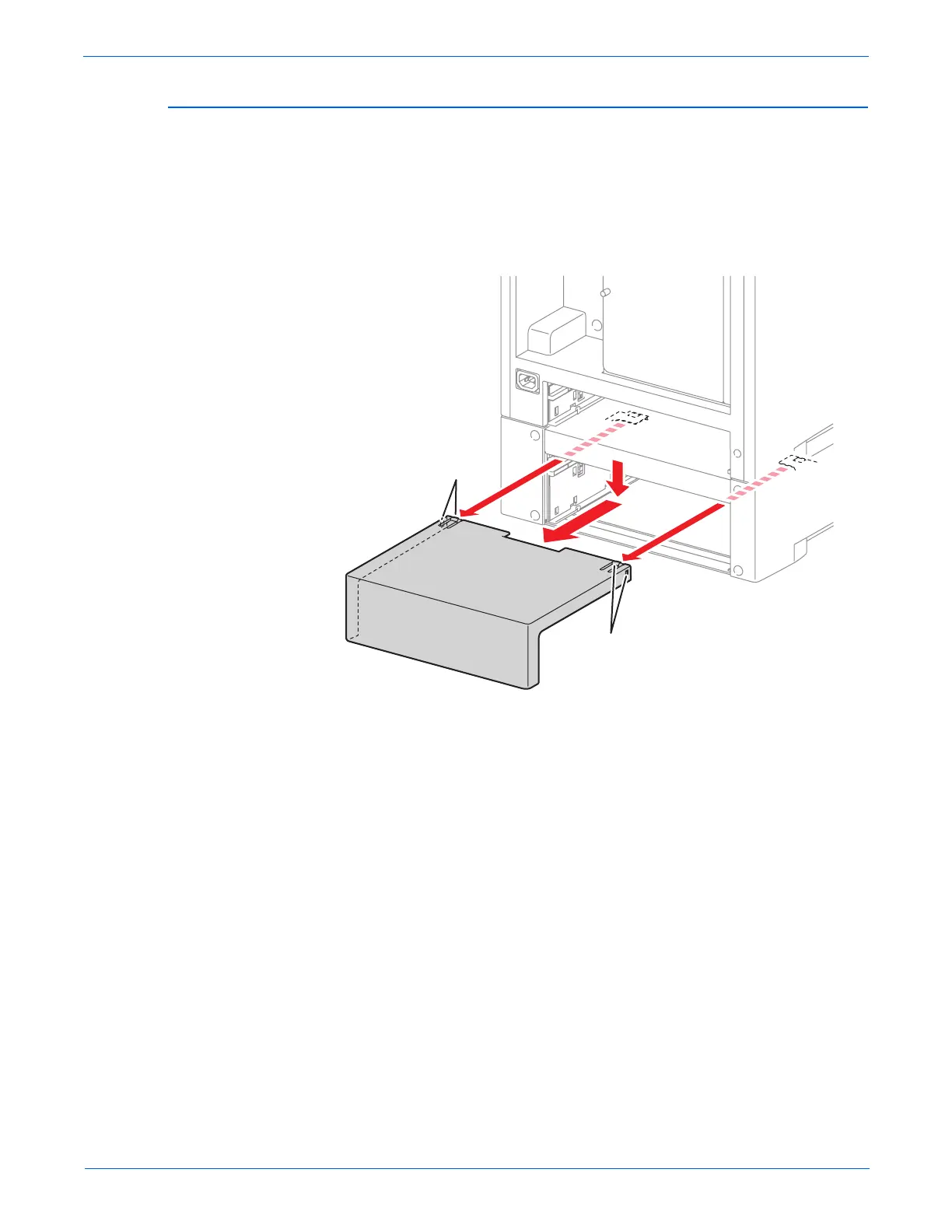

Tray 3 Cover (PL12.1.4)
1. Remove the Tray 2 Cover (page 8-17).
2. Remove Tray 3 from the Optional 550-Sheet Feeder.
3. Pull the Tray 3 Cover backward until it stops.
4. Press the center part of the Tray 3 Cover to release the 2 hooks (on the
left and right sides), and remove the Tray 3 Cover from the Optional 550-
Sheet Feeder.
s6180-064
Latches
Latches
To Next Page
