Xerox Phaser 6180 - Tray 2 End Guide (PL2.2.22)

34 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly

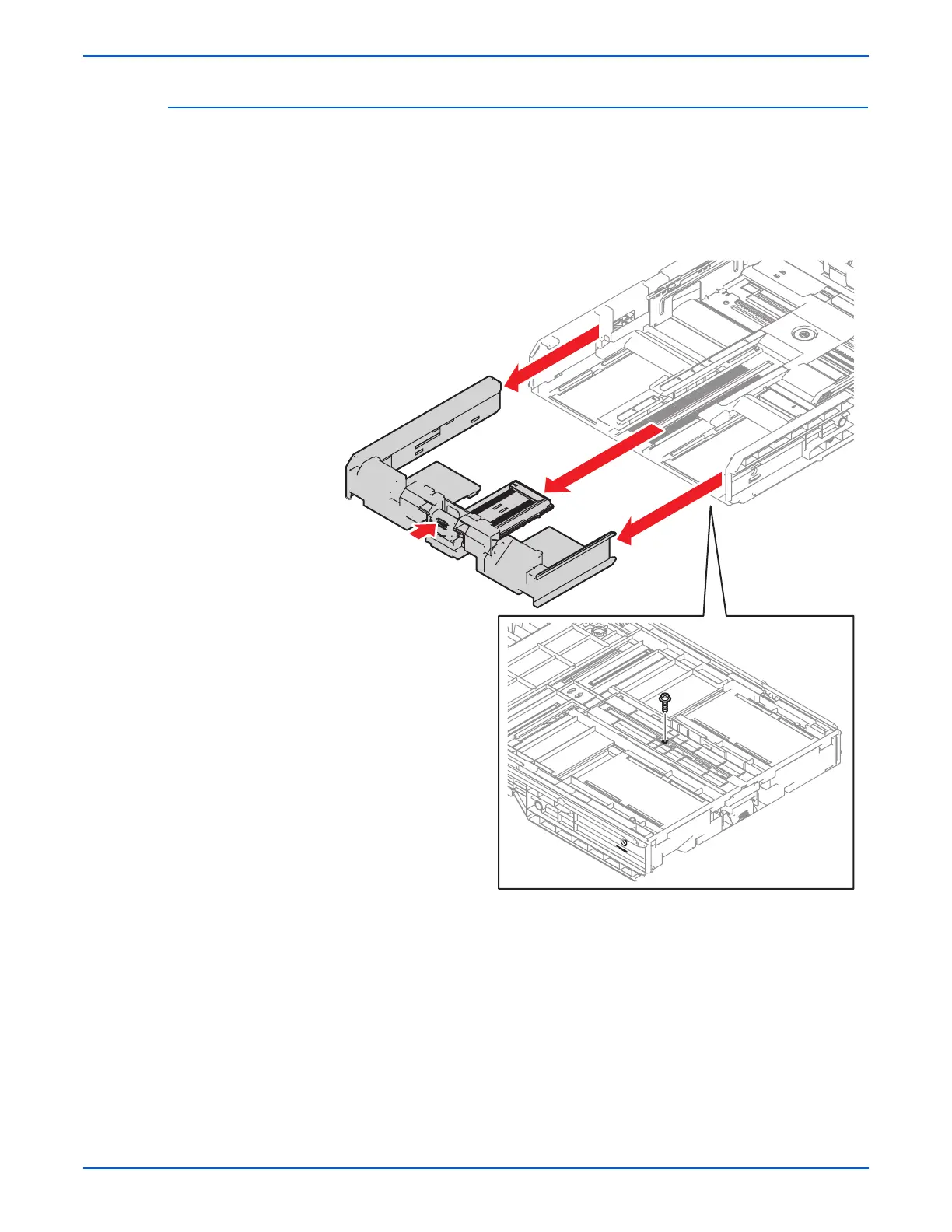

Tray 2 End Guide (PL2.2.22)
1. Remove Tray 2.
2. From the bottom side of Tray 2, remove 1 screw (8 mm, flanged) securing
the Tray 2 End Guide.
3. Remove the Tray 2 End Guide.
4. Remove the rail sections from the Tray 2 End Guide.
s6180-189
