Xerox Phaser 6180 - Tray 3 Left Guide (PL12.2.12)

108 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 3 Left Guide (PL12.2.12)

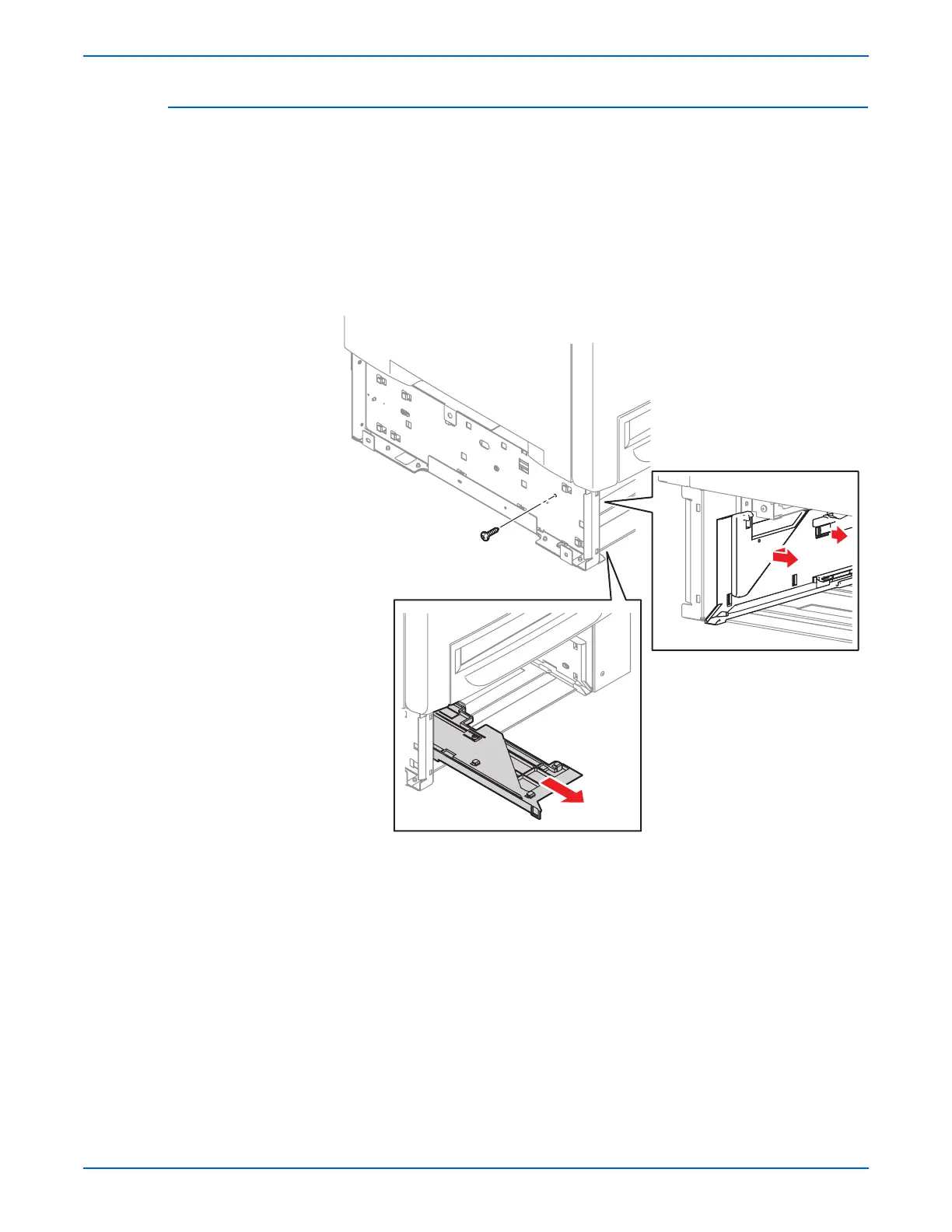

1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove the Tray 3 Left Cover (page 8-97).
3. Remove the Tray 3 Cover (page 8-99).
4. Remove 1 screw (8 mm) securing the Tray 3 Left Guide to the Frame
(PL12.2.1).
5. Release the hook securing the Tray 3 Left Guide to the Frame. Push the
Tray 3 Left Guide forward, release the 9 hooks, and push the Tray 3 Left
Guide downward to remove it.
s6180-231
