30 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
6. Use a screwdriver to release the hook on the Size Set Switch (PL2.2.19)
and remove the Switch from Tray 2.

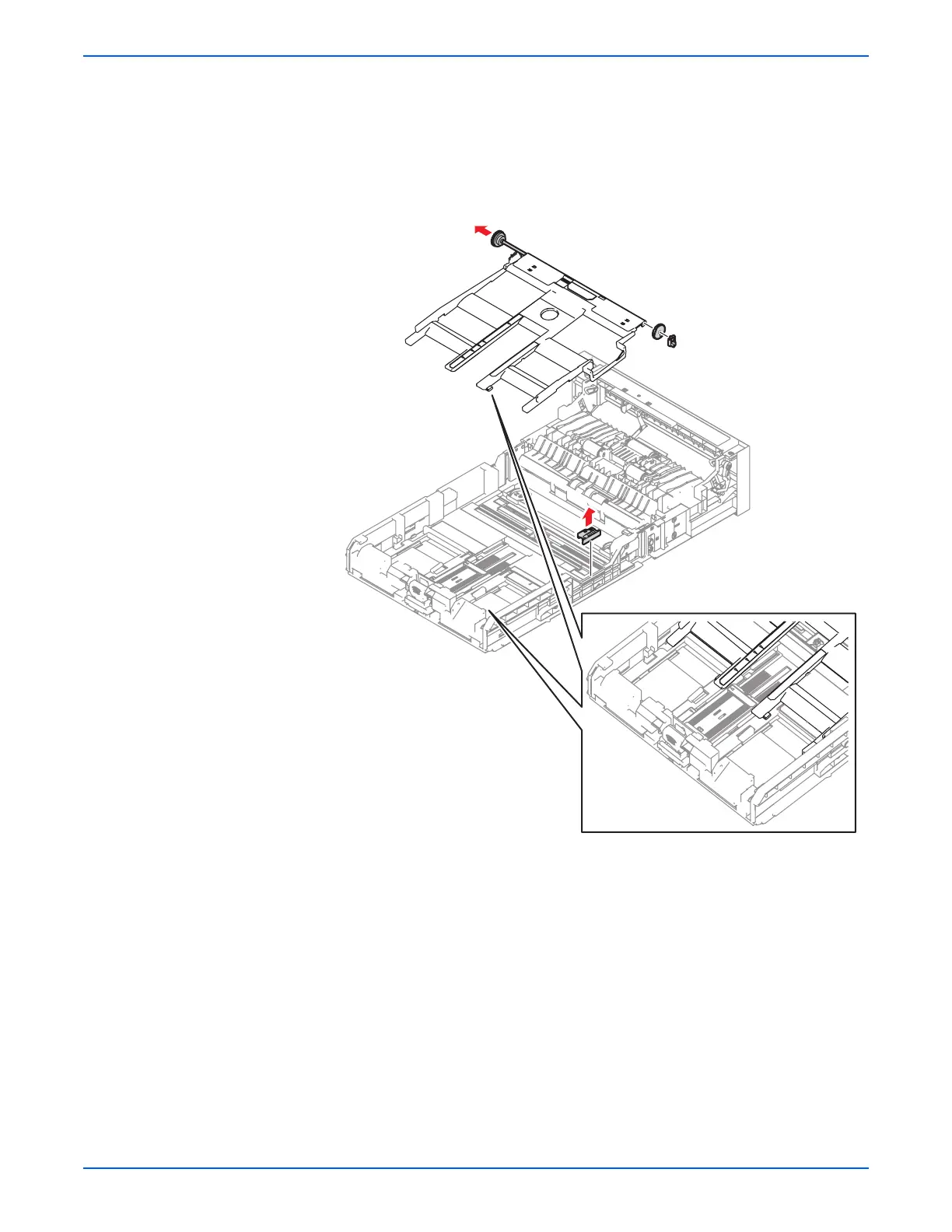

7. Pull the Bottom Plate Shaft out toward the left from the Bottom Plate and
remove the Stopper (PL2.2.3) and the Bottom Oneway Lock Gear
(PL2.2.4).
8. Release the notches on the Bottom Plate from the hooks on the Tray
Housing Base and remove the Bottom Plate.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure the Bottom Plate Release Actuator is shifted to release the
Lock and the Bottom Plate is raised at its highest position.
s6180-185
