Phaser 6180 Color Laser Printer Service Manual 4-49
General Troubleshooting
Cyan Toner Motor
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-7).
4. Remove the Print Cartridges (page 8-9).
5. Use a paper clip to secure the Interlock Switch.

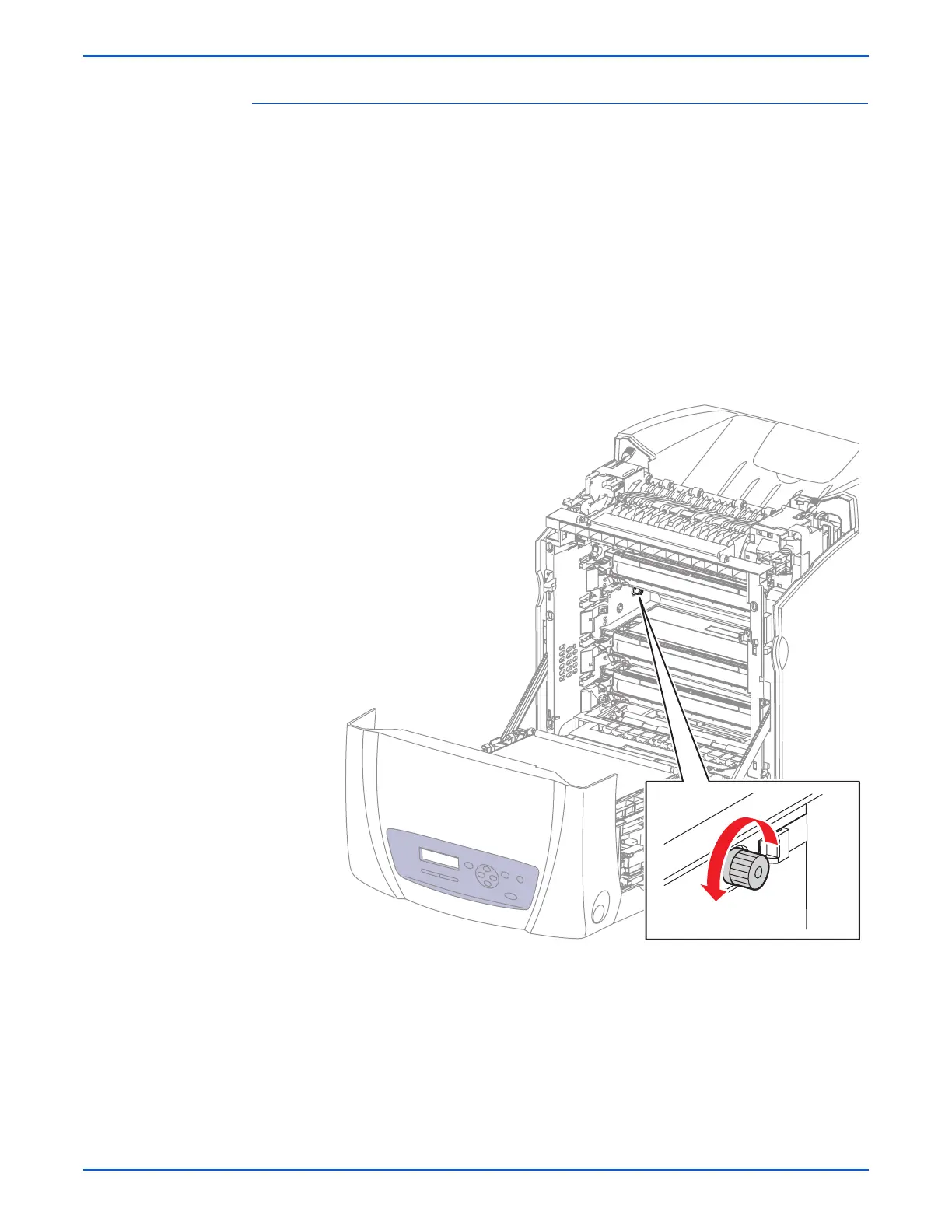

6. Perform the Cyan Toner Motor test: Engine Diag > Motor Test > Cyan
Toner Motor.
7. Verify that the Cyan Toner Motor is running and the gear is rotating.
8. Press the Cancel button to stop the Cyan Toner Motor test.
9. Remove the paper clip from the Interlock Switch.
s6180-375
