Phaser 6180 Color Laser Printer Service Manual 4-53
General Troubleshooting
Tray 1 (MPT) Feed Solenoid
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Tray 2 Motor (FULL2) test: Engine Diag > Motor Test > Tray
2 Motor (FULL2).
4. While the Tray 2 Motor is running, press the Up Arrow button to find Tray
1 (MPT) Feed Solenoid. Press the OK button to run the Tray 1 (MPT)
Feed Solenoid test.
N
o
t
e
The Tray 1 (MPT) Feed Roller rotates when the Tray 2 Motor (FULL2) and
the Tray 1 (MPT) Feed Solenoid tests are executed.
5. Verify that the Tray 2 Motor is working and the Tray 1 Feed Roller is
rotating.
6. Press the Cancel button to stop the Tray 1 Feed Solenoid test.
7. Press the Down Arrow button to find Tray 2 Motor (FULL2).
8. Press the Cancel button to stop the Tray 2 Motor test.

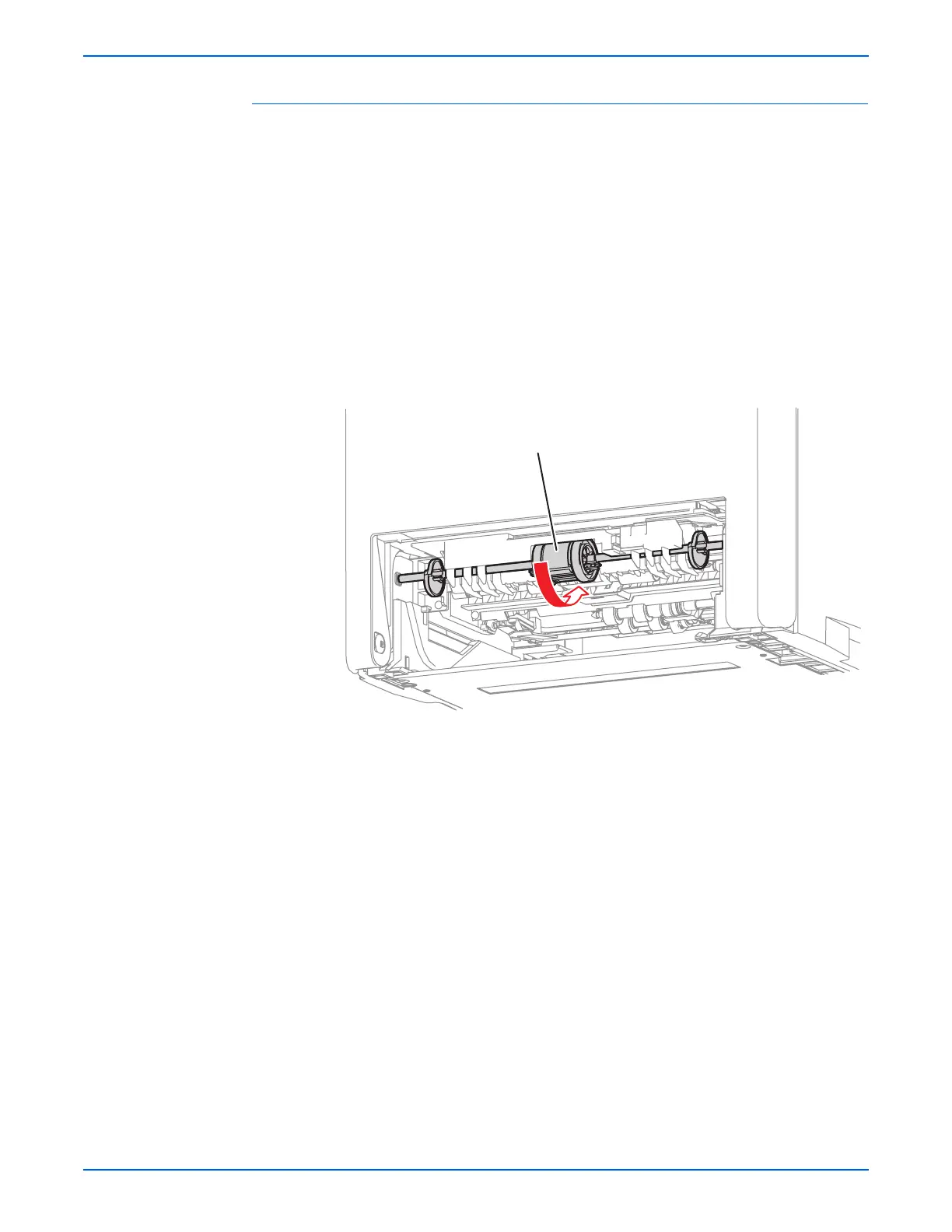

Tray 1 (MPT) Feed Roller
s6180-379
