16 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
7. Open the Tray 1 (MPT) Cover (PL1.2.24).
8. Release the hook of the Shaft Pivot on the left and right side of the Front
Cover. Pull the Shaft Pivot outward while holding the Front Cover and
remove the Cover from the Left and Right Links (PL 7.1.13).
9. Release the hooks of the Shaft Pivot (PL 1.2.30) securing the Front Cover
to the printer from the outside of Tray 1 (MPT), and pull out the Shaft
Pivot.
10. Remove the Front Cover together with the Tray 1 (MPT) Cover.
11. Remove Tray 1 (MPT) Cover from the Front Cover.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure to tilt the Front Cover accordingly when mounting the Front
Cover. Push the Shaft Pivot in all the way to secure the hooks of the
Shaft Pivots to the Left and Right Links.

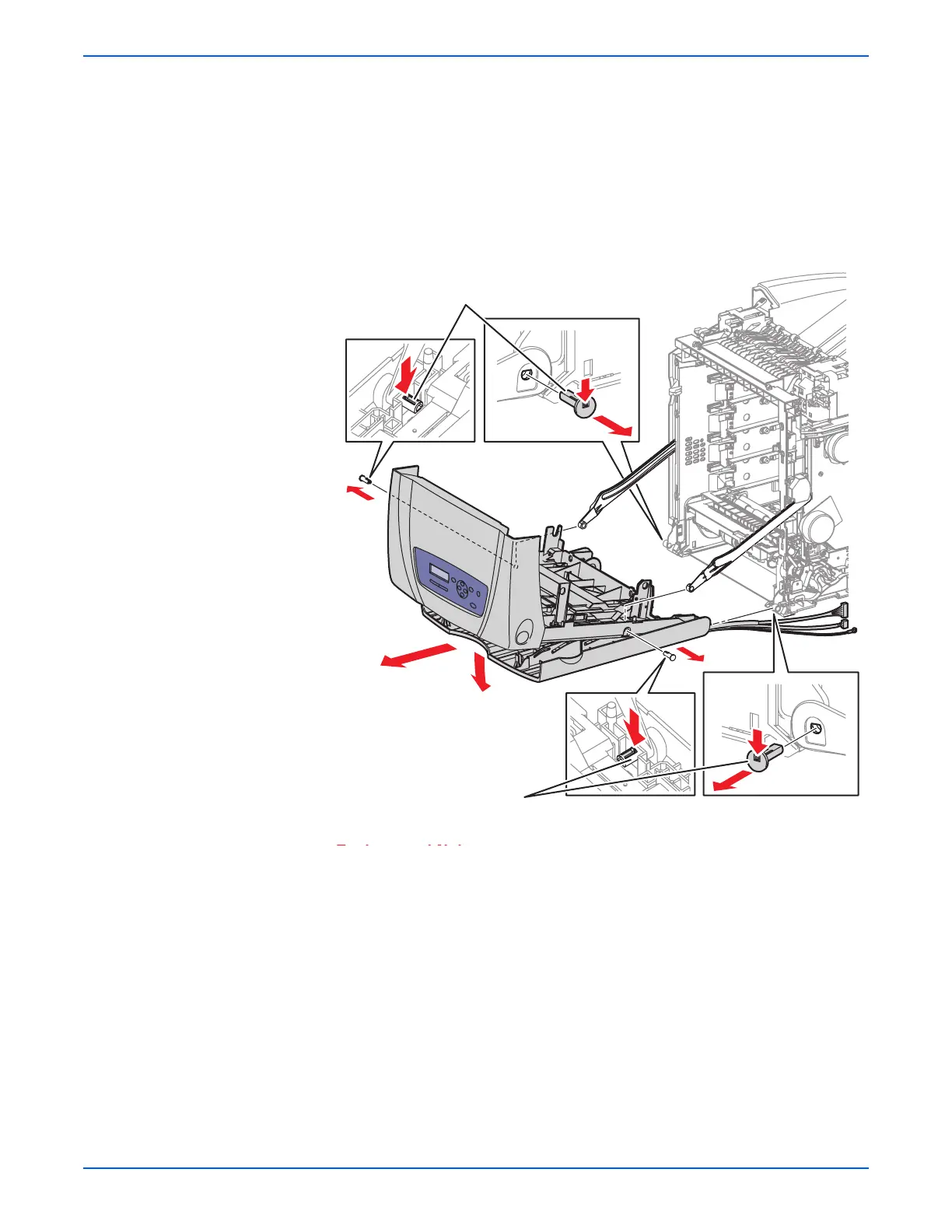

s6180-031
Shaft Pivots
Right
Link
Left Link
Shaft Pivots
