4. Hold the knob of the Right Side Guide and move the Guide toward the
inside.
5. Move the Left Side Guide toward the inside.
6. While pressing down on the hooks securing the Right Guide, release the
claws from the notches of the Tray Base. Remove the Right Side Guide.
7. While pressing down on the hooks securing the Left Guide, release the
claws from the notches of the Tray Base. Remove the Left Side Guide.

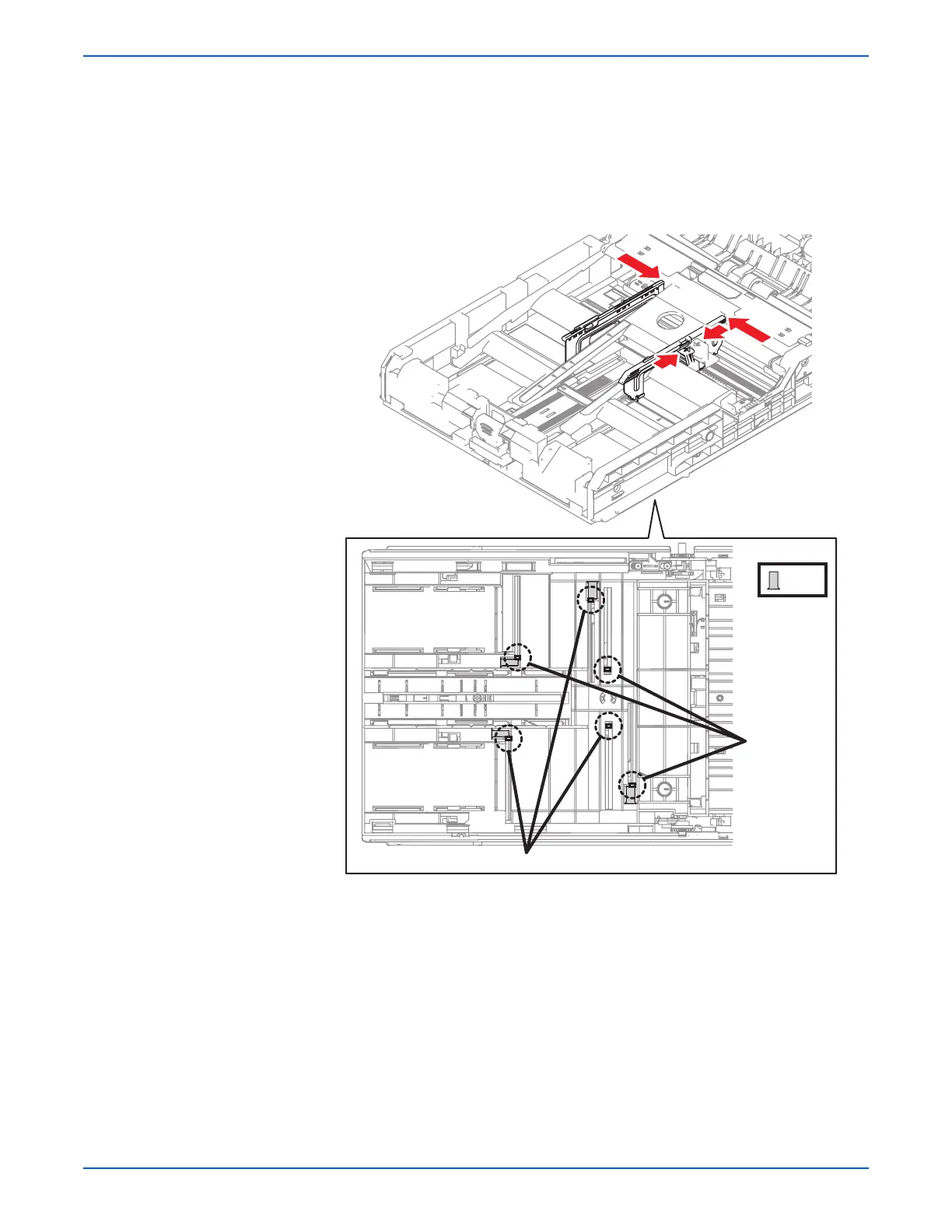

s6180-187
Left Side Guide
Right Side
Guide
Hook
