Phaser 6180 Color Laser Printer Service Manual 45
Service Parts Disassembly
Caution
Ensure to hold the Feeder while removing the 2 screws to prevent the
Feeder drop to the bottom of the printer.

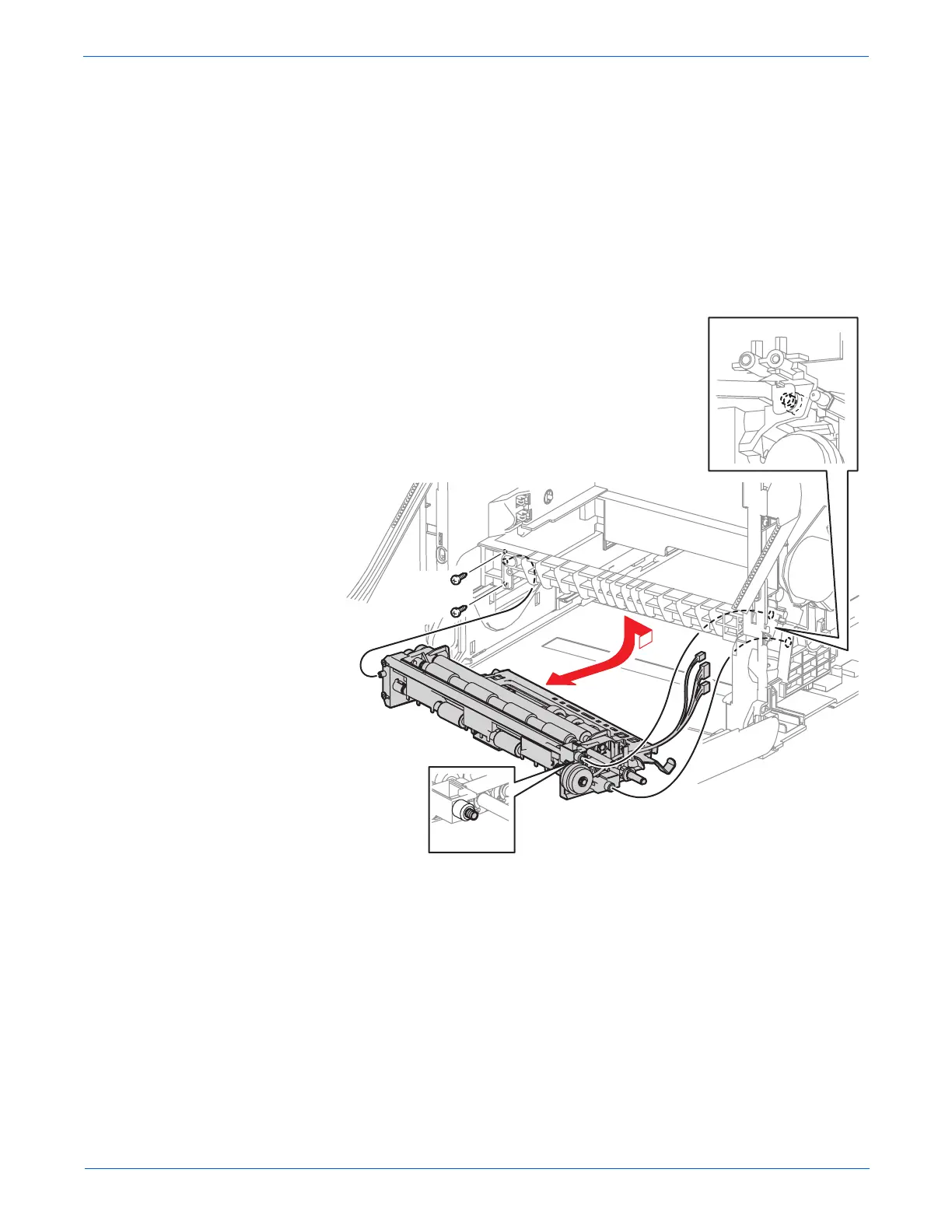

13. Shift the CAM Shaft on the left side to access the screws. Remove 2
screws (10 mm) securing the Feeder.
14. Move the Feeder down and forward to move the notch on the left side of
the Feeder out of the hole on the printer. Slightly shift the Feeder toward
the rear left side to remove the notches (1 on the Earth Spring and 1 on
the right side of the Feeder) out of the holes on the printer.
15. Pull the Shaft section and the Clutch on the right side of the Feeder out of
the hole on the printer and remove the Feeder.
s6180-029
To Next Page
