Phaser 6180 Color Laser Printer Service Manual 69
Service Parts Disassembly

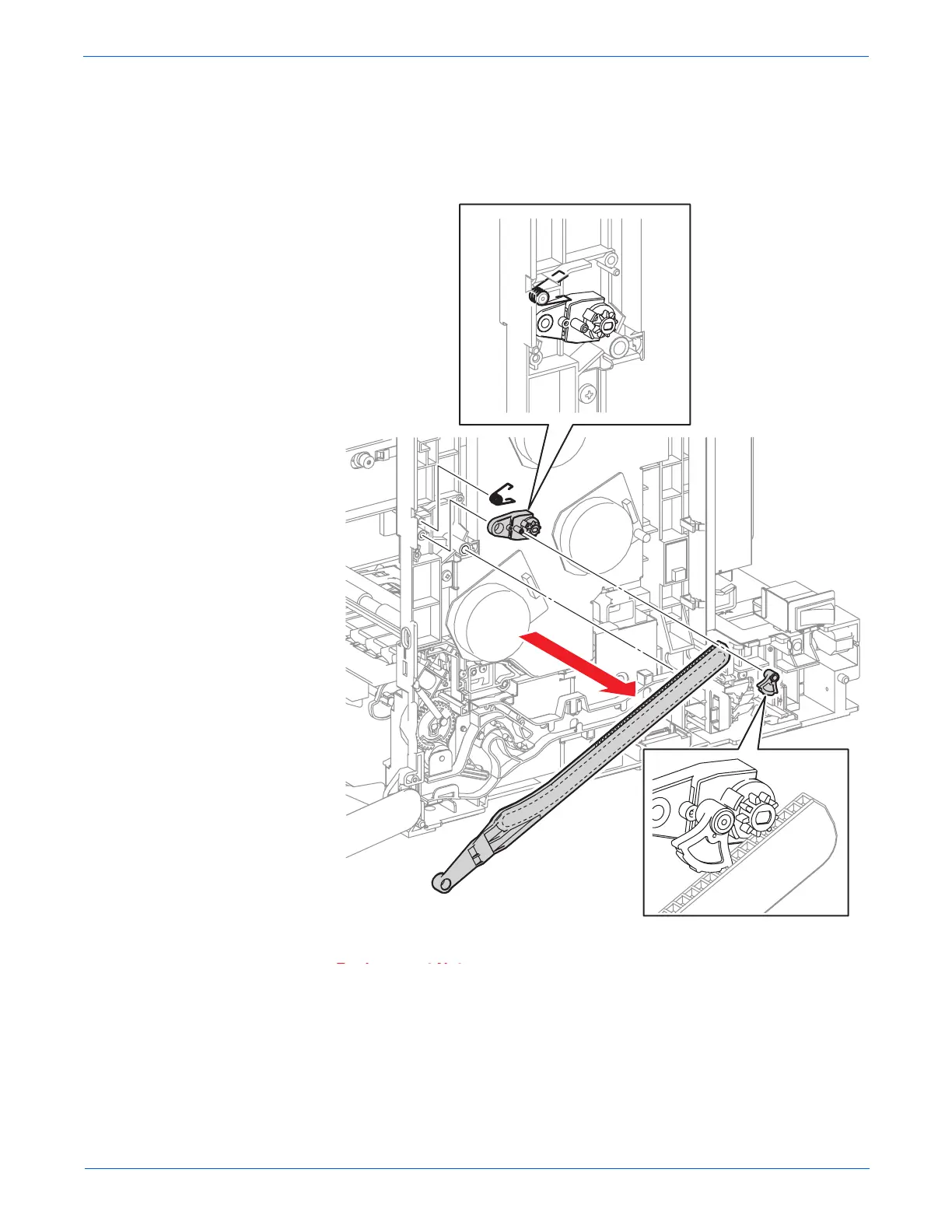

7. Remove the Release Lever (PL7.1.4).
8. Remove the Right Link from the printer.
9. Remove the Support Spring (PL7.1.8).
10. Remove the Damper Holder (PL7.1.6) together with the Oil Damper
(PL7.1.7).
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure the orientation of the Damper Holder is correct. Push the
cylinder of the Release Lever toward the Damper Holder side.
s6180-033
