Phaser 6180 Color Laser Printer Service Manual 91
Service Parts Disassembly
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
DO NOT use the NVRAM ROM from the new I/P Board.
DO NOT apply pressure on the I/P Board when removing the NVRAM
ROM.
Make sure to move the NVRAM ROM from the old I/P Board to the
new I/P Board. Carefully check the correct orientation of the NVRAM
ROM when installing the NVRAM ROM.

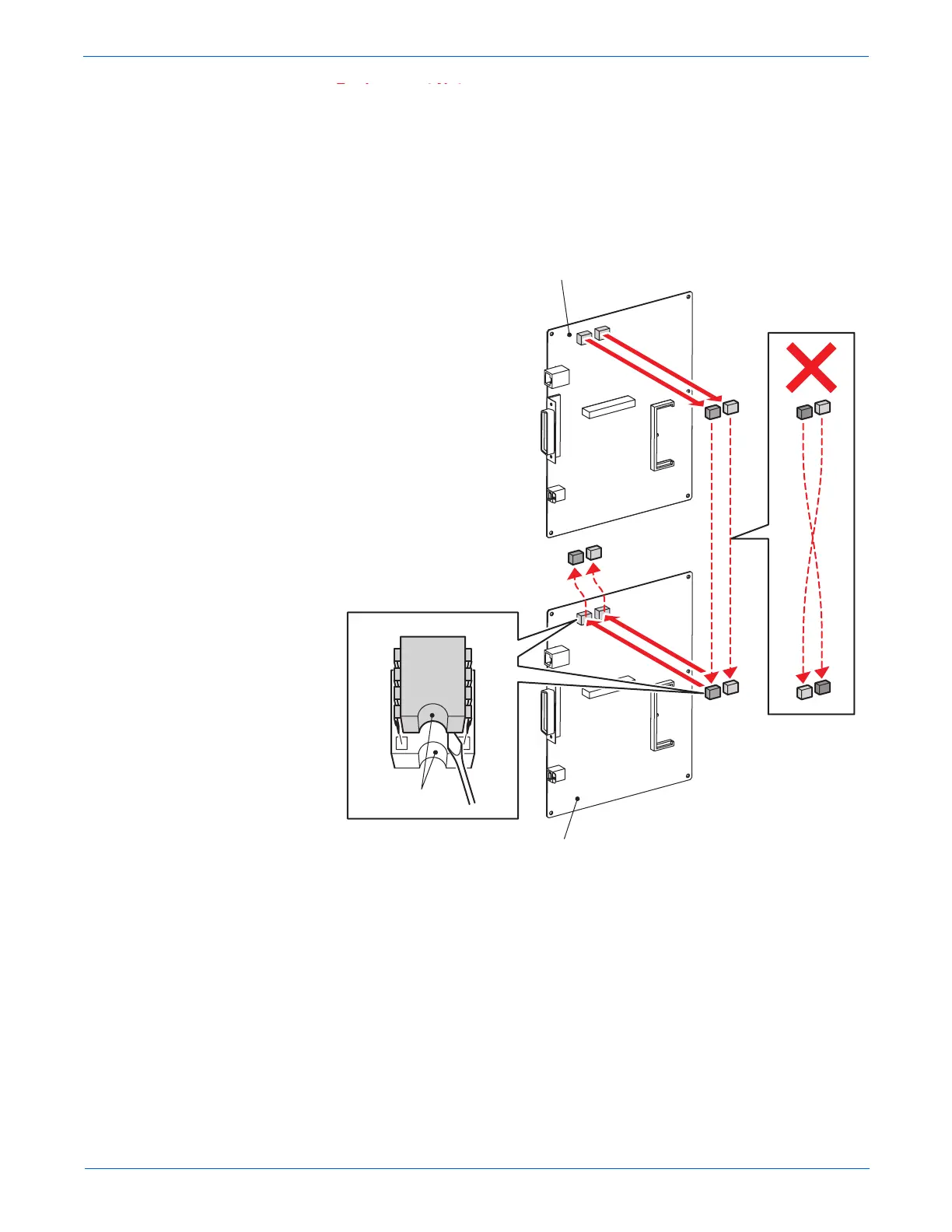

Old Image Processor Board
New Image Processor Board
Notch
s6180-096
