Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 2-65
Theory of Operation
Simplex Mode
Process

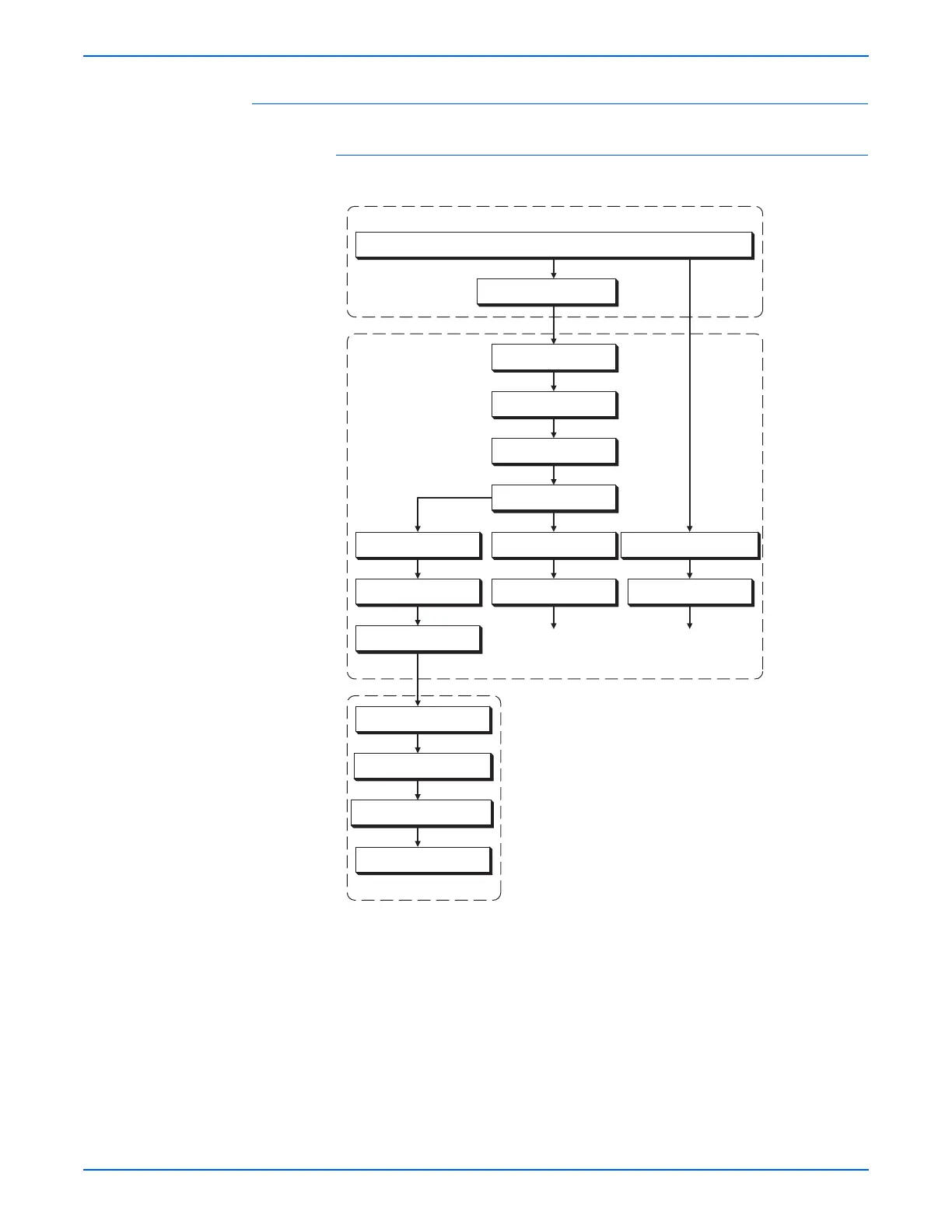

s6280-107
Simplex Mode
Main Drive Assembly
Sub Motor
Exit Clutch Assembly
Exit Idler Gear 6
Exit Idler Gear 6
Exit Idler Gear 5
Exit Idler Gear 4
Exit Idler Gear 3
Exit Idler Gear 2
Heat Roller Idler Gear
Duplex Idler Gear 1
Duplex Idler Gear 2
Exit Gear
Heat Roller Gear
[Exit Roller]
Fuser
[Heat Roller]
[Name of Moving Parts]
Duplex Gear 25Z
Duplex Gear 21Z 25Z
Duplex Idler Gear 21Z
Duplex Clutch
Duplex Module
