4-54 Phaser 6280 Color Laser Printer Service Manual
General Troubleshooting
Tray 2 Feed Clutch
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Tray 2 Feed Motor (FULL2) test: Engine Diag > Motor Test >
Tray 2 Motor (FULL2).
4. While the Tray 2 Motor is running, press the Up Arrow button to find Tray
2 Feed Clutch. Press the OK button to run the Tray 2 Feed Clutch test.
The Tray 2 Feed Rollers rotate when the Tray 2 Motor (FULL2) and the
Tray 2 Feed Clutch tests are executed.
5. Verify that the Tray 2 Motor is working and the Tray 2 Feed Rollers are
rotating.
6. Press the Cancel button to stop the Tray 2 Feed Clutch test.
7. Press the Down Arrow button to find Tray 2 Motor (FULL2).
8. Press the Cancel button to stop the Tray 2 Motor test.

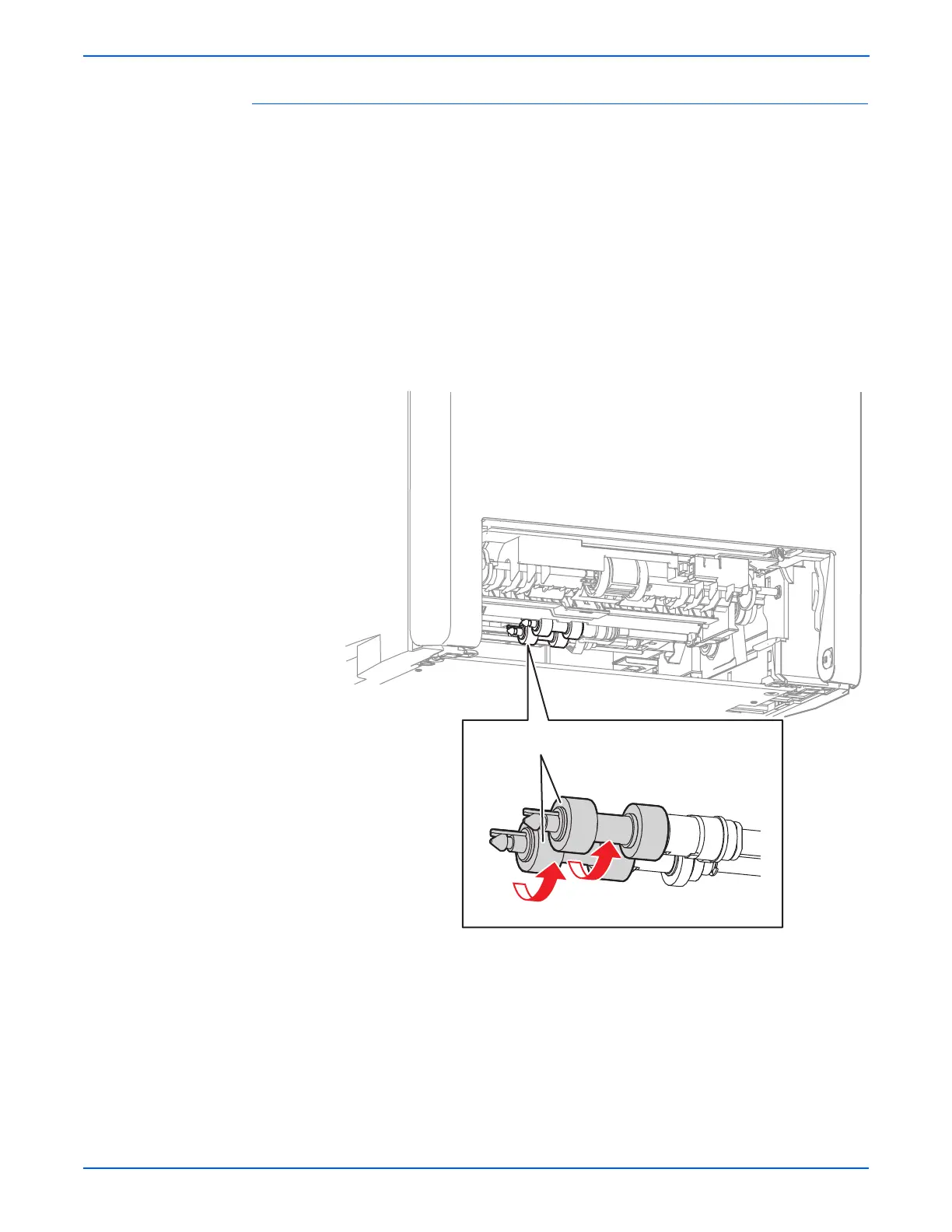

s6280-149
Tray 2 Feed Rollers
To Next Page
