General Troubleshooting
Drum Erase Lamp (K)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Print Cartridges (page 8-10).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Drum Erase Lamp K test: Engine Diag > Motor Test > Drum
Erase Lamp K.
6. Verify that the Lamp is operating.
7. Press the Cancel button to stop the Drum Erase Lamp K test.
8. Remove the paper clip from the Interlock Switch.

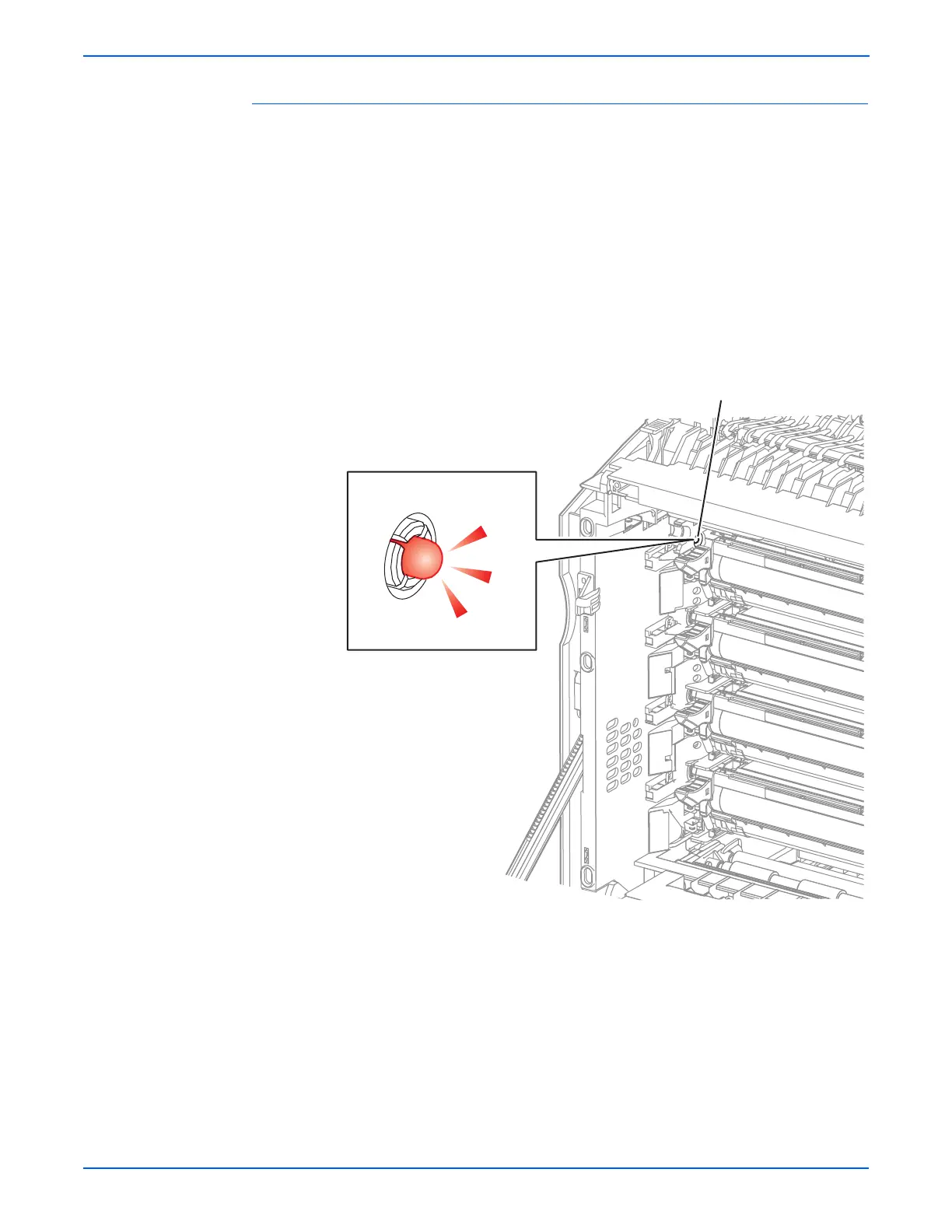

s6280-155
Black Erase Lamp
