Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 4-61
General Troubleshooting
Drum Erase Lamp (Y/M/C)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Print Cartridges (page 8-10).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Drum Erase Lamp YMC test: Engine Diag > Motor Test >
Drum Erase Lamp YMC.
6. Verify that the Lamps are operating.
7. Press the Cancel button to stop the Drum Erase Lamp YMC test.
8. Remove the paper clip from the Interlock Switch.

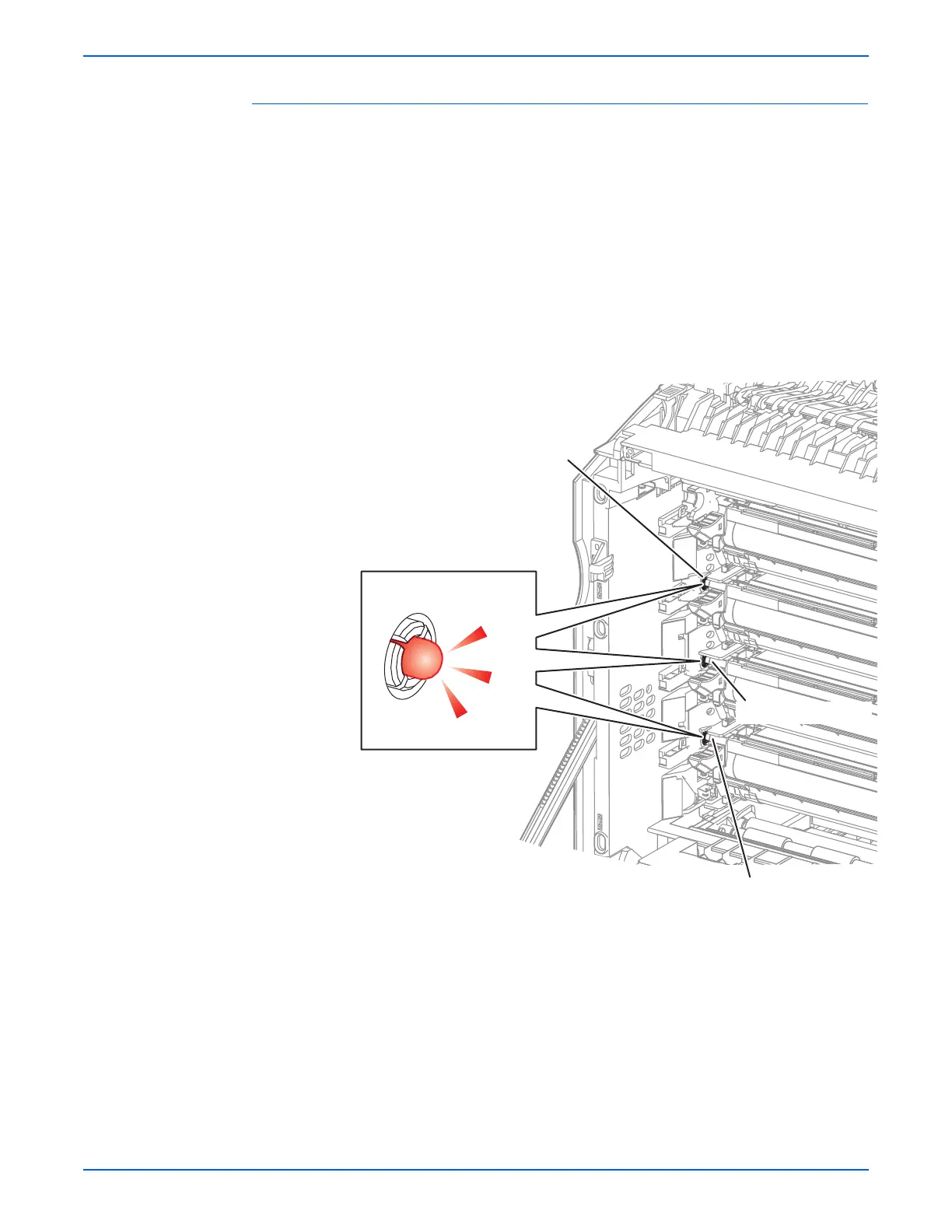

s6280-156
Cyan Erase Lamp
Magenta Erase Lamp
Yellow Erase Lamp

Xerox Phaser 6280 Specifications

General

Print Resolution	Up to 600 x 600 x 4 dpi
Processor	400 MHz
Operating System Compatibility	Windows, Mac OS, Linux
Print Technology	Laser
Monthly Duty Cycle	70, 000 pages
Memory	256 MB (standard)
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Legal, Letter
Maximum Paper Size	8.5 x 14 inches
