4-62 Phaser 6280 Color Laser Printer Service Manual
General Troubleshooting
Exit Clutch
1. Enter the Service Diagnostic menu (page 4-5).
2. Run the Exit Clutch test: Engine Diag > Motor Test > Exit Clutch.
3. Verify that the Exit Roller is not rotating.
4. Press the Cancel button to stop the test.
Combination Test
1. Enter the Service Diagnostic menu (page 4-5).
2. Perform the Main Motor (FULL2) test: Engine Diag > Motor Test > Main
Motor (FULL2).
3. While the Main Motor is running, press the Up Arrow button to find Exit
Clutch. Press the OK button to run the Exit Clutch test.

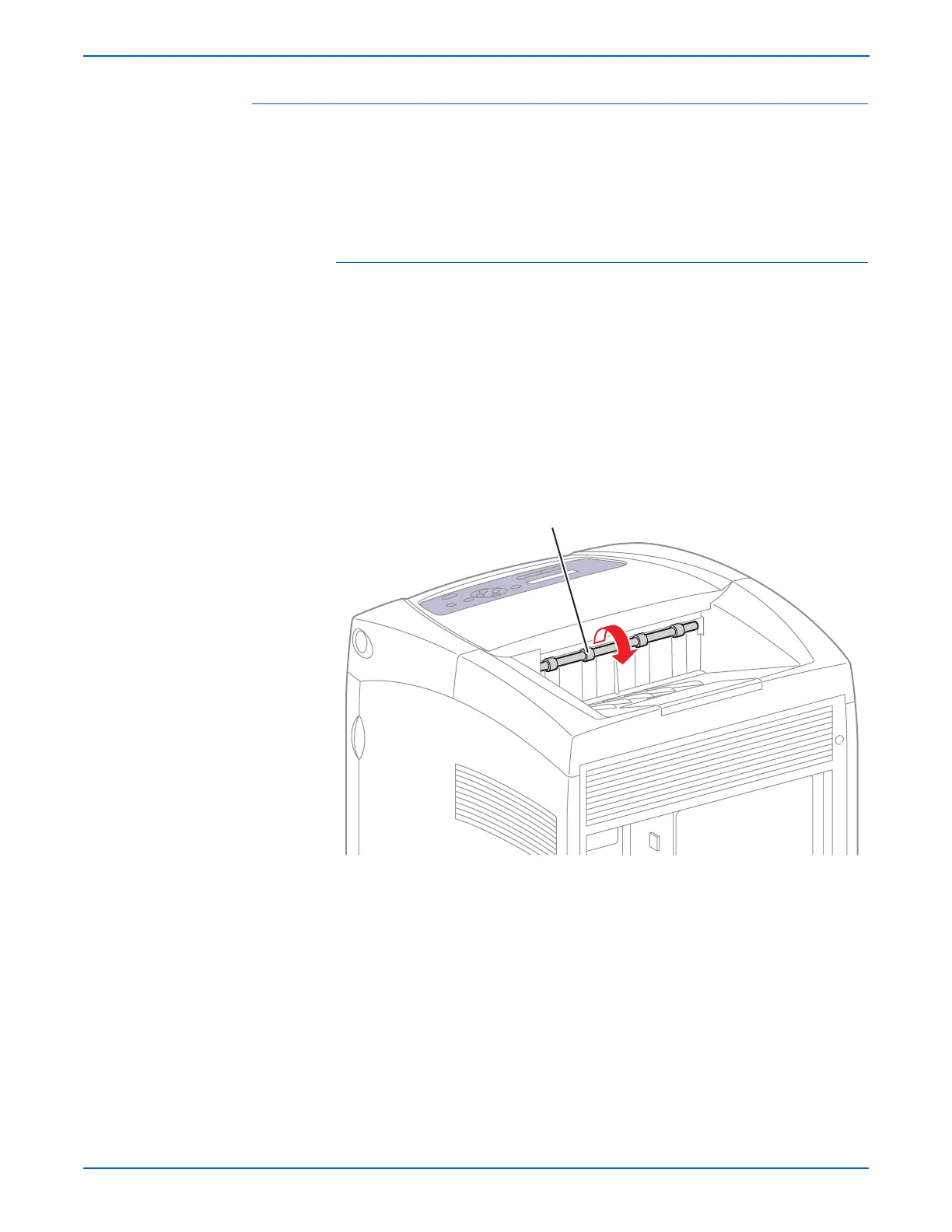

The Exit Roller rotates when the Main Motor (FULL2) and the Exit Clutch
tests are executed.
4. Verify that the Main Motor is working and the Exit Roller is rotating.
5. Press the Cancel button to stop the Exit Clutch test.
6. Press the Down Arrow button to find Main Motor (FULL2).
7. Press the Cancel button to stop the Main Motor test.
