8-74 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
5. Release the wiring harnesses from the PH Drive Duct Assembly
(PL8.1.8).

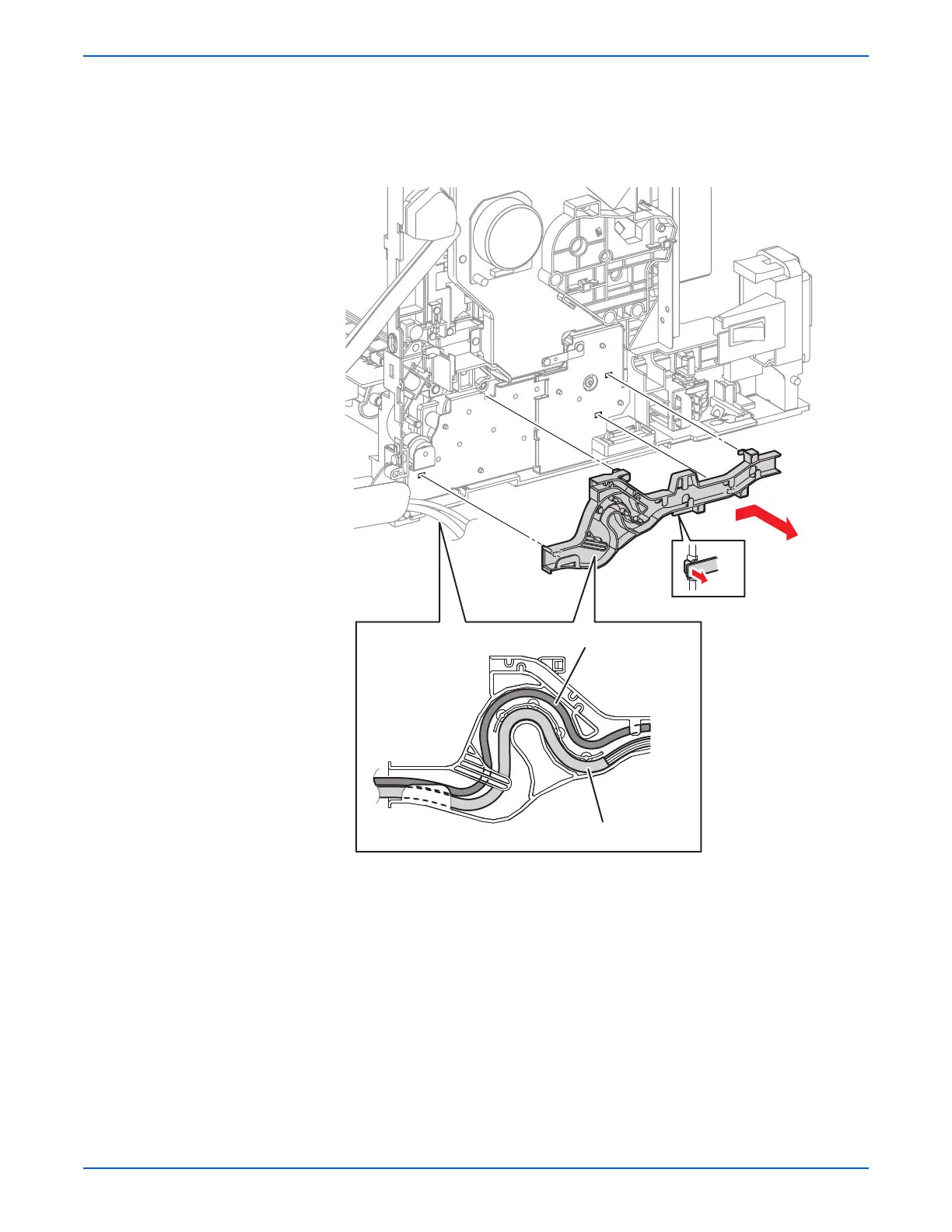

6. Release the 4 hooks of the PH Drive Duct Assembly from the PH Drive
Assembly (PL8.1.7). Shift the PH Drive Duct Assembly toward the rear
side of the printer and remove it from the PH Drive Assembly.
s6280-228
Control Panel Harness
Front Cover Harness
To Next Page
