Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-75
Service Parts Disassembly
7. Remove 1 screw (6 mm) and 1 screw (tap, 10 mm) securing the Ground
Plate (PL8.1.11) to the Main Drive Assembly (PL8.1.2) and the PH Drive
Assembly.
8. Remove the Ground Plate.
9. Remove 3 screws (tap, 10 mm) securing the PH Drive Assembly to the
printer.
Caution
DO NOT separate the PH Drive Assembly from the printer, because they
are connected with the wiring harness.
10. Remove the PH Drive Assembly from the printer.
11. Disconnect the Drive Assembly connector P/J251.
Replacement Note
Replacement Note
Ensure to place the wiring harness connecting the Developer Motor of
the Main Drive (PL8.1.2) through the back of the hook on top of the
Drive Assembly.
Pay attention to the direction of the MPT Feed Spring. Attach the
hyperelliptic side of the Tray 1 (MPT) Feed Spring to the Tray 1 (MPT)
Gear.

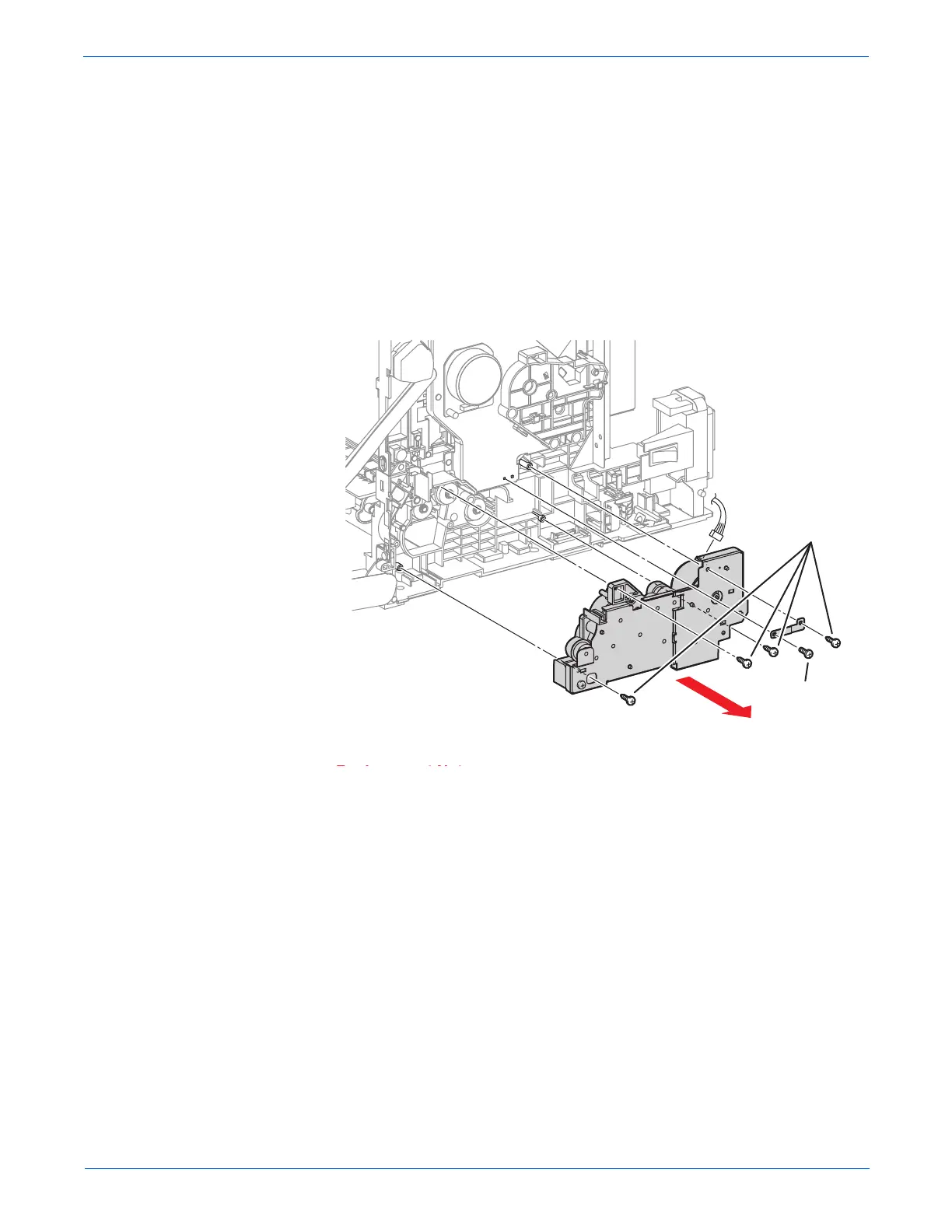

s6280-229
6 mm
10 mm
