3.
Push down the installation pin on the terminal board with a screwdriver
Push down
the
installation
pin with a
screwdriver.
4.
While holding down the installation pin from step 3, slide the removable terminal block in the direction of the arrows in
Figure 7.7 .

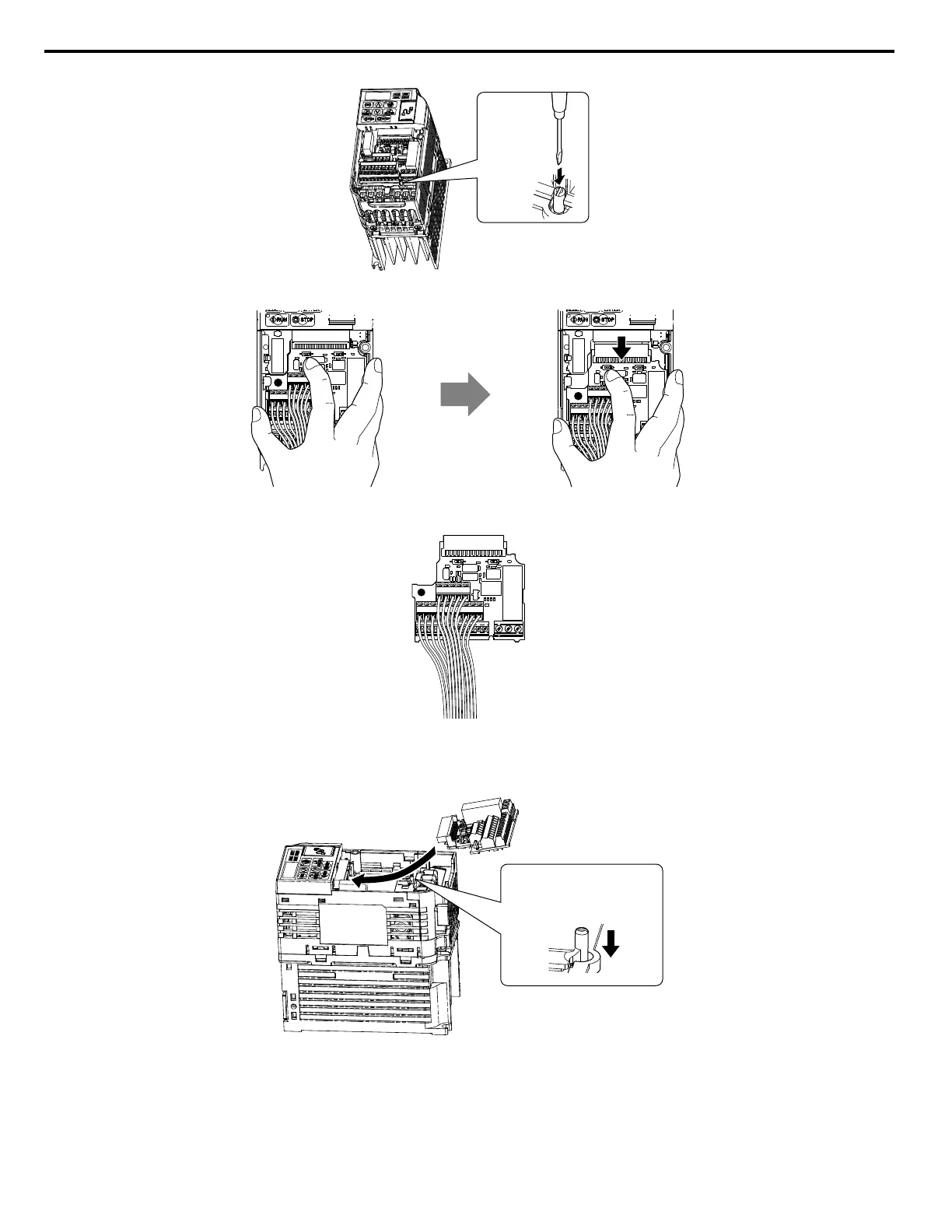

Figure 7.7 Removing the Terminal Board
Figure 7.8 Removable Terminal Board disconnected from the drive
n
Terminal Board Replacement
1.
Replace the removable terminal block on the drive according to
Figure 7.9
Push down on the fixed pin at
the lower surface of the terminal
block, slide the terminal block
in the direction indicated by
the arrow.
Figure 7.9 Terminal Board Replacement
2.
Ensure the terminal block is firmly fastened to the connector.
