YASKAWA V1000 Series Technical Manual

Single-Phase 200 V Class
L3 L2 L1L3 L2 L1
E
L2
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
C
D
H
H
D
D
I
E
J
B
F
G
A
A
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface (remove any paint
or sealant)
E – Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Max. distance between drive and
noise filter
J – EMC noise filter

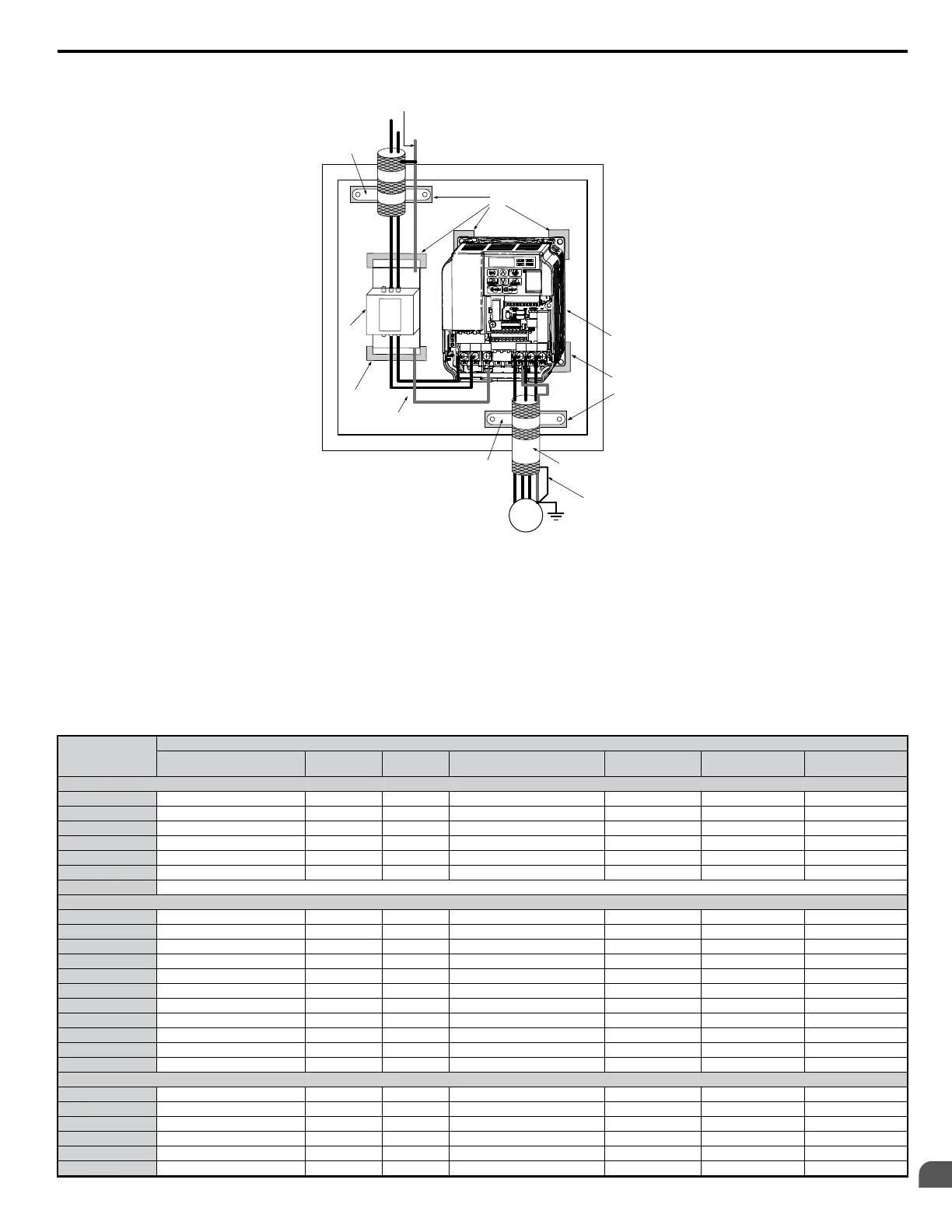

Figure D.5 EMC Filter and Drive Installation for CE Compliance
(Single-Phase 200 V Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the EN 61800-3, category C1 requirements.
Table D.2 EN 61800-3 Category C1 Filters
Drive CIMR-Vo
Filter Data (Manufacturer: Schaffner)
Type
Rated Current
[A]
Weight [kg]
Dimensions
[W x L x H] (mm)
Y x X
Drive Mounting
Screw A
Filter Mounting
Screw
200 V Single-Phase Units
BA0001 FS 5855-10/07 10 0.4 71 x 169 x 45 51 x 156 M4 M5
BA0002 FS 5855-10/07 10 0.4 71 x 169 x 45 51 x 156 M4 M5
BA0003 FS 5855-10/07 10 0.4 71 x 169 x 45 51 x 156 M4 M5
BA0006 FS 5855-20/07 20 0.7 111 x 169 x 50 91 x 156 M4 M5
BA0010 FS 5855-20/07 20 0.7 111 x 169 x 50 120 x 161 M4 M5
BA0012 FS 5855-30/07 30 1.0 144 x 174 x 50 120 x 161 M4 M5
BA0018 Contact Yaskawa
200 V Three-Phase Units
2A0001 FS 5856-10-07 10 0.7 82 x 194 x 50 62 x 181 M4 M5
2A0002 FS 5856-10-07 10 0.7 82 x 194 x 50 62 x 181 M4 M5
2A0004 FS 5856-10-07 10 0.7 82 x 194 x 50 62 x 181 M4 M5
2A0006 FS 5856-10-07 10 0.7 82 x 194 x 50 62 x 181 M4 M5
2A0010 FS 5856-20-07 20 0.8 111 x 169 x 50 91 x 156 M4 M5
2A0012 FS 5856-20-07 20 0.8 111 x 169 x 50 91 x 156 M4 M5
2A0020 FS 5856-30-07 30 0.9 144 x 174 x 50 120 x 161 M4 M5
2A0030 FS 5973-35-07 35 1.4 141 x 330 x 46 115 x 313 M4 M5
2A0040 FS 5973-60-07 60 3.0 206 x 355 x 60 175 x 336 M5 M6
2A0056 FS 5973-100-07 60 3.0 206 x 355 x 60 175 x 336 M5 M6
2A0069 FS 5973-100-07 100 4.9 236 x 408 x 80 205 x 390 M8 M8
200 V Three-Phase Units
4A0001 FS 5857-5/07 5 0.5 111 x 169 x 45 91 x 156 M4 M5
4A0002 FS 5857-5/07 5 0.5 111 x 169 x 45 91 x 156 M4 M5
4A0004 FS 5857-10/07 10 0.75 111 x 169 x 45 91 x 156 M4 M5
4A0005 FS 5857-10/07 10 0.75 111 x 169 x 45 91 x 156 M4 M5
4A0007 FS 5857-10/07 10 0.75 111 x 169 x 45 91 x 156 M4 M5
4A0009 FS 5857-20/07 20 1.0 144 x 174 x 50 120 x 161 M4 M5
D.2 European Standards
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
351
D
Standards Compliance

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
