YASKAWA V1000 Series Technical Manual

Drive CIMR-Vo
Filter Data (Manufacturer: Schaffner)
Type
Rated Current
[A]
Weight [kg]
Dimensions
[W x L x H] (mm)
Y x X
Drive Mounting
Screw A
Filter Mounting
Screw
4A0011 FS 5857-20/07 20 1.0 144 x 174 x 50 120 x 161 M4 M5
4A0018 FS 5972-35-07 35 2.1 206 x 355 x 50 175 x 335 M4 M5
4A0023 FS 5972-35-07 35 2.1 206 x 355 x 50 175 x 335 M4 M5
4A0031 FS 5972-60-07 60 4.0 236 x 408 x 65 390 x 205 M4 M5
4A0038 FS 5972-60-07 60 4.0 236 x 408 x 65 390 x 205 M6 M6
Note:
Noise filters for models CIMR-Vo2A0030 through 0069 are in compliance with IEC61800–3, Category 2. All other models comply with Category 1.
H
A
X
L
PE
W
Y
LINE
LOAD

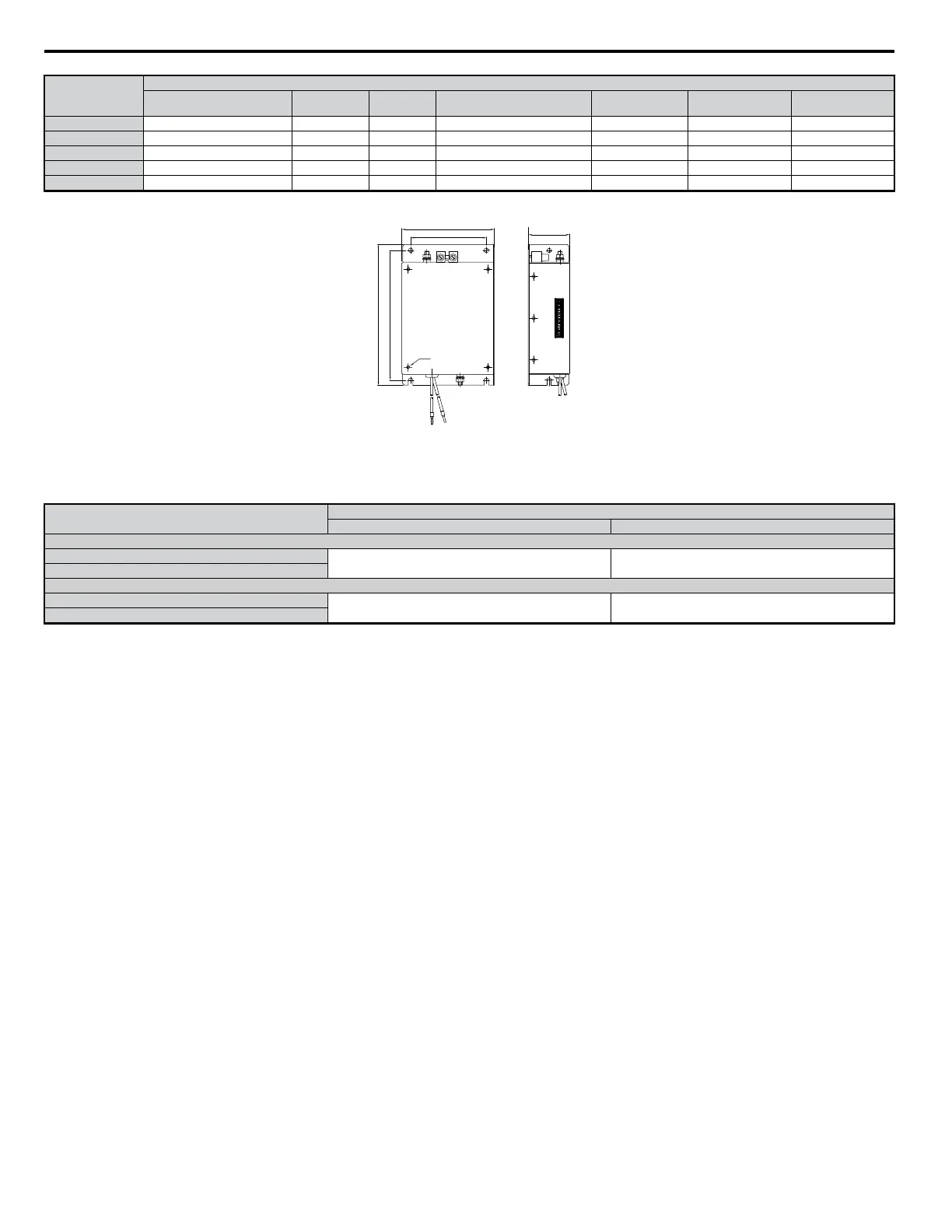

Figure D.6 EMC Filter Dimensions
n
DC Reactors
Table D.3 DC Reactors for Harmonics Reduction
Inverter Type
CIMR-Vo
DC Reactor
Model Rating
200V Three Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
400 V Three Phase Units
4A0002
UZDA-B
3.2 A
28 mH
4A0004
Note: Contact Yaskawa for information about DC reactors for other models.
D.2 European Standards
352
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
