Akai MPC Live User Manual

140

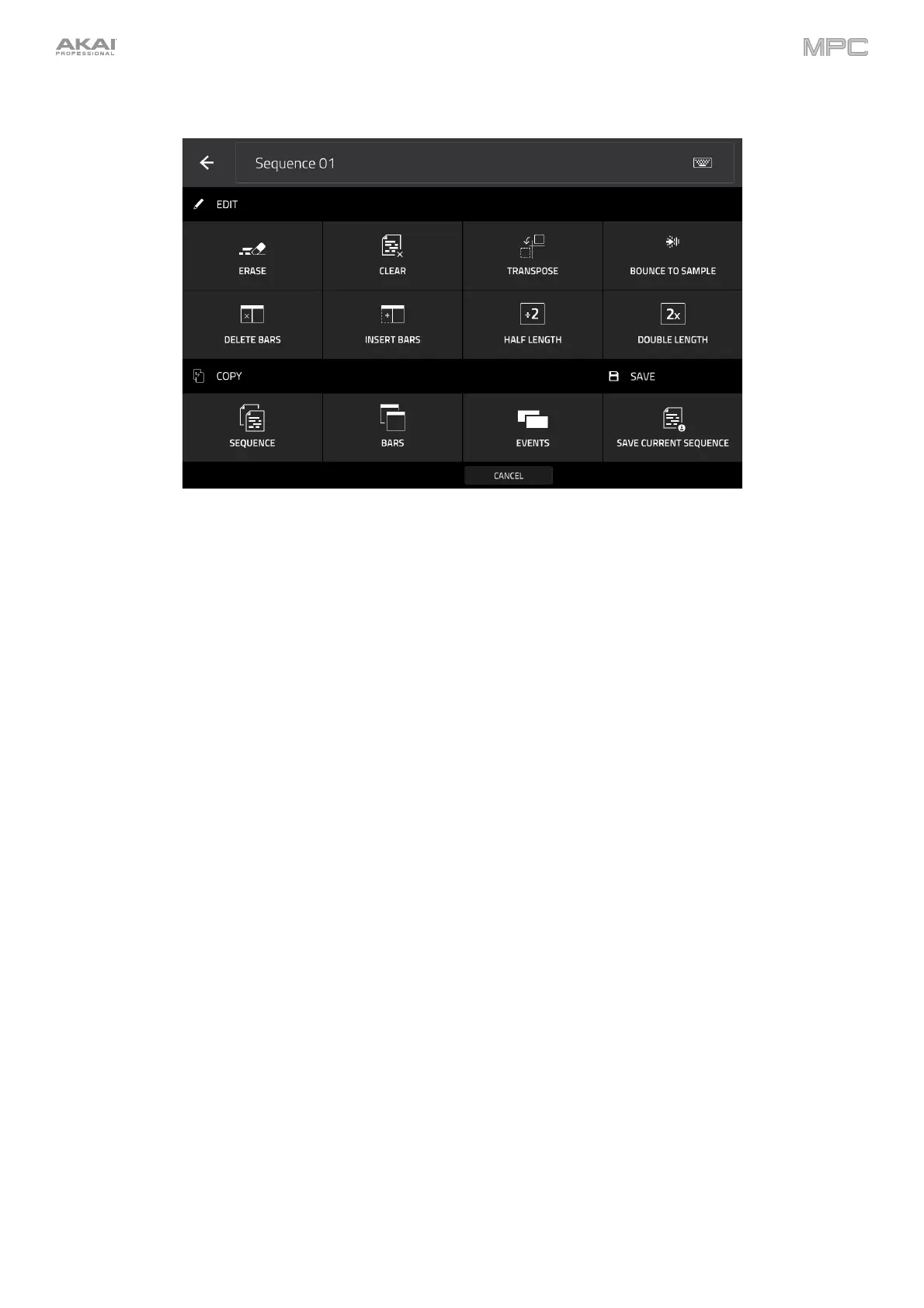

To edit the sequence, tap the pencil icon on the right edge of the section. The Sequence Edit/Copy window will open.
You can use any of these functions as described below, though there are fewer options for audio tracks than for MIDI
tracks.
To return to Main Mode, tap Cancel or the left arrow () in the upper-left corner of the screen. Alternatively, press
Main.
To edit the name of the sequence, tap the top of the screen and use the virtual keyboard that appears.

Akai MPC Live Specifications

General

Built-in display	Yes
Mixer section	-
Product color	Black
Number of drum pads	16
Built-in optical drive	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	2
Headphone outputs	1
USB connector type	USB Type-A, USB Type-B
USB ports quantity	3
Headphone connectivity	3.5 mm
Cables included	USB

Weight and Dimensions

Depth	223 mm
Width	410 mm
Height	67.5 mm
Weight	2721.55 g
