Akai MPC Live

483
WayOutWare Odyssey (continued)

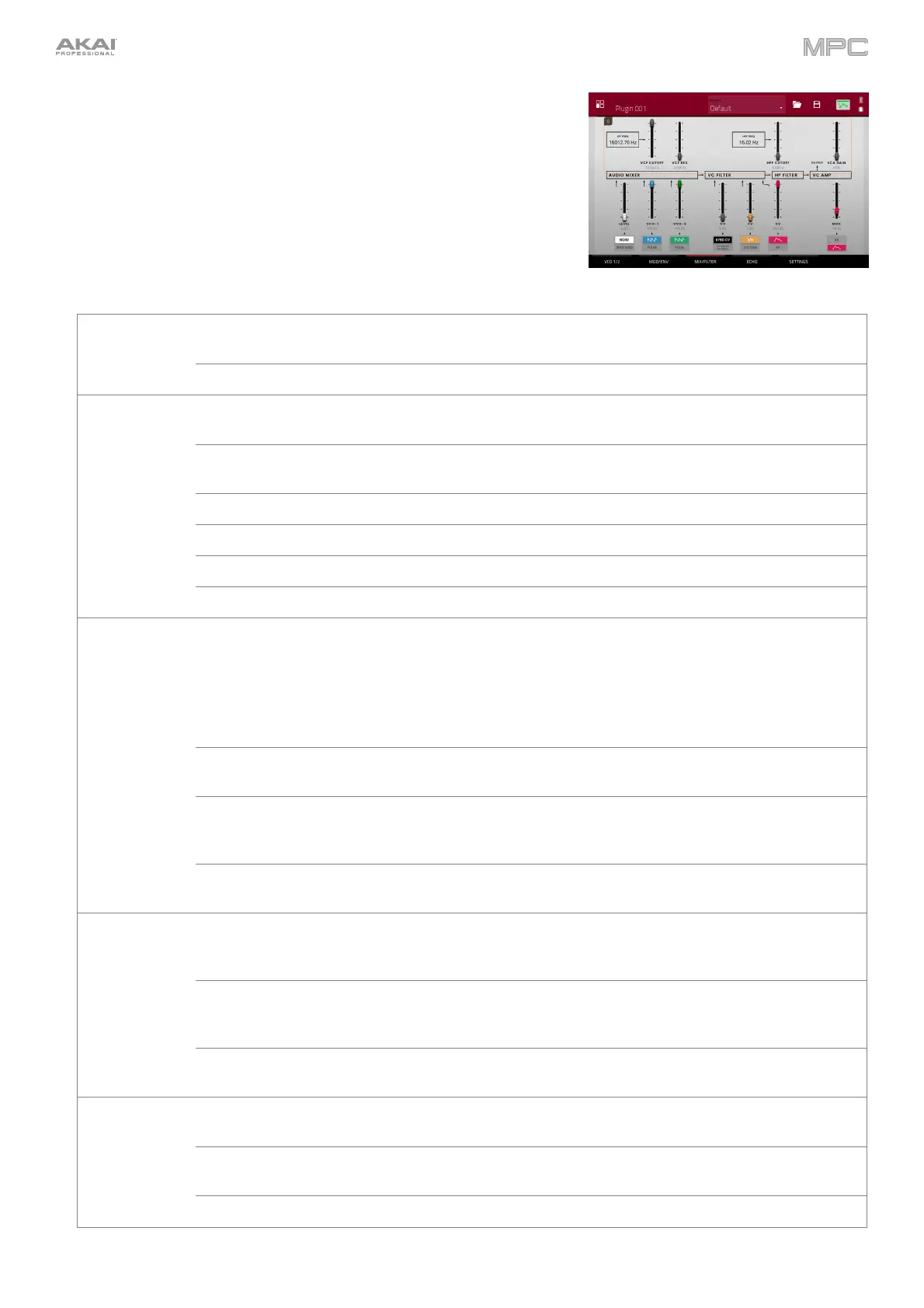

Mix/Filter
Use this tab to adjust the audio mixing and routing, as well as
adjust the voltage controlled filter, high-pass filter, and voltage
controlled amplitude.
Parameter Description Value Range
VCF VCF Cutoff Cutoff frequency of the filter. 0.680 – 10.645 V, or
16.02 - 16012.70 Hz
V
CF Res Resonance of the filter. 0.000 – 0.800 Q
Audio Mixer Noise/Ring
Mod
Select the noise generator or ring modulation
input for the mixer.
Noise, Ring Mod
Noise/Ring
Mod Level
Level of the noise generator or ring modulation
into the mixer.
0.0–100.0%
V
CO-1 Input Select the VCO-1 input type for the mixer. Saw, Pulse
VCO-1 Level Level of VCO-1 into the mixer. 0.0–100.0%
V
CO-2 Input Select the
V
CO-2 input type for the mixer. Saw, Pulse
VCO-2 Level Level of VCO-2 into the mixer. 0.0–100.0%
VC Filter VCO-1 Filter
Modulation
Source
Set the input source for VCO-1 filter
modulation.
Select KYBD CV to use key input as the
source.
Select S/H Mixer or Pedal to use the Sample
and Hold generator or optional external pedal.
KYBD CV, S/H Mixer or
Pedal
CV Modulation
Level
Level of VCO-1 filter modulation. 0.0–100.0%
VCO-2 Filter
Modulation
Source
Set the input source for VCO-2 filter
modulation.
S/H, LFO Sine
CV Modulation
Level
Level of VCO-2 filter modulation. 0.0–100.0%
HP Filter Filter
Modulation
Source
Select which envelope generator to use as a
filter modulation source.
ADSR, AR
CV Filter
Modulation
Level
Amount of envelope filter modulation applied to
the VC Filter.
0.0–100.0%
HPF Cutoff Cutoff frequency of the high-pass filter. 0.680 – 10.645 V, or
16.02 - 16012.70 Hz
VC Amp Mod Source Select which envelope generator to use as an
amplitude modulation source.
ADSR, AR
Mod Amount of envelope modulation applied to the
output signal.
0.0–100.0%
V
CA Gain
A
mount of
g
ain applied to the
V
C
A
mp. 0.0–100.0%
