General Setup and Operation
BD Alaris
TM
System with Guardrails
TM
Suite MX User Manual 19

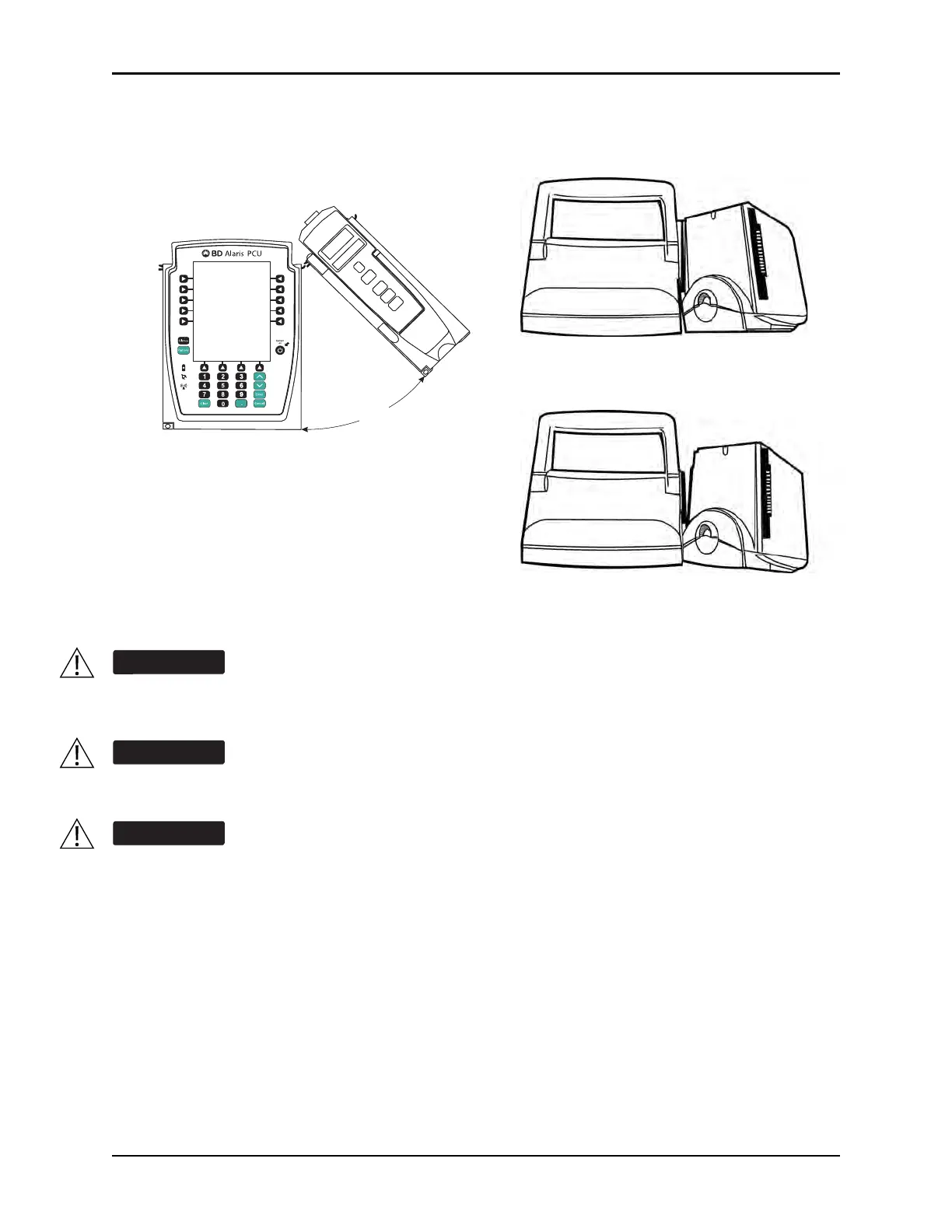

1. Position free module at a 45° angle, aligning IUI connectors.
2. Rotate free module down against PCU or attached module until release
latch snaps in place.
When properly secured/snapped, the
release latch
provides a very secure connection
between modules. If not properly latched, a module can be dislodged during operation.
Failure to perform these operations can result in improper instrument operations.
Failure to follow these instructions may result in potential hazards associated with damaged
IUI connectors.
Front View
Top View
IUI Connectors Not Aligned
Aligned IUI Connectors
Top View
