Chapter 4—Alaris™ PCA Module Model 8120
224 BD Alaris
TM
System with Guardrails
TM
Suite MX User Manual

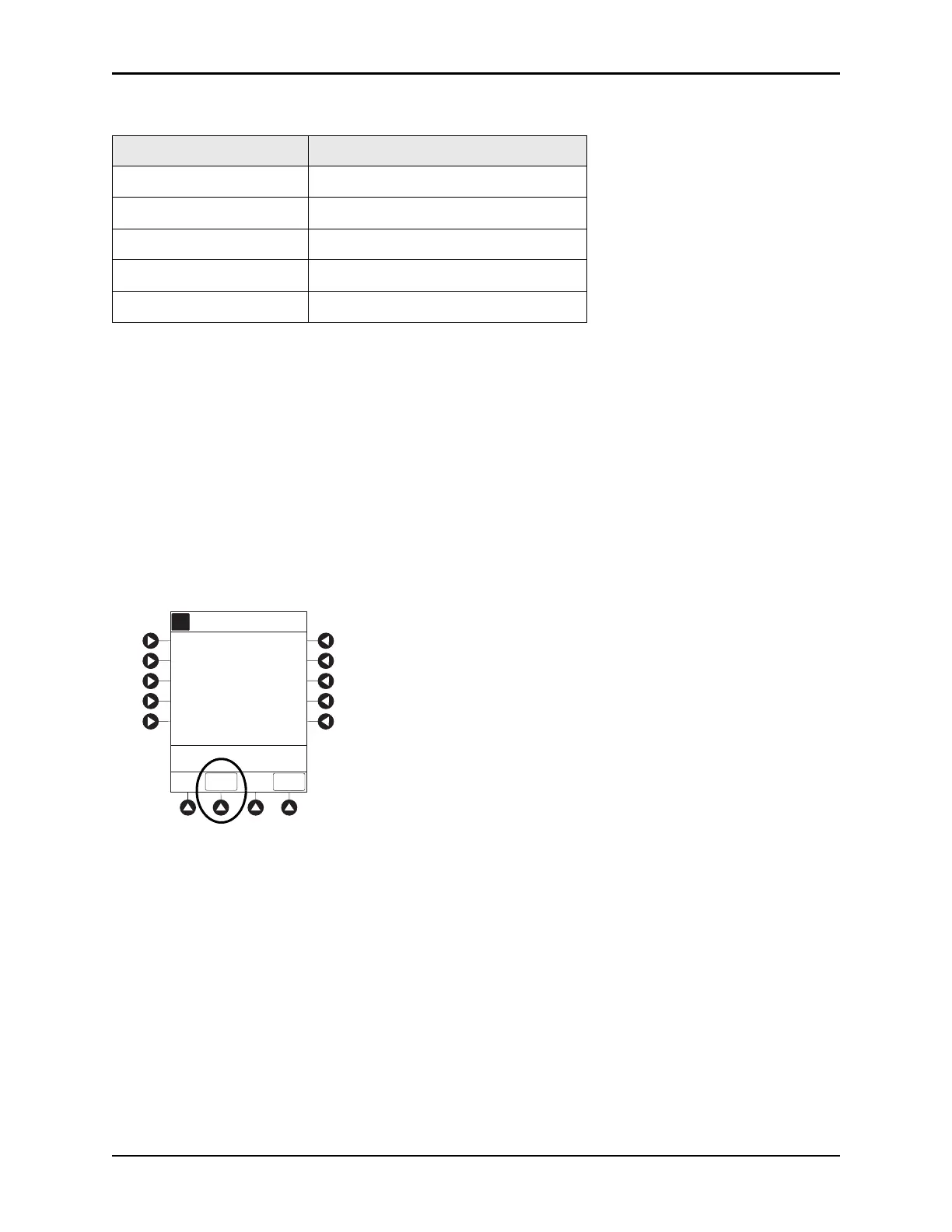

PCA Syringe Sizes and the Correlating 35% of the Syringe Capacity
NOTE:
BD® 50 mL Syringe model 309653 (formerly BD® 60 mL Syringe model 309653) markings no longer
extend beyond 50 mL, but the syringe dimensions remain the same and continue to be compatible with
both the Alaris™ syringe and Alaris™ PCA modules. Clinicians will continue to choose BD Plastipak
50/60 mL on the Alaris™ PC unit display. The PCA volume check for the BD® 50 mL Syringe is based
on a 60 mL capacity, therefore a 21 mL threshold applies.
Stopping a Loading, PCA, or Bolus Dose
1. Press CHANNEL SELECT key.
2. Press
STOP LOAD, STOP PCA, or STOP BOLUS soft key as applicable.
Available soft key and stop confirmation screen are
dependent on type of dose currently infusing and
current infusion mode.
3. To stop dose and resume current program, press Yes soft key.
Changing Programming Parameters During an Infusion
1. Press CHANNEL SELECT key.
2. Press
PROGRAM soft key.
3. Set key to program position, or if Auth
orization Code is enabled, enter
4-digit code.
Syringe Size 35% of Syringe Capacity
60mL
21mL
35mL 12.25mL
30mL 10.5mL
25mL 8.75mL
20mL 7mL
>Press START to Close
Summary
[Conc]: 1 mg/mL
A
START
STOP
LOAD
1 mg
Loading
Dose:
Summary
Morphine
To Next Page
