Getting started
BD Alaris
TM
System with Guardrails
TM
Suite MX User Manual 83

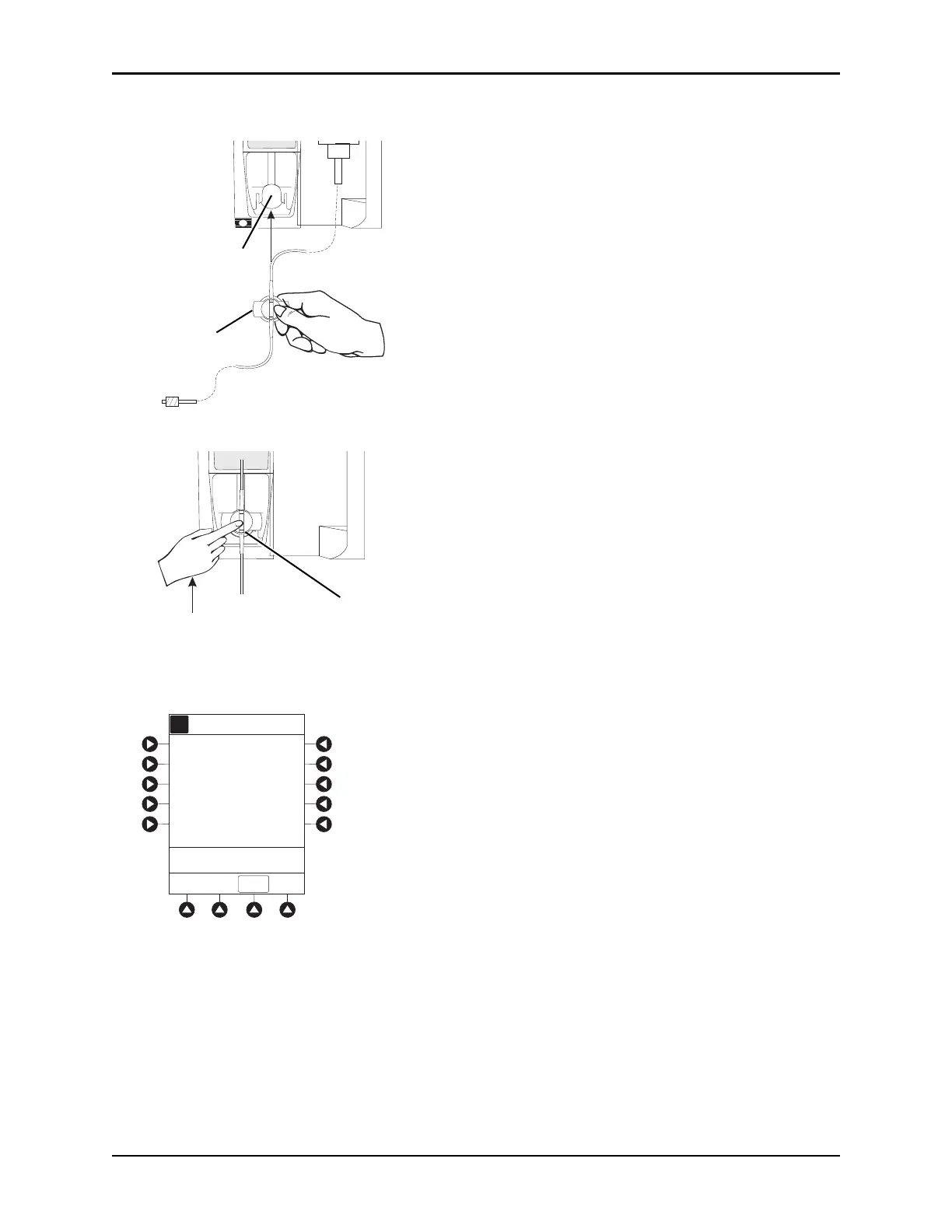

b. Gently slide pressure sensing disc up into slot in pressure sensing disc housing.
c. Apply firm upward pressure on pressure sensing disc (not tubing) until disc snaps into place.
12. To return to main screen, press the EXIT soft key.
If the
EXIT soft key is pressed before pressure sensing disc is reinstalled, a prompt to reinstall pressure
sensing disc is displayed.
Syringe Module
Slot in Pressure
Sensing Disc
Housing
Pressure
Sensing Disc
Patient Side
Fluid Side
Pressure Sensing Disc
Re-install Pressure Sensing
Disc.
>Press CONFIRM
CONFIRM
AA
A
