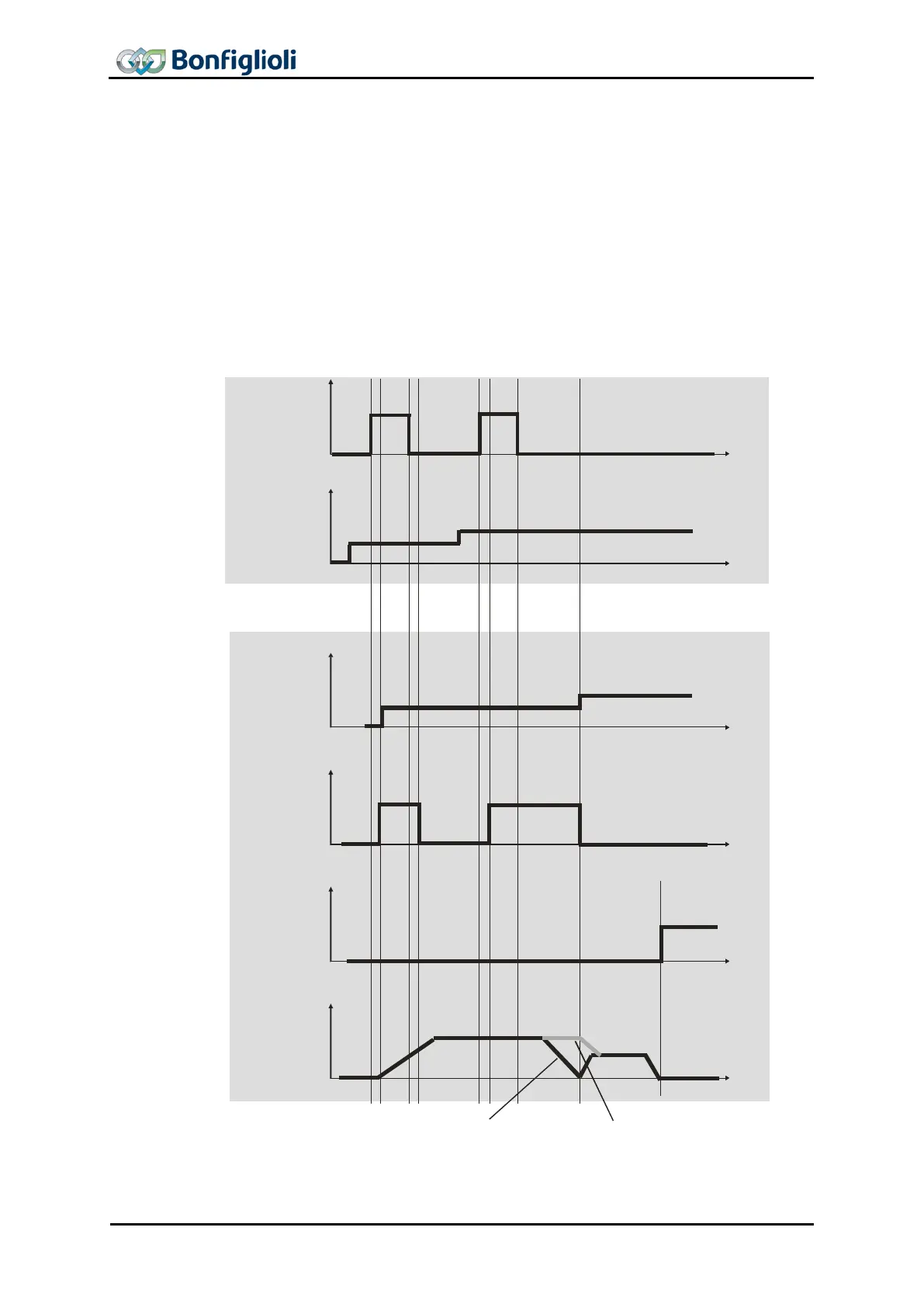

Example: set of set-points
control bit change on set-point = 0/1
control bit change set immediately = 0
While a Positioning is in progress, the set point is changed.
Change on set point = 0
Current target position will be stopped at. After the posi-
tion is reached, the new set point is taken over.
Change on set point = 1
The current target position will be driven to in current
speed
. As soon as the position is reached, the new set
point is taken over.
The grey line in segment "actual speed" shows the actual speed behavior if control bit
change of set- point is set (= 1).
t
t
t
t
t
t
actual
speed
new set point
(control bit 4)
target position
(set point)
current target
position
processed
set point
acknowledge
(status bit 12)
target reached
status bit 10
PLC
Drive
change on set point = 0
change on set point = 1
192 CM-CAN ACU 04/13
