Ericsson RX8000 - Figure 1.1 RX8200 Advanced Modular Receiver; RX8000 Standard Base Features; RX8200 Advanced Modular Receiver

Introduction
1-12
EN/LZT 790 0005 R7A
• RX8300
• RX8200
There are a number of variants of both the RX8200 and RX8300 with different
hardware and software capabilities based around these 2 hardware platforms, some
of these capabilities are shared between both platforms whereas some are unique
to the platform or model.
1.2.1.1 RX8000 Standard Base Features
• Full web server control via the 2 x 100 Mbps Ethernet control ports. This
contains support for system configuration, monitor and upgrade.
• 2-line x 40-character back-lit dot-matrix LCD user interface with pushbuttons for
Up, Down, Left, Right, Edit, and Save for front panel control.
• SNMP monitoring via the 2 x 100 Mbps Ethernet control ports.
• Status LED indicates input feed lock and general alarm conditions.
• Alarm handling via single configurable alarm relay and a date and time stamped
alarm log.
• 1 x ASI Transport Stream input with 75 Ω BNC connector.
• 2 x ASI Transport Stream outputs with 75 Ω BNC connectors.
• Composite output test patterns including multiburst and color bars
• Simple local and remote unit software upgrade in the field.
• Service (program) selection by Service Name or Service ID from a list of all the
available Services carried in the currently received input feed.
Note: Video decoding and some audio formats are not available as standard
within the RX8000 and must be enabled via feature license keys.
• 40 x preset service and component selections can be stored and recalled.
• Unit configurations can be saved, recalled and shared between units using
XML.
• Unit SNMP MIB can be downloaded from the unit.
1.2.2 RX8200 Advanced Modular Receiver

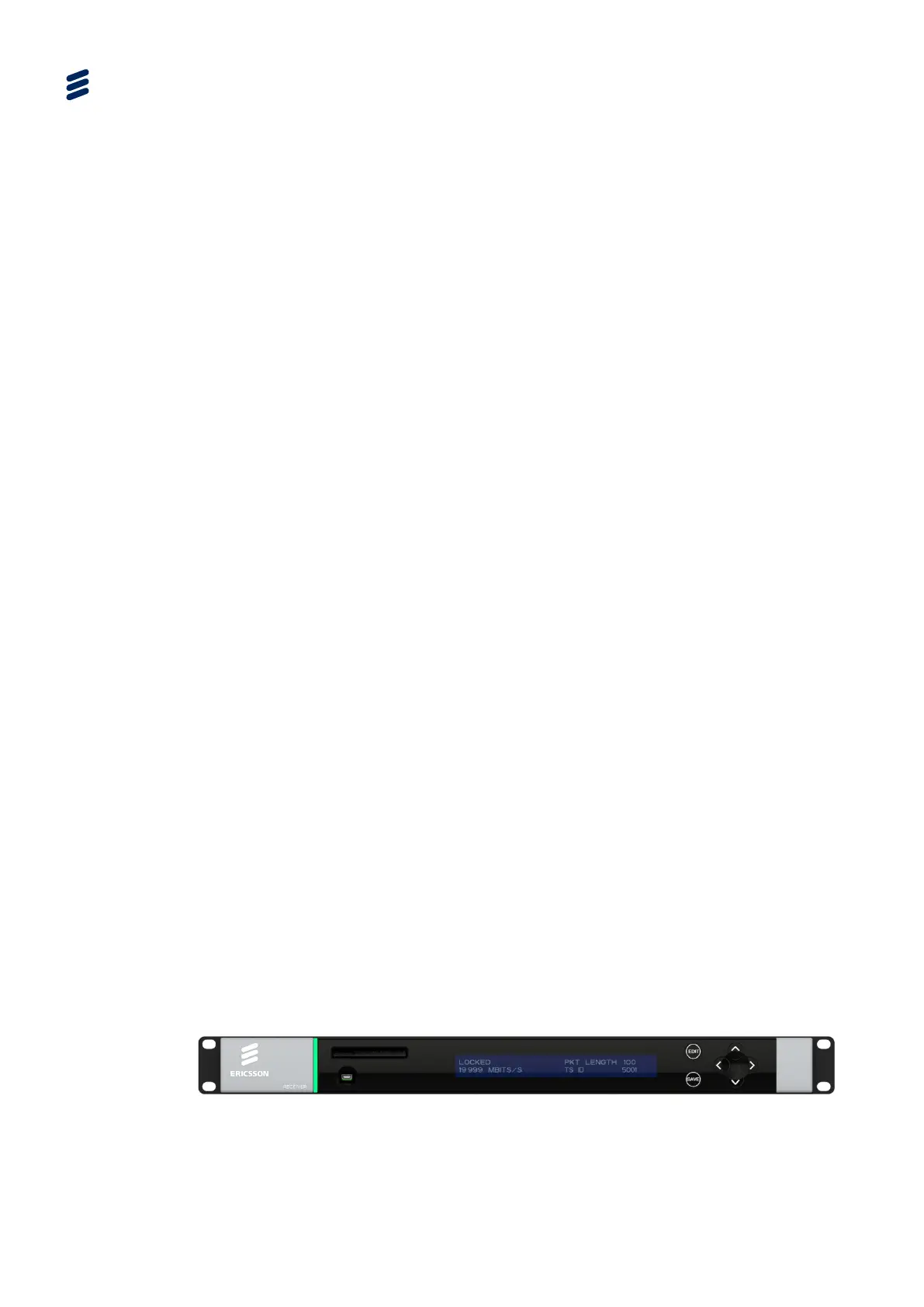

Figure 1.1 RX8200 Advanced Modular Receiver
